SMC G 1/8 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/8, 1MPa max. input
- RS-artikelnummer:
- 884-6700
- Tillv. art.nr:
- AR20-F01BG-B
- Tillverkare / varumärke:
- SMC
3 I lager för avsändande samma dag
Pris (ex. moms) Varje
409,00 kr
(exkl. moms)
511,25 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 4 | 409,00 kr |
| 5 - 9 | 396,36 kr |
| 10 + | 383,60 kr |
- RS-artikelnummer:
- 884-6700
- Tillv. art.nr:
- AR20-F01BG-B
- Tillverkare / varumärke:
- SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej RoHS
Produktdetaljer
SMC Air Regulator AR20-B - AR40-B
SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.
Note

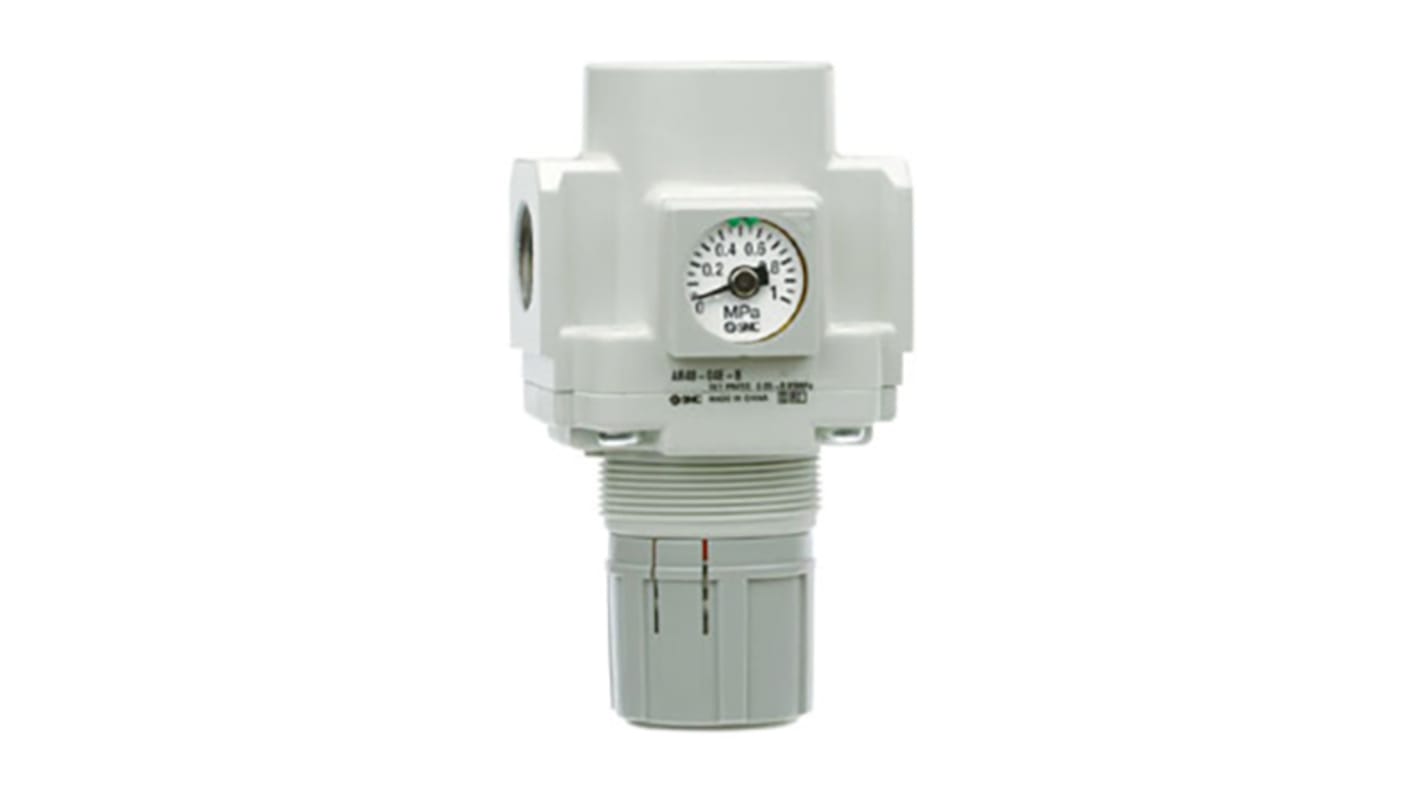

An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | G 1/8 |
| Maximum Outlet Pressure | 0.85MPa |
| Minimum Outlet Pressure | 0.05MPa |
| Maximum Input Pressure | 1MPa |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 1/8 |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | 20L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Overall Height | 94mm |
| Proof Pressure | 1.5MPa |
| Overall Width | 55mm |
| Pressure Gauge Port Thread Standard | Rc |
