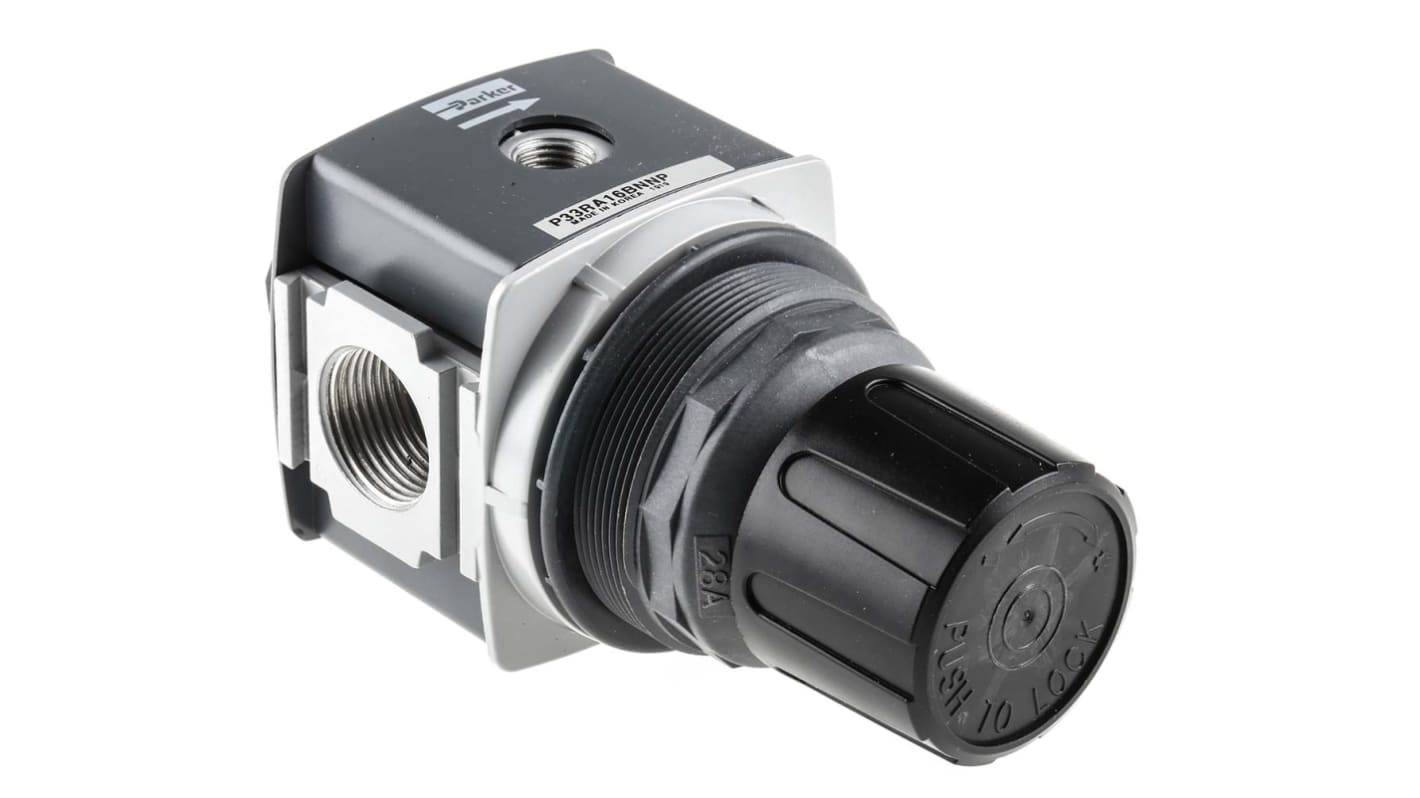

Parker Regulator G 3/4 212scfm, 0 8bar

  • RS-artikelnummer 757-9483
  • Tillv. art.nr P33RA16BNNP
  • Tillverkare / varumärke Parker
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Regulators

Integral 1/2 or 3/4 ports (BSPP & NPT)
Robust but lightweight aluminium construction
Secondary pressure ranges 2, 4, 8 & 17 bar
Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation
Relieving & Non-relieving types
Non-rising knob

P33 Series

Specifikationer
Attribute Value
Port Connection G 3/4
Minimum Outlet Pressure 0bar
Maximum Outlet Pressure 8bar
Maximum Input Pressure 20bar
Manufacturer Series P33
Port Connection Thread Size 3/4 in
Maximum Flow Rate 212SCFM
Integral Check Valve Yes
Port Connection Thread Standard G
Minimum Operating Temperature -25°C
Maximum Operating Temperature +65.5°C
9 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
583,68 kr
(exkl. moms)
729,60 kr
(inkl. moms)
Enheter
Per unit
1 - 4
583,68 kr
5 - 9
565,90 kr
10 +
545,54 kr
