Norgren G 1/4 Pneumatic Regulator - 0.07bar to 4bar, 1/4in, 10bar max. input

RS-artikelnummer:: 535-2384
Tillv. art.nr:: 11-818-100
Tillverkare / varumärke:: Norgren

Norgren G 1/4 Pneumatic Regulator - 0.07bar to 4bar, 1/4in, 10bar max. input

Mängdrabatt möjlig

Antal (1 enhet)*

2 756,43 kr

(exkl. moms)

3 445,54 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

6 enhet(er) är redo att levereras
Plus 6 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 15 enhet(er) från den 27 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	2 756,43 kr
5 - 9	2 673,66 kr
10 +	2 585,63 kr

*vägledande pris

RS-artikelnummer:: 535-2384
Tillv. art.nr:: 11-818-100
Tillverkare / varumärke:: Norgren

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Norgren
	Port Connection	G 1/4
	Maximum Outlet Pressure	4bar
	Minimum Outlet Pressure	0.07bar
	Maximum Input Pressure	10bar
	Manufacturer Series	11-818
	Pressure Gauge Port Size	G 1/4
	Port Connection Thread Size	1/4in
	Typical Flow Rate	240L/min
	Integral Check Valve	Without Check Valve
	Port Connection Thread Standard	G
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+70°C
	Overall Height	127mm
	Overall Length	54mm
	Overall Width	54mm
	Overall Dimensions	54 x 54 x 127mm

	Välj alla
	Brand Norgren
	Port Connection G 1/4
	Maximum Outlet Pressure 4bar
	Minimum Outlet Pressure 0.07bar
	Maximum Input Pressure 10bar
	Manufacturer Series 11-818
	Pressure Gauge Port Size G 1/4
	Port Connection Thread Size 1/4in
	Typical Flow Rate 240L/min
	Integral Check Valve Without Check Valve
	Port Connection Thread Standard G
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +70°C
	Overall Height 127mm
	Overall Length 54mm
	Overall Width 54mm
	Overall Dimensions 54 x 54 x 127mm

Datasheet

RoHS-status: Undantagen

COO (Country of Origin):: CZ

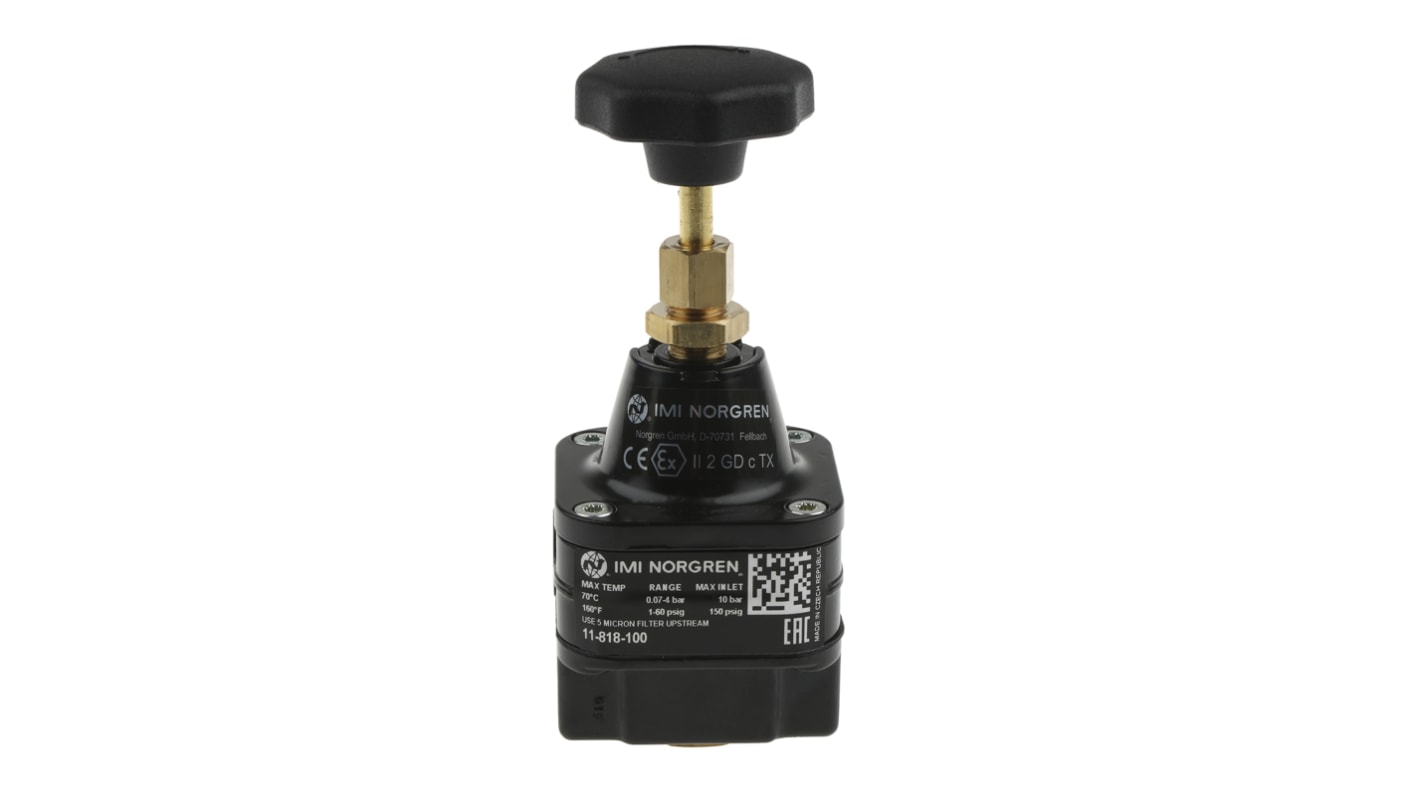

IMI Norgren Pneumatic Regulator, 240 L/min Flow Rate, G1/4 Thread - 11-818 Series - 11-818-100

This pneumatic regulator from IMI Norgren maintains the output air pressure in your pneumatic compressor. It automatically shuts off airflow when the set pressure is reached to keep it at the typical flow rate of 240 litres per minute. The standard G1/4 threaded connector means installation is quick and the unit remains firmly fixed in place, even if it experiences vibration. It has a maximum input pressure of 10 bar or 145psi (pounds per square inch) for use with medium-pressure systems.

Features & Benefits

• Body and bonnet are made from a zinc alloy to prevent corrosion wear
• Acetal resin adjusting knob to resist abrasion and impact damage for long-lasting use
• Nitrile rubber seals to help prevent leaks
• Regulates to an average 0.03% accuracy for precise operation
• Double-filtered air to protect the mechanism from contaminants

Applications

• Packaging machines
• Articulated robotics
• Beverage manufacturing
• Medical processing
• Dental equipment

Can this pneumatic regulator operate in widely varying temperatures?

Yes, this pneumatic regulator has an operating temperature range between 0°C and +70°C for use in demanding industrial conditions.
