Norgren G 3/4 Pneumatic Regulator - 0.2bar to 8bar, 3/4 in, 28bar max. input, 20AG

RS-artikelnummer:: 218-0144
Tillv. art.nr:: 20AG-X6G-PH100
Tillverkare / varumärke:: Norgren

Norgren G 3/4 Pneumatic Regulator - 0.2bar to 8bar, 3/4 in, 28bar max. input, 20AG

Antal (1 enhet)*

16 050,94 kr

(exkl. moms)

20 063,68 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

1 enhet(er) är redo att levereras
Plus 1 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	16 050,94 kr

*vägledande pris

RS-artikelnummer:: 218-0144
Tillv. art.nr:: 20AG-X6G-PH100
Tillverkare / varumärke:: Norgren

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Norgren
	Port Connection	G 3/4
	Maximum Outlet Pressure	8bar
	Minimum Outlet Pressure	0.2bar
	Maximum Input Pressure	28bar
	Manufacturer Series	20AG
	Pressure Gauge Port Size	G 3/4
	Port Connection Thread Size	3/4 in
	Maximum Flow Rate	4800L/min
	Port Connection Thread Standard	G
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+80°C
	Model Number p	20AG
	Pressure Gauge Port Thread Standard	G

	Välj alla
	Brand Norgren
	Port Connection G 3/4
	Maximum Outlet Pressure 8bar
	Minimum Outlet Pressure 0.2bar
	Maximum Input Pressure 28bar
	Manufacturer Series 20AG
	Pressure Gauge Port Size G 3/4
	Port Connection Thread Size 3/4 in
	Maximum Flow Rate 4800L/min
	Port Connection Thread Standard G
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +80°C
	Model Number p 20AG
	Pressure Gauge Port Thread Standard G

RoHS-status: Undantagen

COO (Country of Origin):: MX

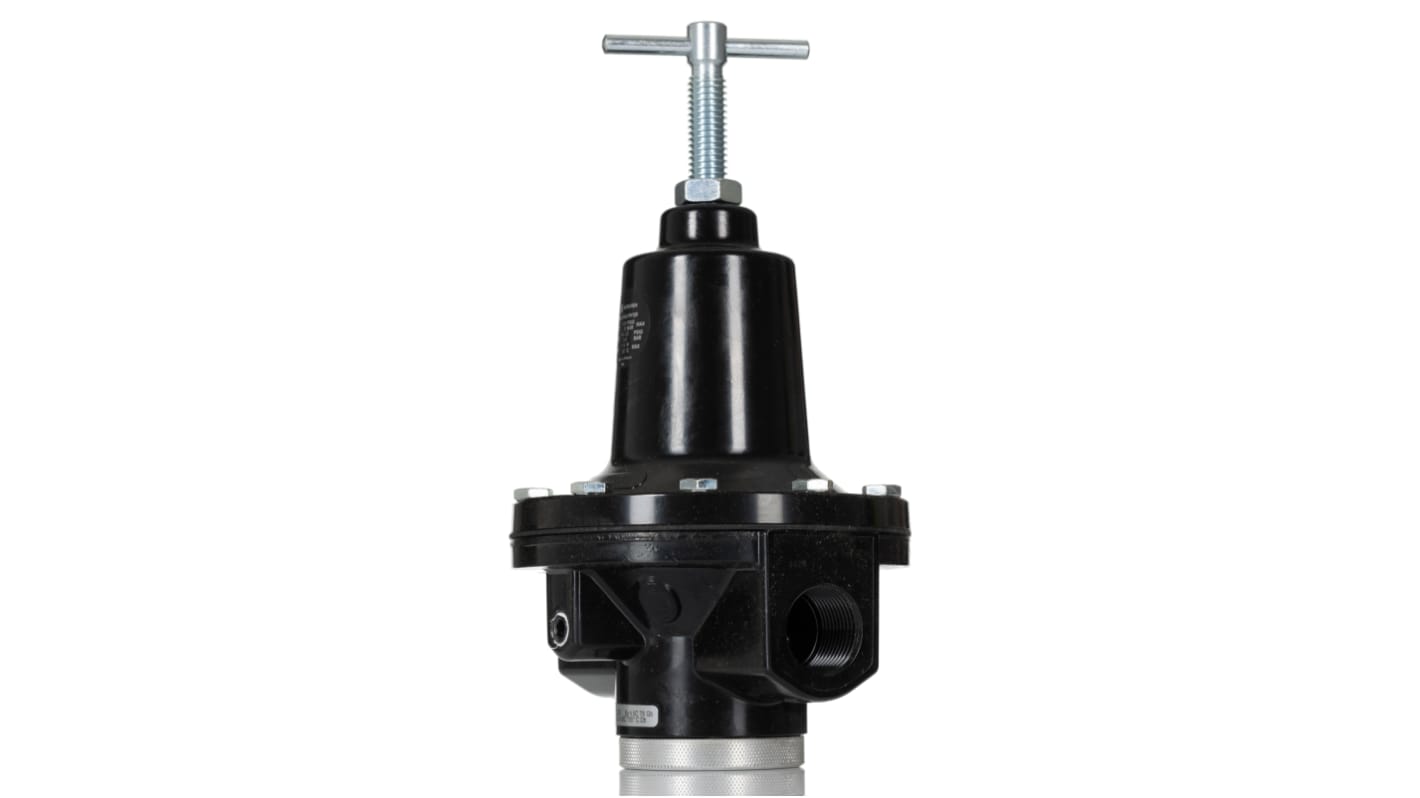

IMI Norgren Pneumatic Regulator, Relieving Type, -20°C to +80°C Operating Temperature Range - 20AG Series - 20AG-X6G-PH100

Maintain balance in your air-operated machinery with this pneumatic regulator from IMI Norgren. It steps in to cut air input when a preset pressure is reached, so you can be sure media isn't wasted and your system runs efficiently. As the unit handles pressures up to 28 bar, there's no doubt it withstands the rigours of a high-flow system. You can set the output between 0.2 and 8 bar for flexibility in your machine operation. A built-in T-bar handle gives you free rein to tweak the output pressure settings as needed.

Features & Benefits

• Tough zinc alloy housing resists impacts and wear
• Threaded G3/4 port connection for convenient installation
• Durable operation in harsh conditions with ambient temperature range of -20°C to +80°C
• Adjusting screw is steel-plated for resistance to corrosion

Applications

• Medical technology
• Printing presses
• Agricultural equipment
• Conveyor systems

What's the difference between a relieving and a non-relieving pneumatic regulator?

A relieving pneumatic regulator like this one works by releasing excess pressure into the atmosphere. A non-relieving regulator, on the other hand, locks down the system when the output pressure reaches the setpoint.
