RS PRO G 1/2 Regulator -, 1/2in, 8bar max. input

Se alla Pneumatic Regulators

Antal (1 enhet)*

860,47 kr

(exkl. moms)

1 075,59 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 18 enhet(er) är redo att levereras
  • Plus 6 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +860,47 kr

*vägledande pris

RS-artikelnummer:
176-1725
Distrelec artikelnummer:
304-04-055
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Port Connection

G 1/2

Maximum Input Pressure

8bar

Pressure Gauge Port Size

1/2 in

Port Connection Thread Size

1/2in

Pressure Gauge Port Thread Size

1/8in

Maximum Flow Rate

3200NL/min

Port Connection Thread Standard

G

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+50°C

Pressure Gauge Port Thread Standard

G

Overall Width

59mm

Overall Length

89mm

Overall Height

121mm

Overall Dimensions

89 x 59 x 121mm

COO (Country of Origin):
IT

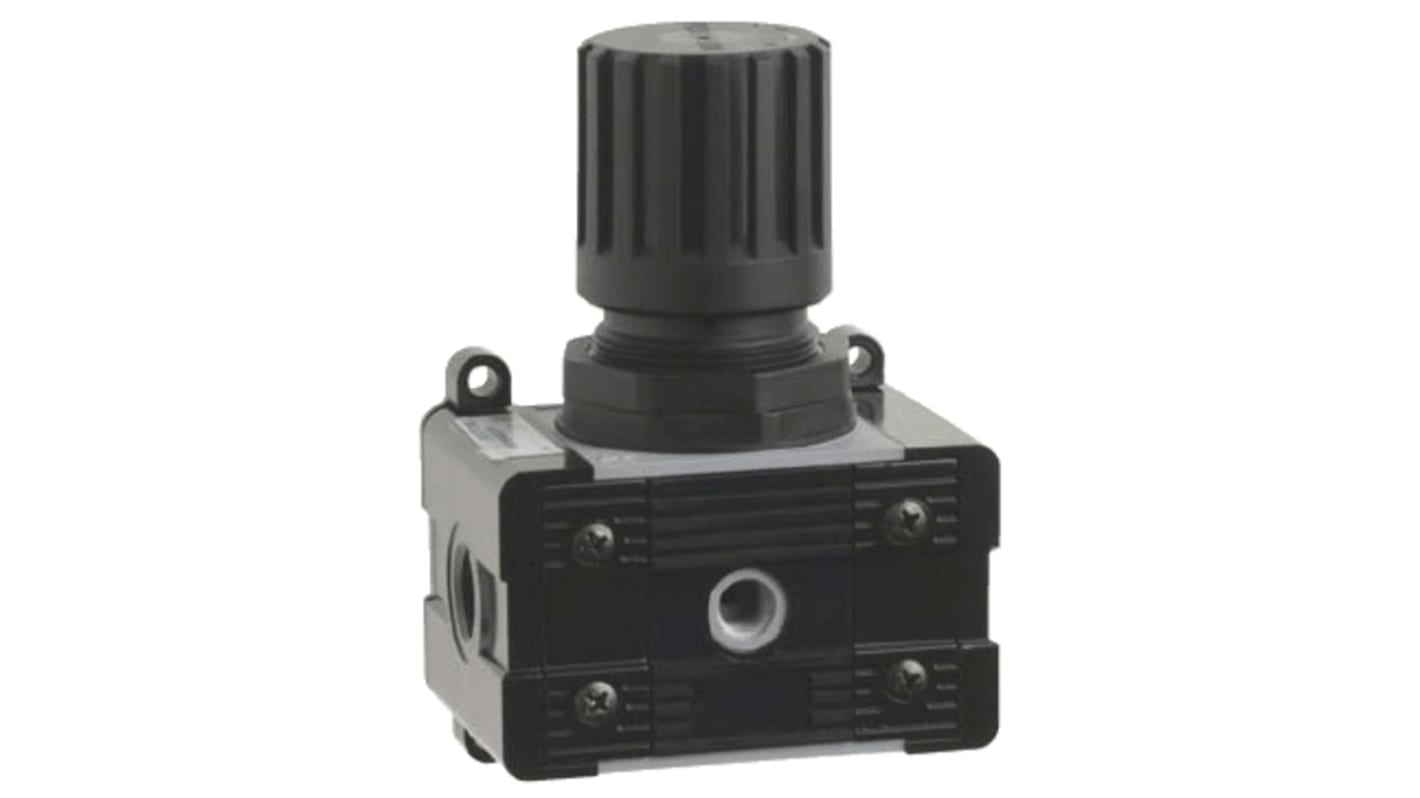

RS PRO G 1/2 Pneumatic Regulator


When you need to keep a steady flow of air or gas in your pneumatic equipment, choose this RS PRO pressure regulator. It reduces the flow of air or gas when it surges, keeping the pressure at a constant level.
This regulator is suitable for use with several types of gas media, as it's entirely free of silicone and won't degrade or cause blockages. It's also fitted with coalescing filters, which prevent debris and other impurities from getting into the airflow and causing disruptions and damage.
This product can be combined with other RS PRO pneumatic components as part of a modular system. The air distributors and connection plates allow it to work with other units to create a custom pneumatic system that's suited to your specific needs.

Features and Benefits


• Maximum flow rate of 3200 NL/min
• Maximum input pressure of 8 bar
• Operating temperature range of -10°C to +50°C
• Overall dimensions of 89 (length) x 59 (width) x 121 mm (height)
• G 1/2 port connection
• Port connection thread size of 1/2 in
• Pressure gauge port size of 1/2 in
• Pressure gauge port thread size of 1/8 in
