Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4in, 14bar max. input, 529419

Se alla Pneumatic Regulators
Mängdrabatt möjlig

Antal (1 enhet)*

504,45 kr

(exkl. moms)

630,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 47 enhet(er) är redo att levereras
  • Plus 207 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 27 enhet(er) från den 09 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4504,45 kr
5 - 9484,29 kr
10 +464,13 kr

*vägledande pris

RS-artikelnummer:
121-5660
Tillv. art.nr:
MS4-LR-1/4-D7-AS
Tillverkare / varumärke:
Festo
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Festo

Port Connection

G 1/4

Maximum Outlet Pressure

12bar

Minimum Outlet Pressure

0.5bar

Maximum Input Pressure

14bar

Manufacturer Series

MS-LR

Pressure Gauge Port Size

G 1/4

Port Connection Thread Size

1/4in

Pressure Gauge Port Thread Size

1/4in

Maximum Flow Rate

7500L/min

Typical Flow Rate

1700L/min

Port Connection Thread Standard

G

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+60°C

Overall Length

40mm

Overall Height

117.5mm

Overall Dimensions

40 x 57 x 117.5mm

Model Number p

529419

Pressure Gauge Port Thread Standard

G

Overall Width

57mm

COO (Country of Origin):
HU

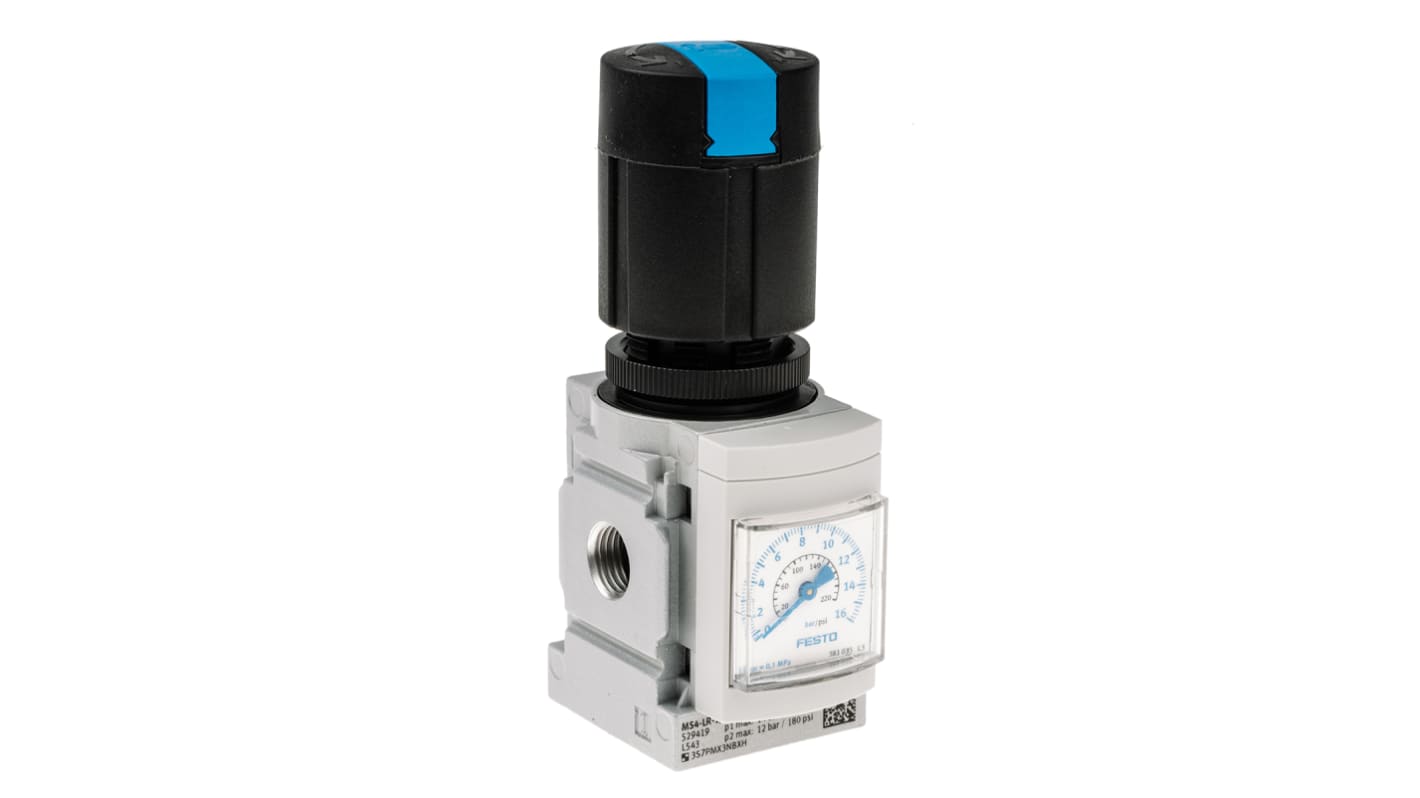

Festo Pneumatic Regulator, G1/4 Port Connection, 14 Bar Maximum Input Pressure - MS4-LR-1/4-D7-AS


Keep pressure levels consistent in your pneumatic system with this regulator from Festo. The device monitors the system for variations and shuts the airflow on and off as needed to keep the pressure at the preset level. It has a maximum input pressure level of 14 bar and a maximum outlet pressure of 12 bar, so it can be used for both taking in or expelling air. With a standard nominal flow rate of 1700L/min (litres per minute), the unit can withstand high-pressure use.

• G1/4 threaded connector for quick installation

• PA and POM (polyoxymethylene) control panel with high-tensile strength for use in heavy-duty conditions

• Die-cast aluminium housing material resists corrosion and withstands use in damp conditions

• NBR (nitrile rubber) insulates the regulator against leaks

• Operating temperature range between -10°C and +60°C for use in challenging industrial environments

Applications


• Automotive industry

• Manufacturing lines

• Articulated robotics

• Agricultural machinery

Can this pneumatic regulator be locked in place?


Yes, this pressure regulator has a rotary knob with a lock to keep it fixed in place, so you can be sure it's secure, even with vibration.
