- RS-artikelnummer:
- 136-6700
- Tillv. art.nr:
- DSNU-25-320-PPV-A
- Tillverkare / varumärke:
- Festo
3 I lager för avsändande samma dag
10 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
841,07 kr
(exkl. moms)
1 051,34 kr
(inkl. moms)
Enheter | Per unit |
1 + | 841,07 kr |
- RS-artikelnummer:
- 136-6700
- Tillv. art.nr:
- DSNU-25-320-PPV-A
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

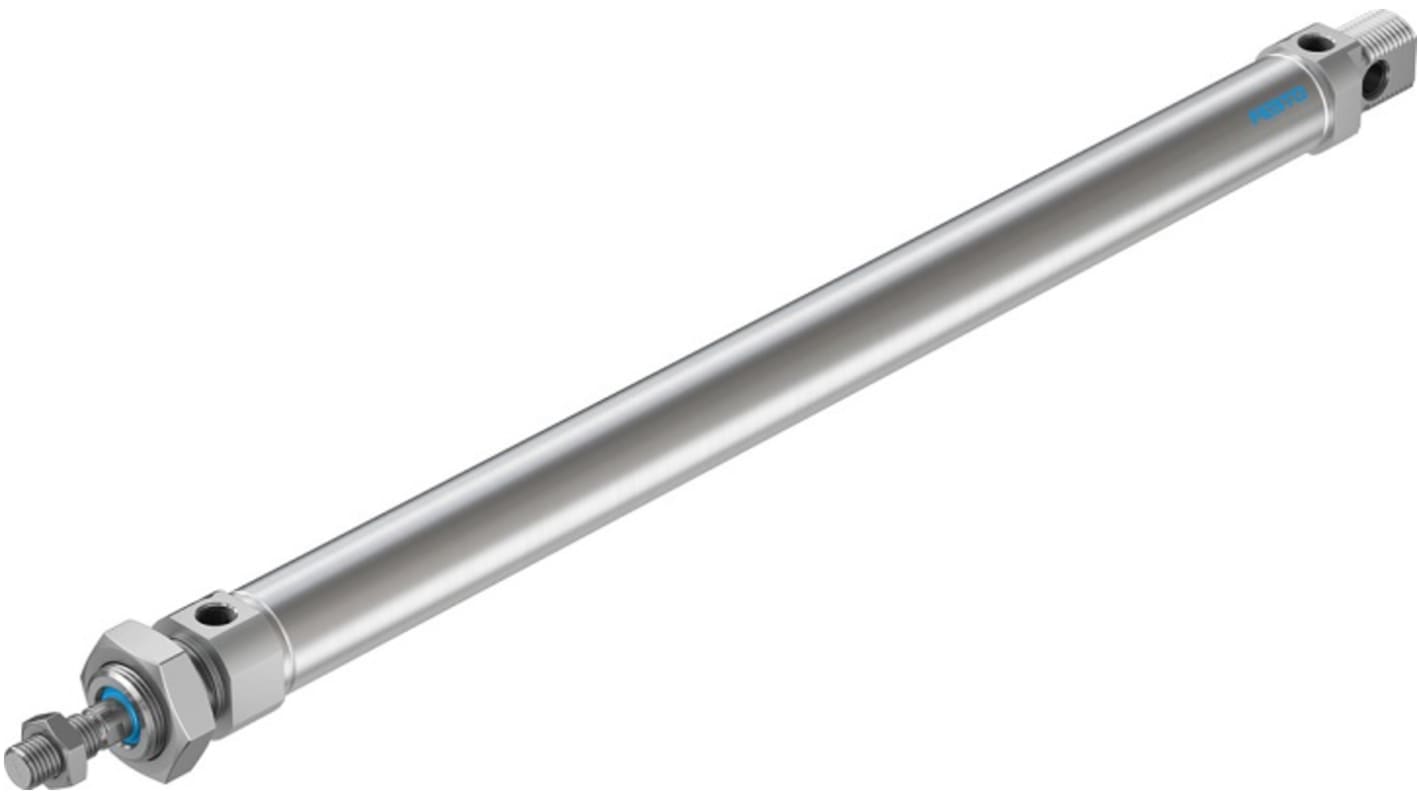

Festo Pneumatic Cylinder, Adjustable Cushioning, M10x1.25 Piston Rod Thread - DSNU-25-320-PPV-A
Smooth the way for intense material handling tasks with this pneumatic cylinder from Festo. It pushes with forces up to 294.5N at 6 bar pressure to keep large loads moving freely through your system. Thanks to its adjustable cushioning, the device adapts to suit its application, ensuring minimal disruption from vibrations. Damp work environments are no match for the corrosion-resistant aluminium alloy housing. As the cylinder connects using an M10x1.25 piston rod thread, hooking it up to standard machinery is a breeze.
Features & Benefits
Slim 27mm diameter to fit into compact setups
Supports both clean and lubricated air supplies for versatility
Delivers strokes up to 320mm, for precision in larger-scale applications
Works with a proximity sensor (such as 121-5837) to provide handy position monitoring
Built-in NBR rings form an airtight seal so you maintain a stable system pressure
Supports both clean and lubricated air supplies for versatility
Delivers strokes up to 320mm, for precision in larger-scale applications
Works with a proximity sensor (such as 121-5837) to provide handy position monitoring
Built-in NBR rings form an airtight seal so you maintain a stable system pressure
Applications
Semiconductor manufacturing
Recycling centres
Automotive industry
Recycling centres
Automotive industry
How does a double-acting pneumatic cylinder work?
A double-acting cylinder like this one has two inlets that let it take in air to push and pull the piston back and forth. By controlling the amount of air the device uses, you can directly measure out its strokes to achieve close process management.
Specifikationer
Attribute | Value |
---|---|
Stroke | 320mm |
Bore | 25mm |
Action | Double |
Manufacturer Series | DSNU |
Length | 461.5mm |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Air |
Dimensions | 27 x 461.5mm |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6432 |
Diameter | 27mm |
Maximum Operating Temperature | +80°C |
Weight | 590g |
Minimum Operating Temperature | -20°C |
Stroke Interval Weight | 11 g (At 10 mm Stroke) |
Model Number p | 34721 |
VDMA Standard | VDMA 24364-B1/B2-L |
Test Weight | 238 g (At 0 mm Stroke) |
