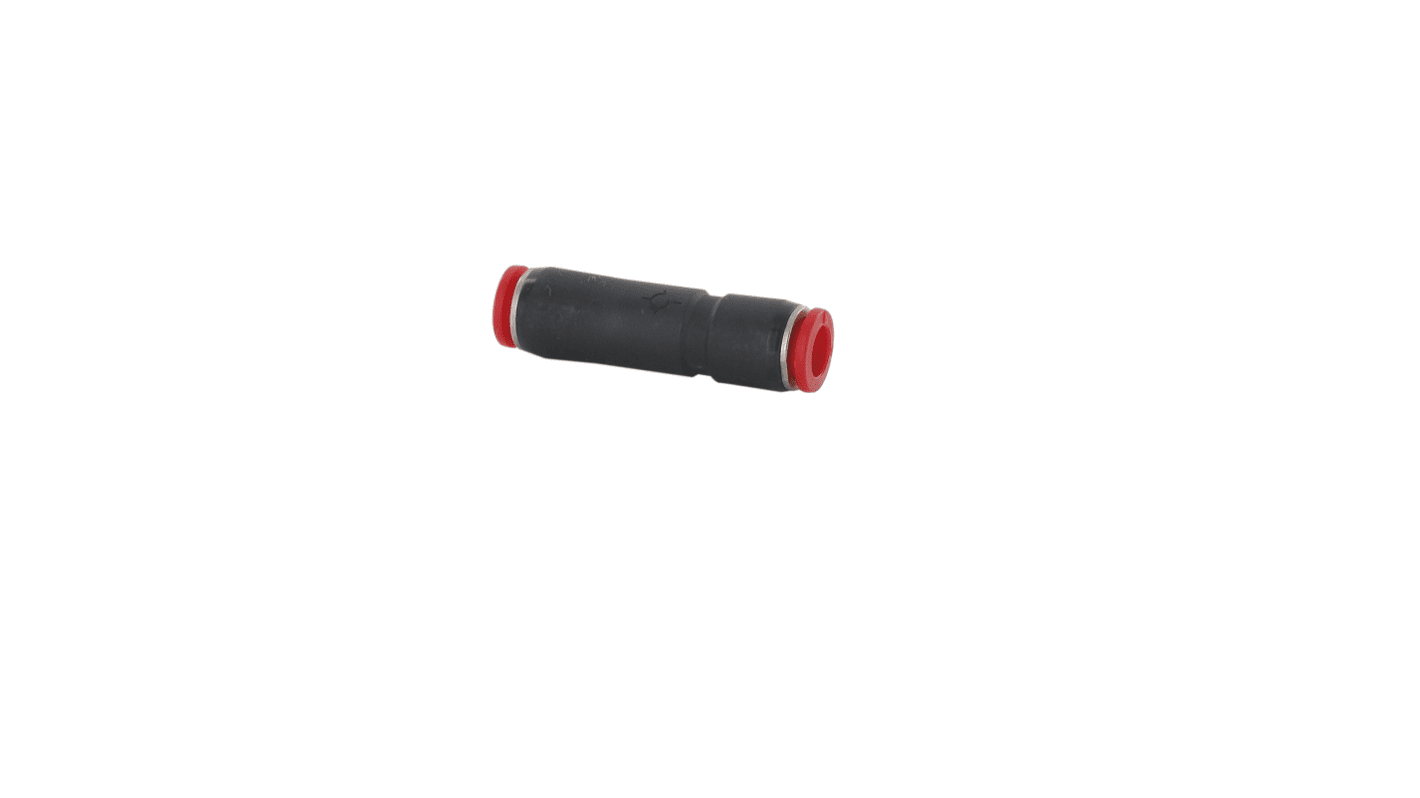

Norgren C00GL Non Return Valve, 8mm Tube Inlet, 14.5mm Tube Outlet, 0.2 → 10bar
- RS-artikelnummer:
- 218-0226
- Tillv. art.nr:
- C00GL0800
- Tillverkare / varumärke:
- Norgren
1 I lager för avsändande samma dag
Pris (ex. moms) Varje
269,12 kr
(exkl. moms)
336,40 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 269,12 kr |
| 5 - 9 | 263,65 kr |
| 10 + | 258,40 kr |
- RS-artikelnummer:
- 218-0226
- Tillv. art.nr:
- C00GL0800
- Tillverkare / varumärke:
- Norgren
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- KR
Produktdetaljer
The IMI Norgren non-return valve has high flow performance and used nickel plated brass component provide corrosion and contamination resistance and an extended life. Its pre applied thread sealant on all taper thread and recessed captive O-ring on parall
Ambient/Media temperature 0°C to +60 °C
Operating pressure of 0. 2 to 10 bar
Tube size 4 mm to 12 mm
Operating pressure of 0. 2 to 10 bar
Tube size 4 mm to 12 mm
Specifikationer
Attribute | Value |
|---|---|
| Tube Inlet Connection | 8mm |
| Inlet Connection Type | Tube |
| Outlet Connection Type | Tube |
| Tube Outlet Connection | 14.5mm |
| Manufacturer Series | C00GL |
| Operating Pressure Range | 0.2 → 10bar |
