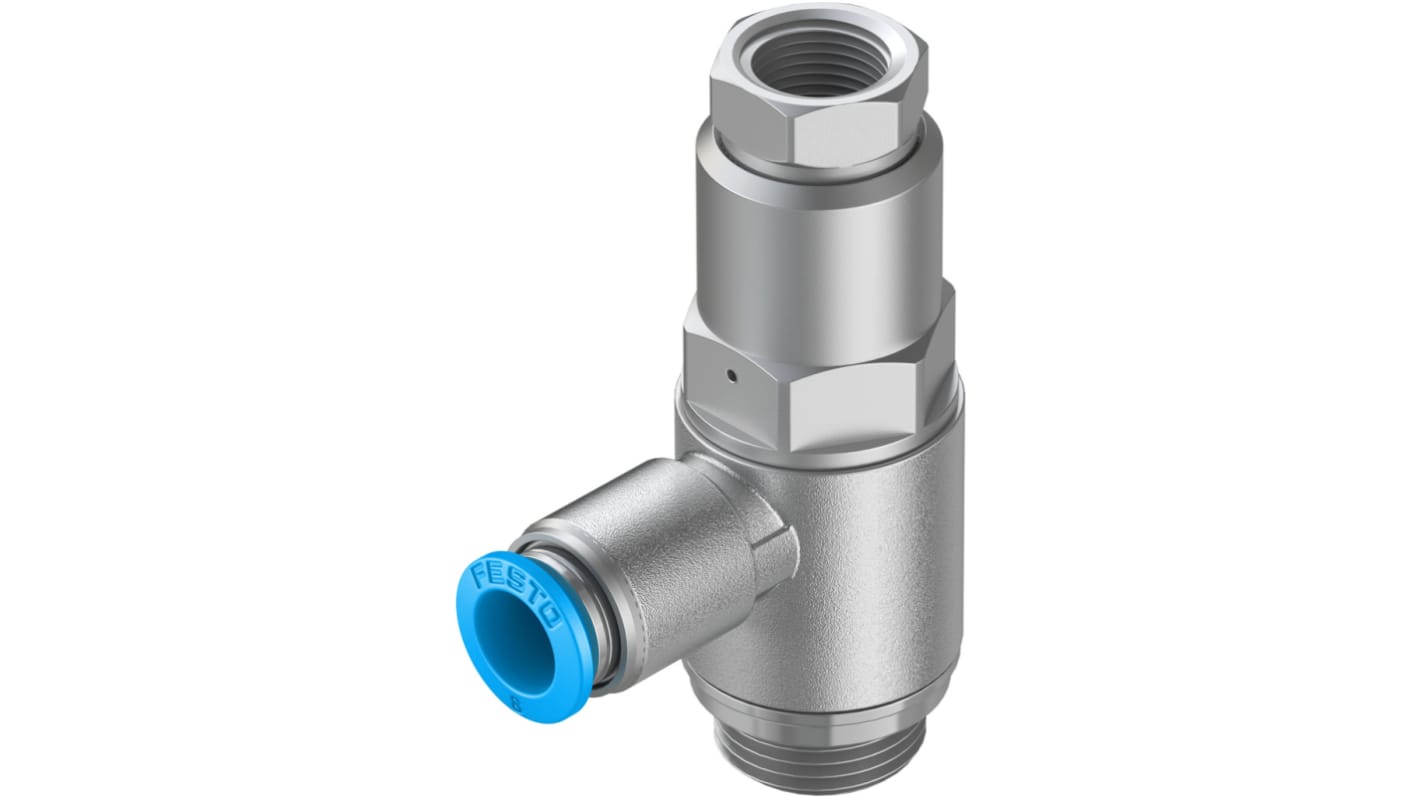

Festo HGL Non Return Valve, 8mm Tube Inlet, G 3/8 Male Outlet, 10bar

RS-artikelnummer:: 202-3592
Tillv. art.nr:: HGL-3/8-QS-8
Tillverkare / varumärke:: Festo

Festo HGL Non Return Valve, 8mm Tube Inlet, G 3/8 Male Outlet, 10bar

Antal (1 enhet)*

735,73 kr

(exkl. moms)

919,66 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

2 enhet(er) är redo att levereras
Plus 20 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	735,73 kr

*vägledande pris

RS-artikelnummer:: 202-3592
Tillv. art.nr:: HGL-3/8-QS-8
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Tube Inlet Connection	8mm
	Inlet Connection Type	Tube
	Outlet Connection Type	Threaded
	Manufacturer Series	HGL
	Threaded Outlet Connection	G 3/8 Male
	Minimum Operating Pressure	0.5bar
	Maximum Operating Pressure	10 bar
	Maximum Operating Temperature	'+60°C
	Minimum Operating Temperature	0°C
	Operating Pressure Range	10bar
	Standards Met	RoHS Compliant

	Välj alla
	Brand Festo
	Tube Inlet Connection 8mm
	Inlet Connection Type Tube
	Outlet Connection Type Threaded
	Manufacturer Series HGL
	Threaded Outlet Connection G 3/8 Male
	Minimum Operating Pressure 0.5bar
	Maximum Operating Pressure 10 bar
	Maximum Operating Temperature '+60°C
	Minimum Operating Temperature 0°C
	Operating Pressure Range 10bar
	Standards Met RoHS Compliant

COO (Country of Origin):: IN

Festo Non Return Valve, 12.5 Nm Nominal Torque, 0.5 to 10 Bar Operating Pressure - HGL-3/8-QS-8, Numeric Part Number: 530043

This innovative piloted check valve features a maximum operating pressure of 10 bar, ensuring efficient performance in pneumatic systems. The unique pilot air port, with specifications of G1/4, ensures optimal control of the valve's operation.

Features & Benefits

• Piloted non-return function prevents backflow
• Suitable for compressed air per ISO 8573-1:2010 standards
• Wide operating pressure range for flexibility in tasks
• Optional mounting position aids installation convenience
• RoHS-compliant materials ensure environmental safety

Applications

• Used for controlling fluid flow in pneumatic systems
• Ideal for applications requiring non-return functionality
• Compatible with various pneumatic connections for adaptability

Is this valve suitable for lubricated operation?

Yes, lubricated operation is possible and recommended.

Can it operate under low temperatures?

Yes, it functions efficiently in temperatures from -10°C to 60°C.
