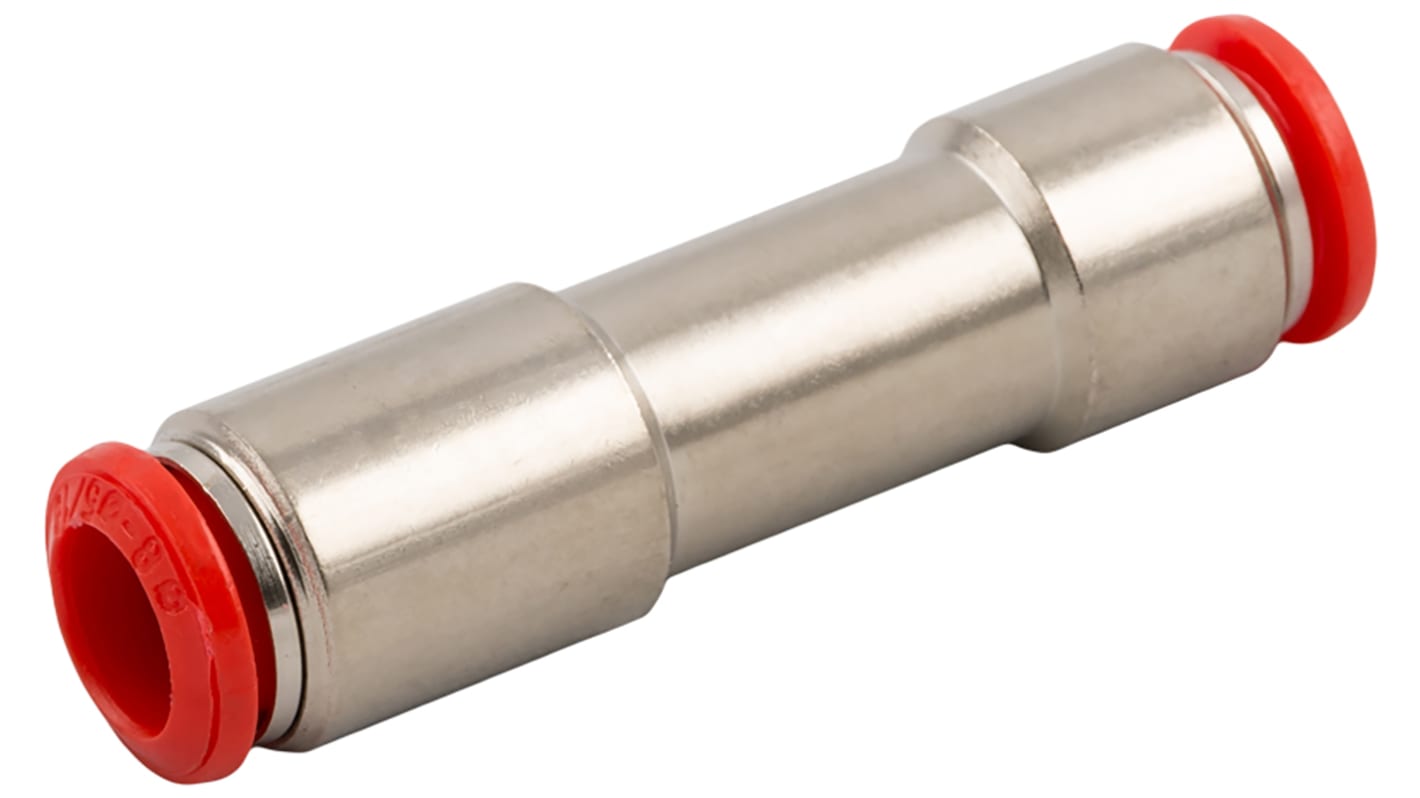

RS PRO Non Return Valve, Push In 8mm Tube Inlet, Push In 8mm Tube Outlet, 2 to 8bar
- RS-artikelnummer:
- 176-2272
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-05-14
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
181,288 kr
(exkl. moms)
226,61 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 + | 181,288 kr | 1 812,88 kr |
- RS-artikelnummer:
- 176-2272
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer
The function fittings of RS Pro have been designed to suit a specific use. With a large variety of materials (brass, stainless steel, technopolymer, aluminium) they respond to the most extreme demand of pneumatic: flow controls, pressure regulators, unidirectional valves, block valves, check valves, quick exhaust valves,logic elements, slide valves, etc.
Main advantages:
Compact and Sharp in Pneumatic
Limited Pressure Drop
Easy to handle
Function Repeatability
Different Materials
Silicon Free
Applications:
Pneumatic Automation
Automotive process
Food & Beverage
Fluidtechnology
Vacuum
Compact and Sharp in Pneumatic
Limited Pressure Drop
Easy to handle
Function Repeatability
Different Materials
Silicon Free
Applications:
Pneumatic Automation
Automotive process
Food & Beverage
Fluidtechnology
Vacuum
Specifikationer
Attribute | Value |
|---|---|
| Tube Inlet Connection | Push In 8mm |
| Tube Outlet Connection | Push In 8mm |
| Minimum Operating Pressure | 2bar |
| Maximum Operating Pressure | 8 bar |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Operating Pressure Range | 2 to 8bar |
| Body Material | Brass |
