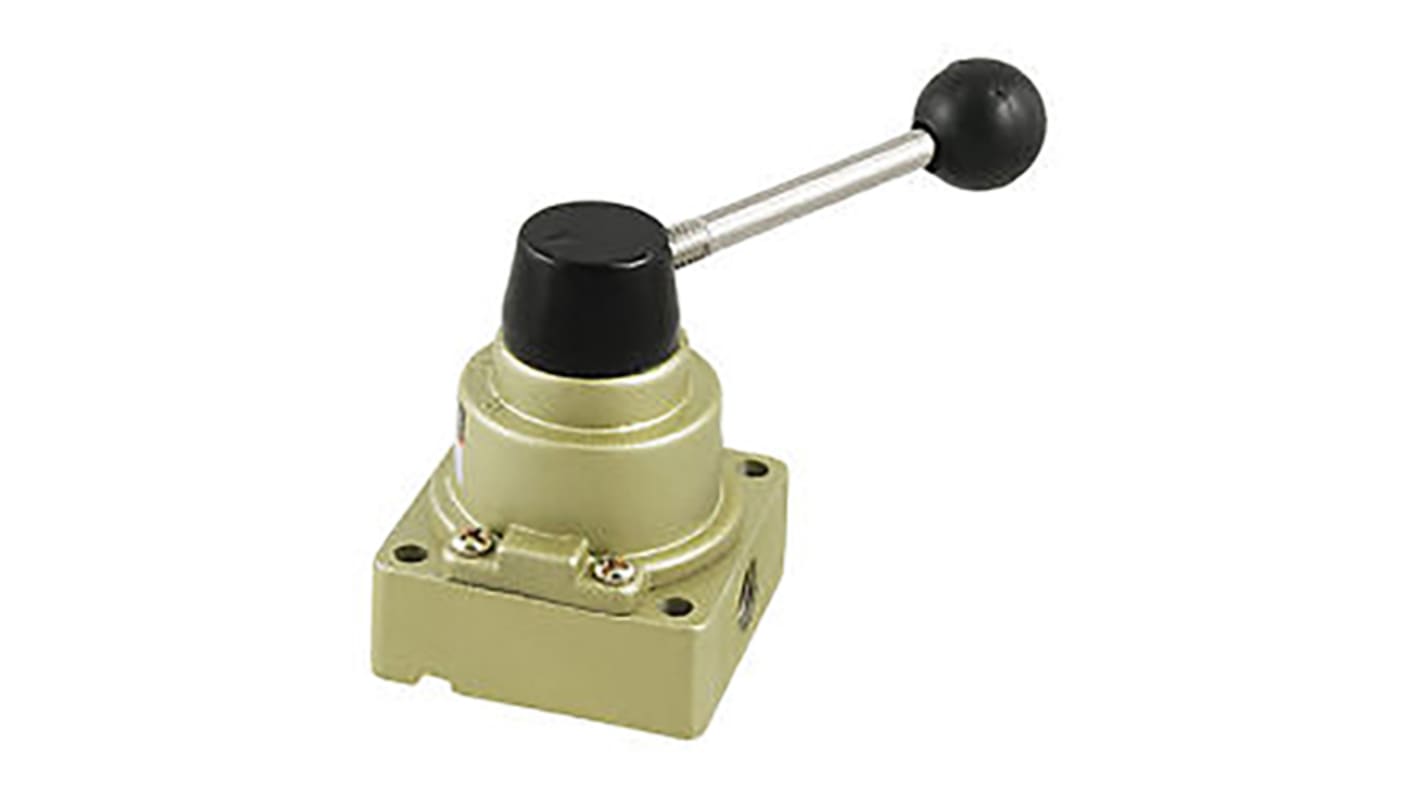

SMC Lever 4/3 Pneumatic Manual Control Valve VH200 Series, Rc 1/4, 1/4in, III B
- RS-artikelnummer:
- 838-8698
- Tillv. art.nr:
- VH201-02
- Tillverkare / varumärke:
- SMC
Tillfälligt slut i lager – restorder för leverans 2024-05-08
Lagt till varukorgen
Pris (ex. moms) Varje
857,91 kr
(exkl. moms)
1 072,39 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 857,91 kr |
| 5 - 9 | 831,82 kr |
| 10 + | 804,99 kr |
- RS-artikelnummer:
- 838-8698
- Tillv. art.nr:
- VH201-02
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
Uppfyller ej RoHS
- COO (Country of Origin):
- JP
Produktdetaljer
Series VH Hand Valves
The SMC VH series are compact rotary hand valves with a variety of flow rates. Suitable for applications that require manual directional control. These valves are easy to operate while offering a high tolerance to contamination.
Body mounted or panel mounted options
Proof pressure 1.5 MPa
Operating angle 90 °
Self cleaning
Wiping action
Proof pressure 1.5 MPa
Operating angle 90 °
Self cleaning
Wiping action
SMC VCH Series
Specifikationer
Attribute | Value |
|---|---|
| Control Mechanism | Lever |
| Connection Port Thread | Rc 1/4 |
| Function | 4/3 |
| Thread Size | 1/4in |
| Thread Standard | Rc |
| Manufacturer Series | VH200 |
| Maximum Operating Pressure | 1 MPa |
| Body Material | Die Cast Aluminium |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
