Norgren Key 3/2 Pneumatic Manual Control Valve 03 Series

  • RS-artikelnummer 210-2906
  • Tillv. art.nr 03041802801
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

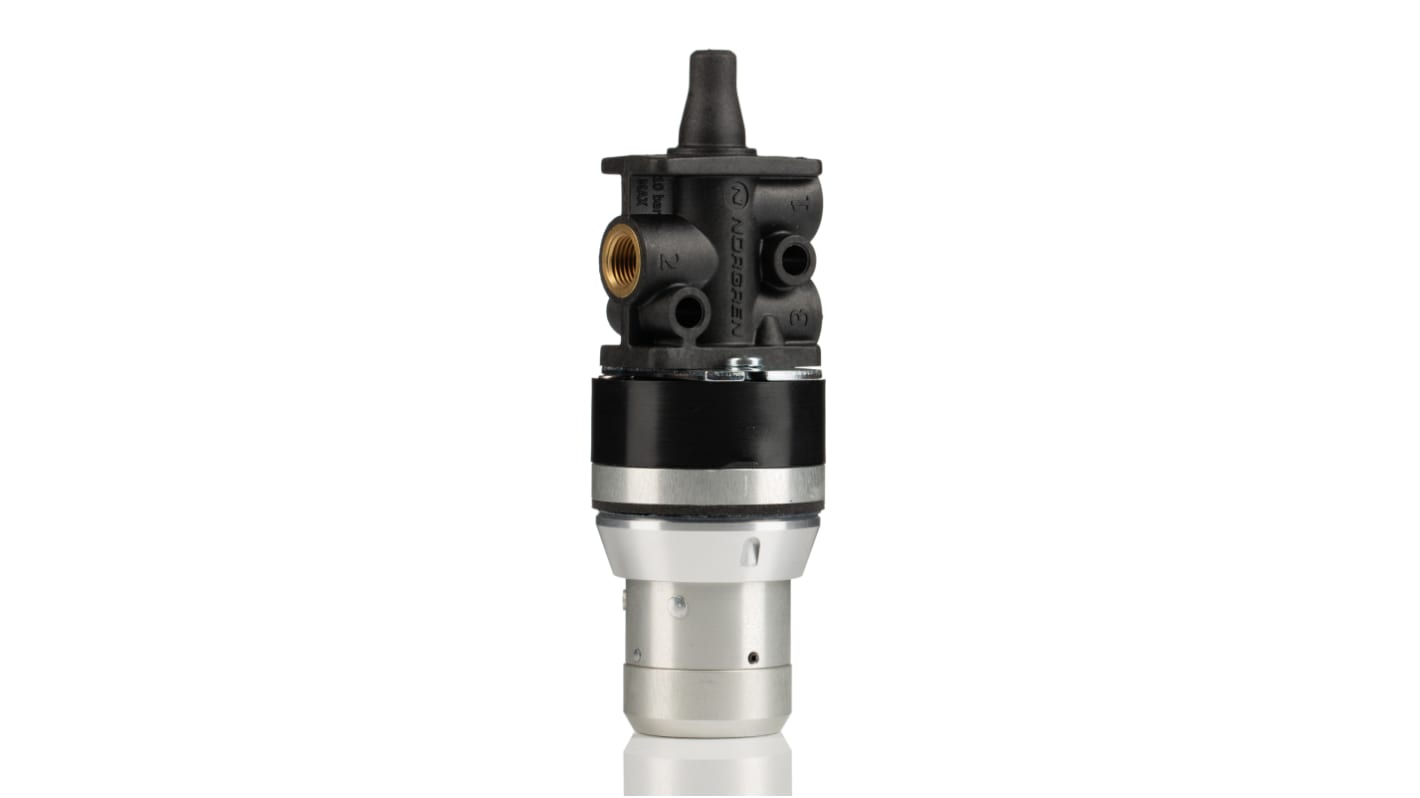

Pneumatic Rotary Key Valve

Note

Due to manufacturer change, new body materials are moulded polymer (Fortron PPS), replacing the older metal body

//media.rs-online.com/t_line/LD210290-02.gif

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

Specifikationer
Attribute Value
Control Mechanism Key
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Chrome
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 913,95 kr
(exkl. moms)
2 392,44 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 913,95 kr
5 - 9
1 854,89 kr
10 +
1 794,38 kr
