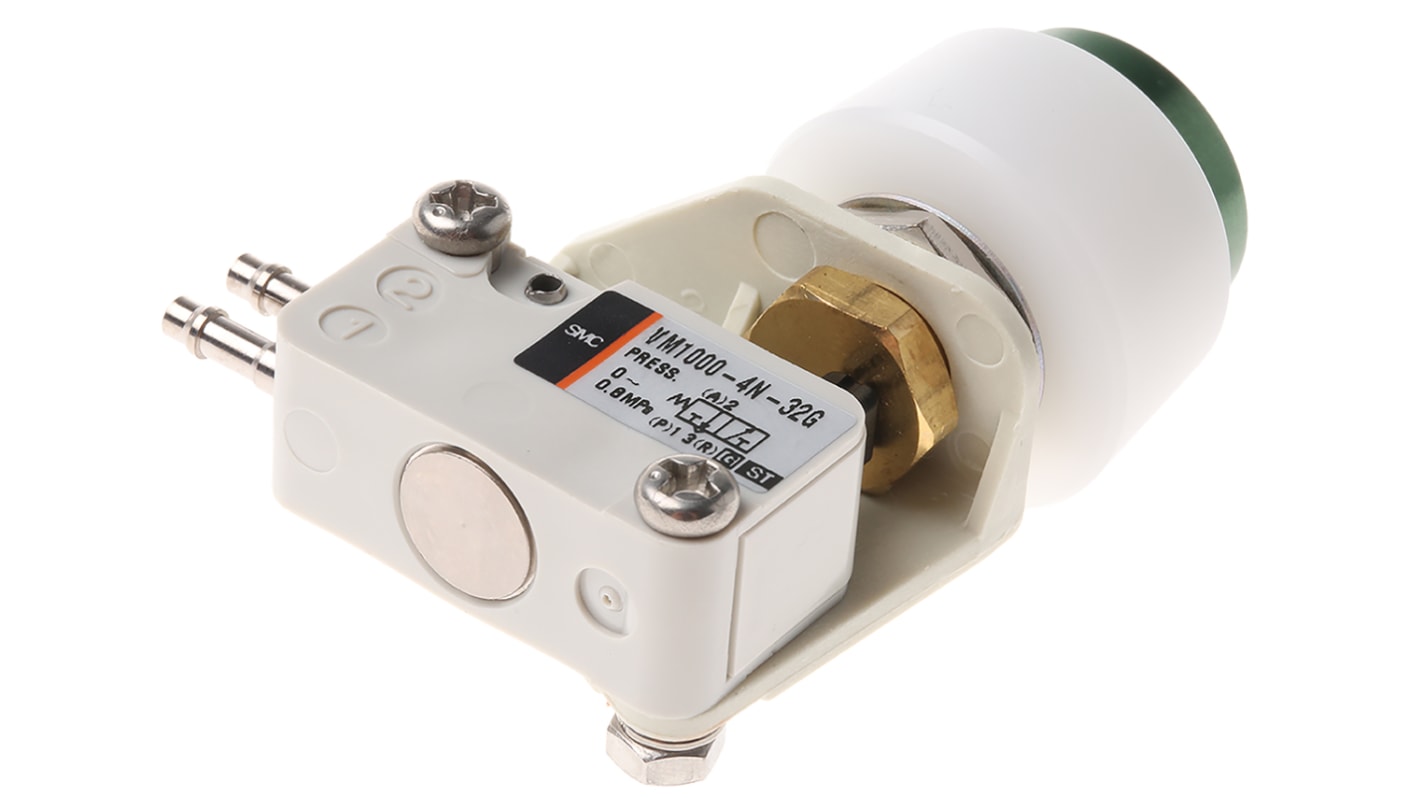

SMC Push Button 3/2 Pneumatic Manual Control Valve VM1000 Series

  • RS-artikelnummer 192-9160
  • Tillv. art.nr VM1000-4N-32G
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

Push Button Valve

3 port / 2 way normally closed valves. CV 0.055
Each valve incorporates built in hose nipple connection suitable for Ø4mm OD, 2.5mm ID tube
Separate valves must be used for nylon or polyurethane tubing
Interchangeable with V3 microswitches

//media.rs-online.com/t_line/L192915-01.gif
//media.rs-online.com/t_line/L192916-01.gif
//media.rs-online.com/t_line/LF192915-99.gif
Specifikationer
Attribute Value
Control Mechanism Push Button
Function 3/2
Manufacturer Series VM1000
Control Button/Switch Colour Green
Maximum Operating Pressure 0.8 MPa
Body Material PBT
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Number of Ports 3/2
1 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
226,41 kr
(exkl. moms)
283,01 kr
(inkl. moms)
Enheter
Per unit
1 - 4
226,41 kr
5 - 9
219,50 kr
10 +
212,42 kr
