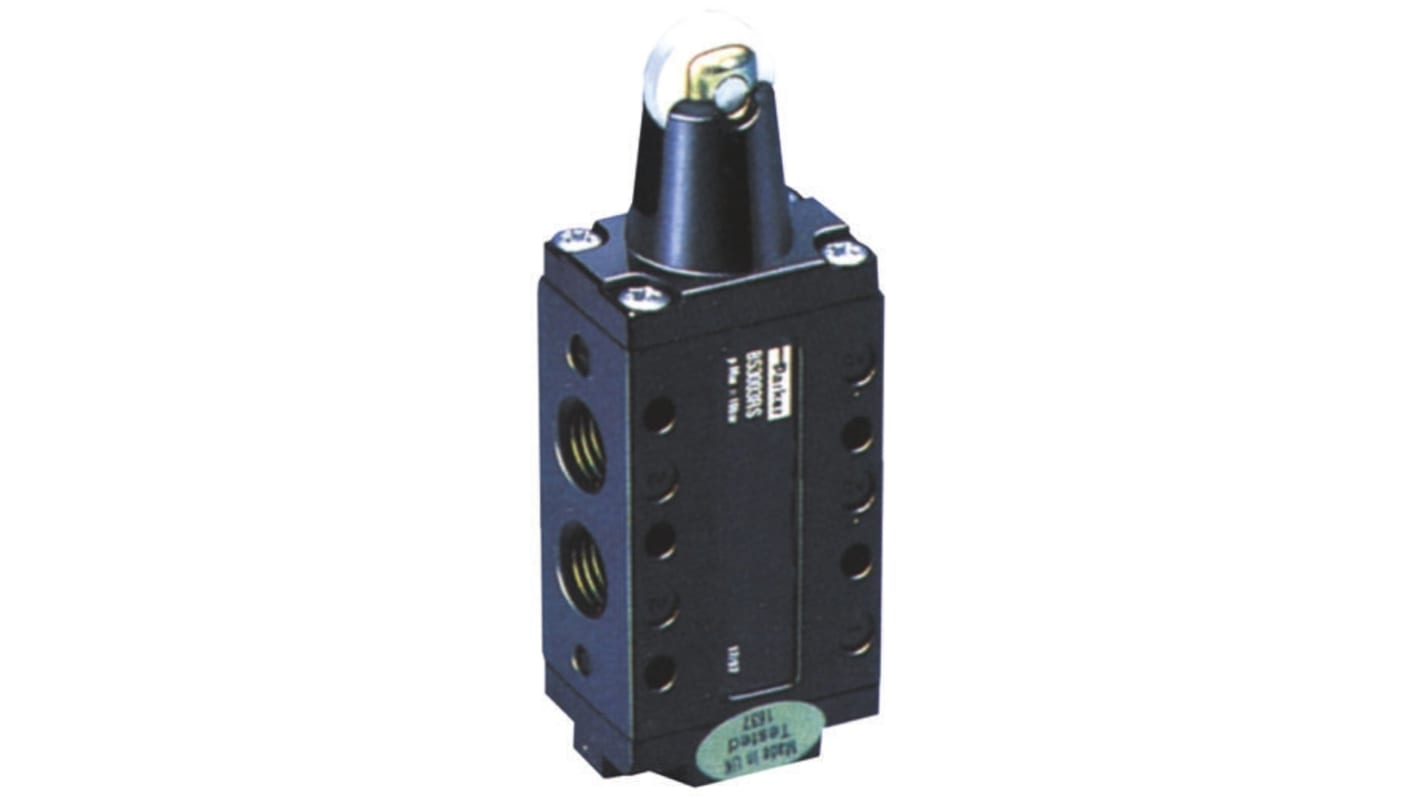

Parker Roller 5/2 Pneumatic Manual Control Valve B53 Series, G 1/4, 1/4in, III B
- RS-artikelnummer:
- 410-450
- Tillv. art.nr:
- B53004RS
- Tillverkare / varumärke:
- Parker
2 I lager för avsändande samma dag
Pris (ex. moms) Varje
2 425,72 kr
(exkl. moms)
3 032,15 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 4 | 2 425,72 kr |
| 5 - 9 | 2 328,79 kr |
| 10 + | 2 231,75 kr |
- RS-artikelnummer:
- 410-450
- Tillv. art.nr:
- B53004RS
- Tillverkare / varumärke:
- Parker
Lagstiftning och ursprungsland
Produktdetaljer
Roller/Spring valves, B53 Series
Stainless steel spool
Viton body seals as standard
Integral mounting holes
26 dm3/s at 7 bar
Maximum flow rate 1740 l/min
22 mm Panel Hole
Body ported connection
Viton body seals as standard
Integral mounting holes
26 dm3/s at 7 bar
Maximum flow rate 1740 l/min
22 mm Panel Hole
Body ported connection
Specifikationer
Attribute | Value |
|---|---|
| Control Mechanism | Roller |
| Connection Port Thread | G 1/4 |
| Function | 5/2 |
| Thread Size | 1/4in |
| Thread Standard | G |
| Manufacturer Series | B53 |
| Maximum Operating Pressure | 10 bar |
| Body Material | Anodised Aluminium |
| Maximum Flow Rate | 1740L/min |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +80°C |
| Number of Ports | 5/2 |
