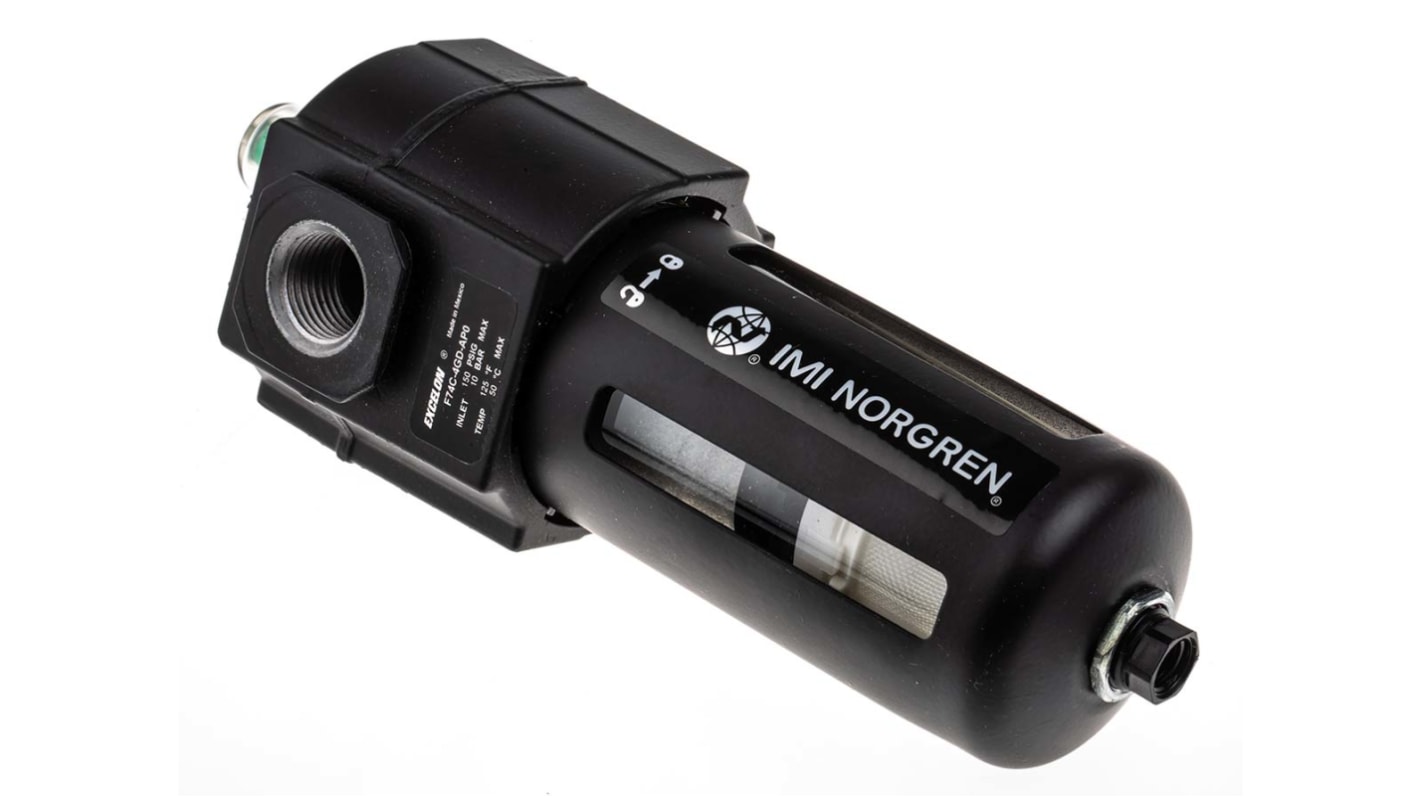

IMI Norgren F74C 0.01μm G 1/2 Pneumatic Filter, Automatic
- RS-artikelnummer 267-9260
- Tillv. art.nr F74C-4GD-AP0
- Tillverkare / varumärke IMI Norgren
Oil Removal Filter
Norgren Excelon high efficiency oil removal filters. Coalescing element converts oil and water mist into liquid which can then be drained away. Quick release bayonet bowl and service indicator are standard to aid maintenance. Norgren's Excelon range are designed to be used as part of a modular installation with other Excelon products or as a in-line unit with other pneumatic air preparation equipment.
High efficiency filter which conditions air
Temperature range -20°C to +50°C
Polycarbonate bowl
Element material synthetic fibre and polyurethane foam
Filtration to 0.01μm
Remaining oil content 0.01 mg/m3
Note
Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop.
Standards
ISO 8573-1 Class 1.7.2
Filters
| Attribute | Value |
|---|---|
| Manufacturer Series | F74C |
| Filtration Size | 0.01µm |
| Drain Type | Automatic |
| Port Connection | G 1/2 |
| Typical Flow Rate | 16L/s |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +50°C |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -34°C |
| Port Connection Thread Size | 1/2 in |
