Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Siemens
	Manufacturer Series	LOGO! 7
	Number of Inputs	8
	Output Type	Digital, Relay
	Supply Voltage	115 V ac/dc, 230 V ac/dc
	Input Type	Digital
	Number of Outputs	4
	Network Type	Ethernet
	Depth	55mm
	Display Included	Yes
	Length	107mm
	Dimensions	107 x 90 x 55 mm
	Mounting Type	DIN Rail
	Width	90mm
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+55°C
	Output Current	10 A

	Välj alla
	Brand Siemens
	Manufacturer Series LOGO! 7
	Number of Inputs 8
	Output Type Digital, Relay
	Supply Voltage 115 V ac/dc, 230 V ac/dc
	Input Type Digital
	Number of Outputs 4
	Network Type Ethernet
	Depth 55mm
	Display Included Yes
	Length 107mm
	Dimensions 107 x 90 x 55 mm
	Mounting Type DIN Rail
	Width 90mm
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +55°C
	Output Current 10 A

COO (Country of Origin):: CN

LOGO! 7 - Logic Modules

The Logo! 0BA7 logic modules are equipped with an integral Ethernet interface and enhanced performance and capabilities compared to previous versions. The program capacity has been doubled to 400 function blocks, and a wide range of new practice-oriented functions has been added, along with data logging functions. The integral Ethernet interface allows communication with other LOGO! 0BA7 basic devices or SIMATIC automation components such as SIMATIC S7 CPUs, HMI Panels, and PCs. Up to eight LOGO! devices can be networked via the Ethernet interface.
Function extensions now available:
• Program memory extended to 400 function blocks
• Astronomical clock
• Min./Max.
• Average value
• Analog filter
• Stopwatch
• Macro and library function
• Data logging to SD Card

Programmed using LOGO! Soft Comfort V7 software or by insertion of a pre-programmed memory module
New special function blocks
New menu commands
8 digital inputs and 4 digital outputs
Expandable with password security
Ethernet connection, RJ45 socket
Communication with S7 PLC, HMI and other LOGO modules
Support SD cards with a maximum capacity up to 8 GB
Up to 400 function blocks
Backup time fo 20 days
Dimensions: 90 mm x 107 mm x 55 mm (H x W x D)

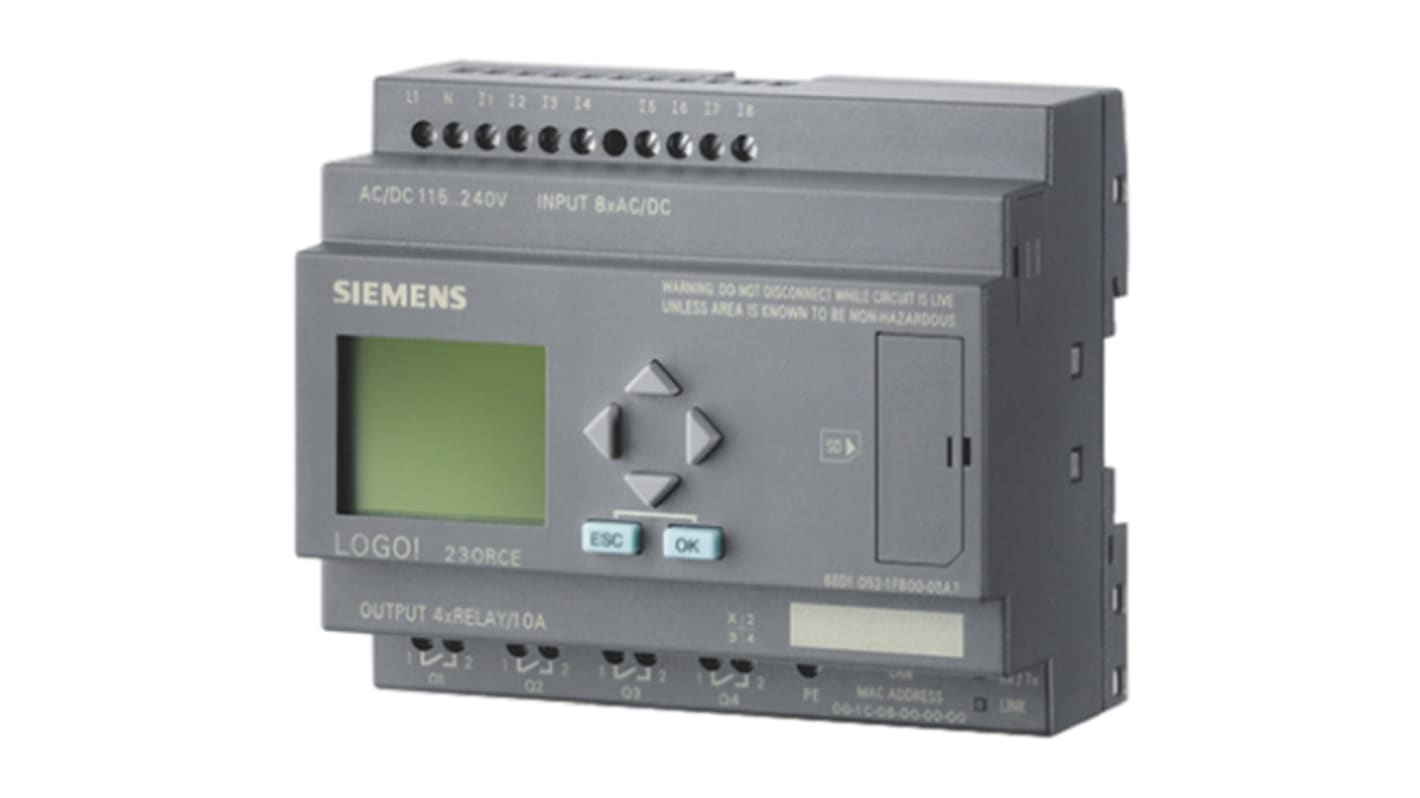

Siemens LOGO! 7 Logic Module, 115 V ac/dc, 230 V ac/dc Digital, Relay, 8 x Input, 4 x Output With Display

LOGO! 7 - Logic Modules
