    Kyoritsu KEW8031F Phase Rotation Tester, CAT III 600 V, 60Hz Max, 600V ac Max with RS Calibration

    RS-artikelnummer:
    531-1973
    Tillv. art.nr:
    KEW8031F
    Tillverkare / varumärke:
    Kyoritsu
    Kyoritsu
    Se alla Phase Rotation Testers
    45 I lager för leverans inom 3-5 arbetsdagar
    Add to Basket
    Enheter

    Nästa dag-leverans inte möjlig

    Lagt till varukorgen

    Pris (ex. moms) Each

    2 375,51 kr

    (exkl. moms)

    2 969,39 kr

    (inkl. moms)

    EnheterPer unit
    1 +2 375,51 kr
    RS-artikelnummer:
    531-1973
    Tillv. art.nr:
    KEW8031F
    Tillverkare / varumärke:
    Kyoritsu

    Ej tillämpbart

    COO (Country of Origin):
    JP

    Lagstiftning och ursprungsland

    Ej tillämpbart

    COO (Country of Origin):
    JP

    Produktdetaljer

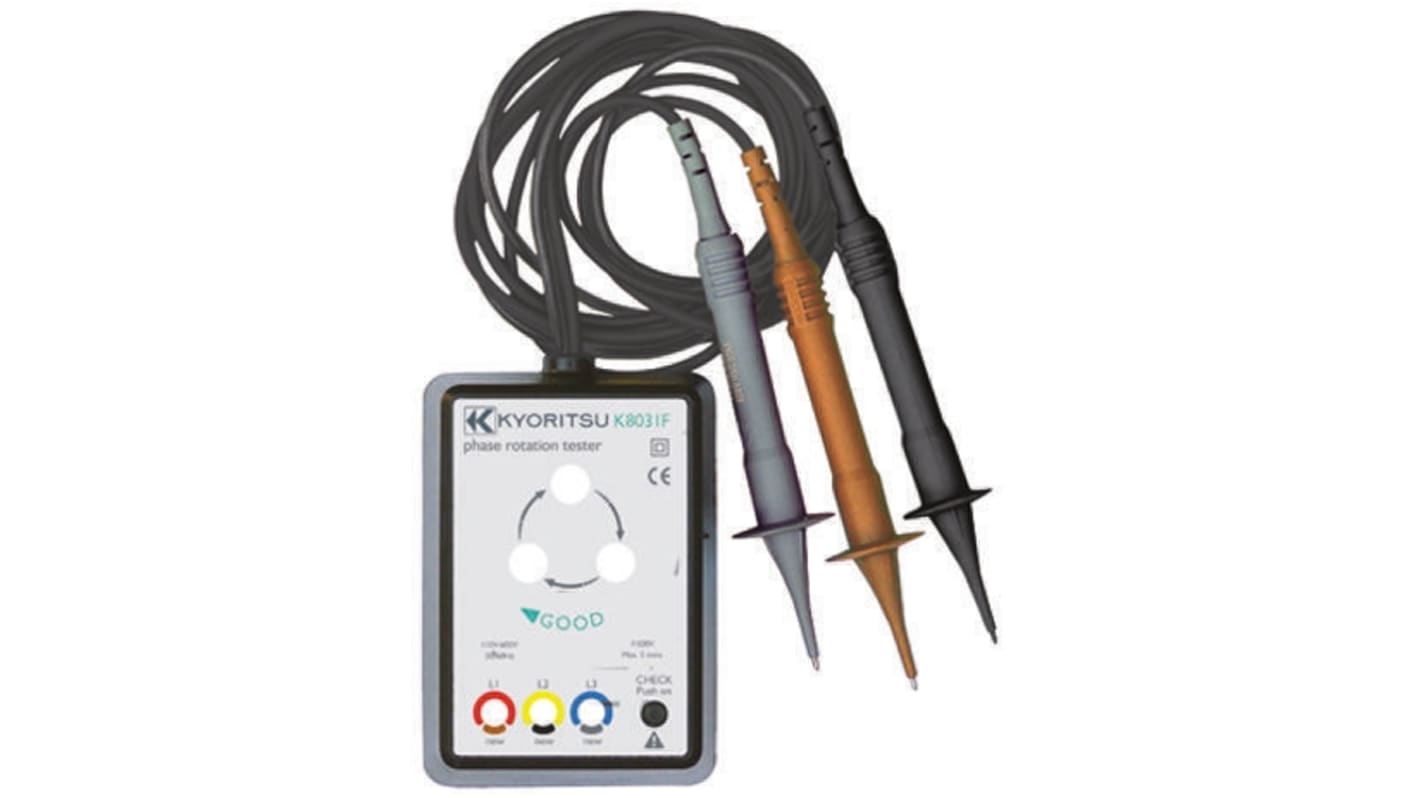

    KEW8031F Phase Rotation Tester


    The 8031F tester indicates phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases.
    Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated in the design.
    The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip options. The unit has a wide operating range from 110 V → 600 V and 40 Hz → 400 Hz.


    Phase indicator designed to check the presence of open phase and phase sequence by rotating disk lamps
    Wide check range of 3 phase power source from 110 V → 600 V
    Colour coded to conform with both old and new EU colour regulations
    1.5 m fused leads with screw-in crocodile clips
    Operational Voltage: 110 V ac to 600 V ac
    Time limit for continuous >500 V: Within 5 min
    Frequency Response: 40 Hz to 200 Hz (AC 110 to 200 V) 40 Hz to 400 Hz (AC 200 V to 600 V)
    Safety Standard: IEC61010 to1 CATIII 600 V Pollution Degree 2


    Supplied with

    GS38 test leads, carry pouch and instructions.

    Kyoritsu Phase Rotation Tester


    The Kyoritsu phase rotation indicator has a voltage range of 110V to 600V and a frequency range of 40Hz to 400Hz. The 8031F tester indicates the phase sequence by a rotating disc which gives clear feedback. A system of lamps also indicates open circuit phases. Small, lightweight and compact in design with no exposed metal parts. A test button is incorporated into the design. The unit is supplied with 1.5 m GS38 fused test lead with probe clip and crocodile clip option, a carry pouch, and an instruction manual.


    Features and Benefits


    Wide check range of 3-phase power source
    Colour coded to conform with both old and new EU colour regulations
    Time limit for continuous >500V: Within 5min
    Frequency response: 40 Hz to 200 Hz (AC 110V to 200V) 40Hz to 400Hz (AC 200V to 600V)


    Applications


    Feed motors
    Drives
    Electrical systems


    Certifications


    IEC61010-1
    CATIII 600 V Pollution Degree



    Specifikationer

    AttributeValue
    Connection TypeTest Lead
    Overvoltage CategoryCAT III 600V
    Safety CategoryCAT III 600 V
    CalibratedRSCAL
    Dimensions106 x 75 x 40mm
    Weight350g
    Height40mm
    Length106mm
    Maximum Frequency60Hz
    Minimum Frequency50 Hz
    Minimum Voltage110V
    Width75mm
    Safety Category Voltage600V
    Model Number pKEW8031F
    Maximum Voltage600V ac
    Safety Category LevelCAT III
