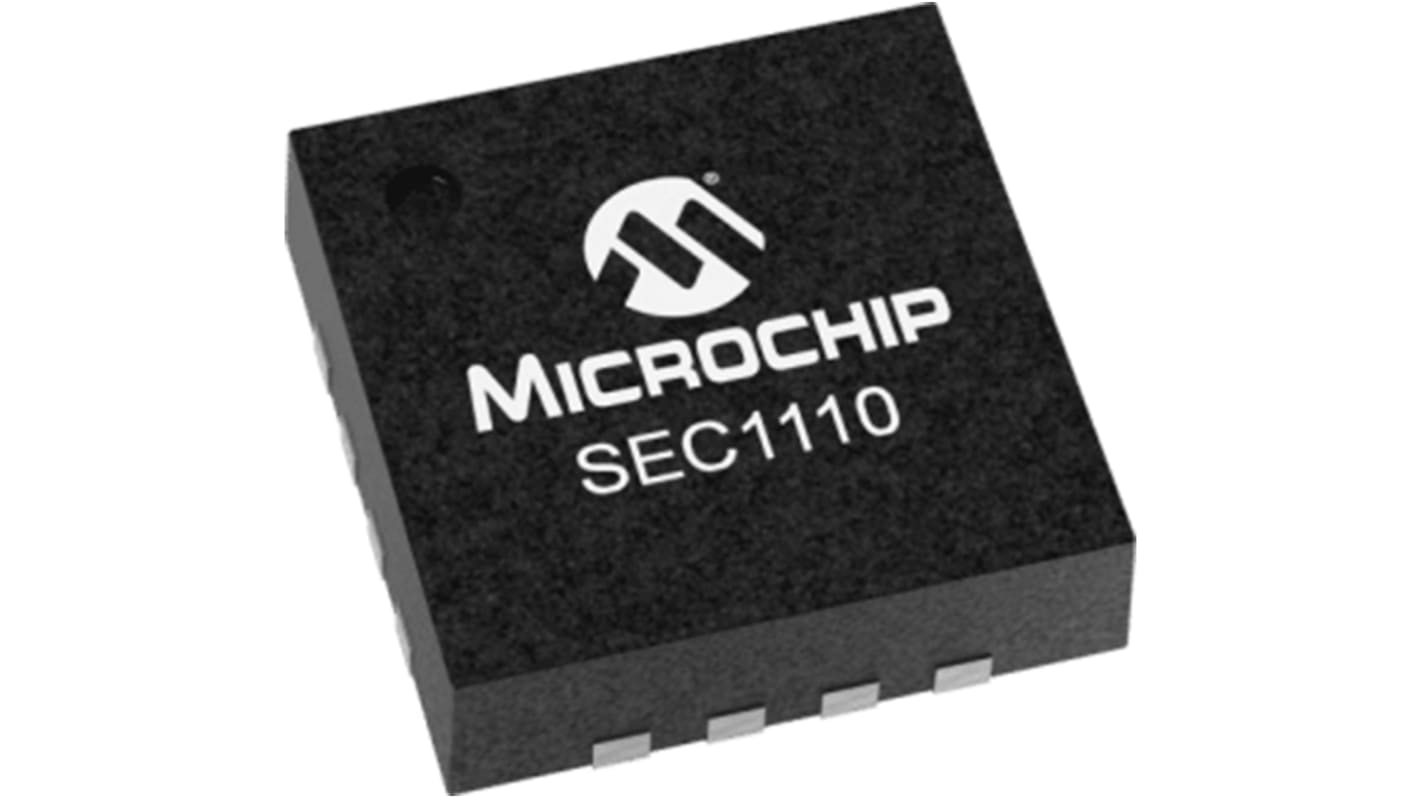

SEC1110I-A5-02, Smart Card Interface Smart Card 16-Pin QFN


Tillfälligt slut i lager - restorder för leverans 2021-01-05
Add to Basket

Pris (ex. moms) Each (In a Tray of 490)

17,992 kr

(exkl. moms)

22,49 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
144-5873
Tillv. art.nr:
SEC1110I-A5-02
Tillverkare / varumärke:
Microchip
COO (Country of Origin):
TH
EnheterPer unitPer Tray*
490 +17,992 kr8 816,08 kr
*price indicative

SEC1110/1210 Smart Card to USB/SPI/UART Bridges


The Microchip SEC1110/1210 family of devices are Smart Card Bridge ICs with USB, SPI and UART interfaces. Through an effective combination of hardware and software the SEC1110 and SEC1210 offer a high-performance customisable solution. The SEC1110/1210 devices are certified to the latest USB and EMV standards to ensure interoperability with the latest and legacy Smart Card systems alike.

To simplify the development of custom USB-based applications these devices integrate USB Chip Card Interface Device (CCID) firmware. Also on-board is One-Time Programmable memory which can be utilised to host custom firmware or device data.


Features


Fully compliant with Smart Card standards: ISO/IEC 7816, EMV 4.2/4.3, ETSI TS 102 221 and PC/SC
USB, SPI or UART host interface
Dedicated hardware for performance
Low standby and dynamic power
OTP memory for code and custom configuration data
Versatile ETU rate generation, supporting current and proposed rates (to 826 Kbps and beyond)


USB (Universal Serial Bus) - Microchip

AttributeValue
Peripheral TypeSmart Card
Number of Timer/Counters3
Mounting TypeSurface Mount
Package TypeQFN
Pin Count16
Dimensions5.1 x 5.1 x 0.95mm
Length5.1mm
Width5.1mm
Height0.95mm
Maximum Operating Supply Voltage5.5 V
Maximum Operating Temperature+85 °C
Minimum Operating Supply Voltage3 V
Minimum Operating Temperature-40 °C
