Block 24 V ac 1 Output Through Hole PCB Transformer, VDE, UL 25 VA
- RS-artikelnummer:
- 732-0496
- Tillv. art.nr:
- VCM 25/1/24
- Tillverkare / varumärke:
- Block

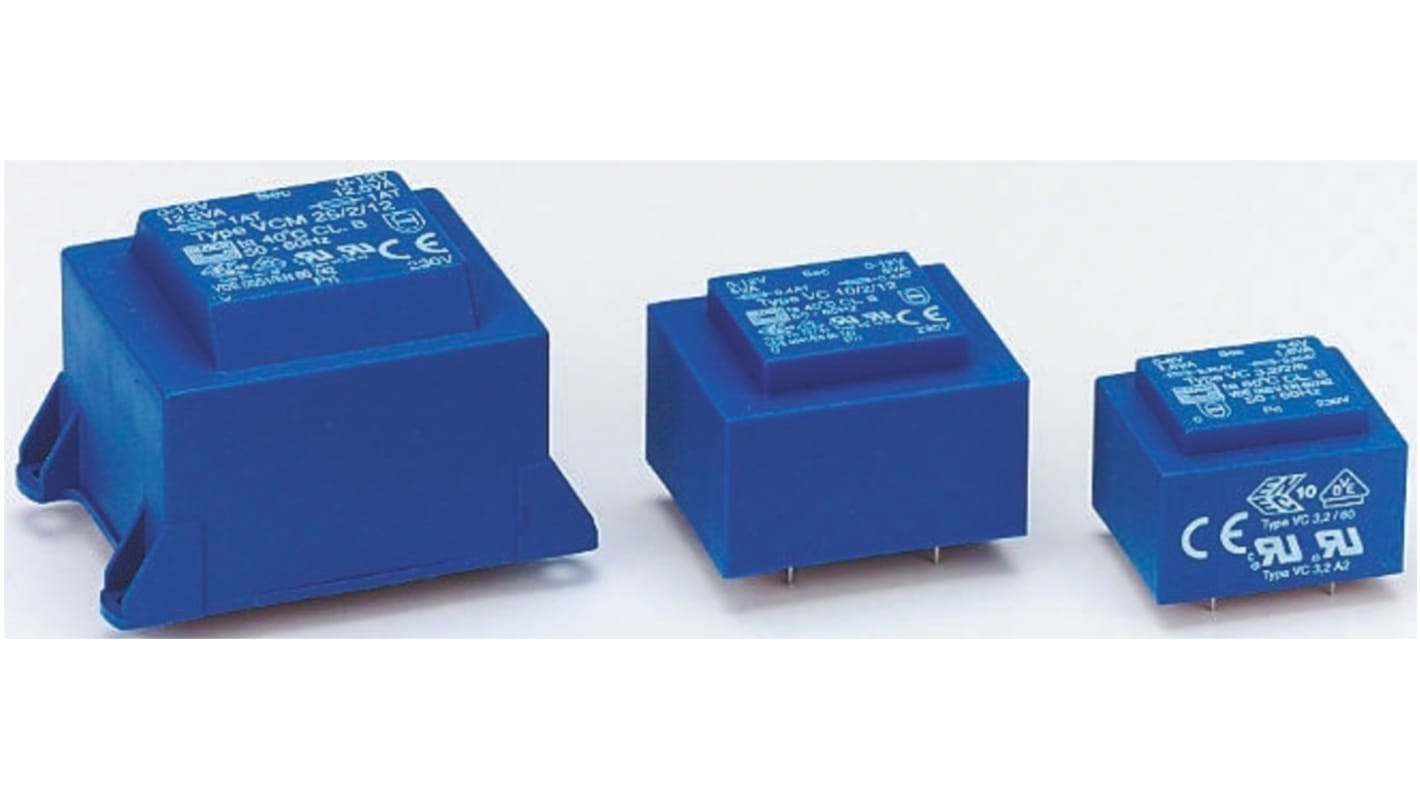

Denna bild representerar endast produktgruppen
Mängdrabatt möjlig
Antal (1 enhet)*
406,41 kr
(exkl. moms)
508,01 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 7 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 406,41 kr |
| 10 - 24 | 390,99 kr |
| 25 - 49 | 359,63 kr |
| 50 + | 328,38 kr |
*vägledande pris
- RS-artikelnummer:
- 732-0496
- Tillv. art.nr:
- VCM 25/1/24
- Tillverkare / varumärke:
- Block
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Block | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 24 V ac | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 1 | |
| Length | 81.2mm | |
| Width | 55 mm | |
| Depth | 49.2mm | |
| Power | 25VA | |
| Weight | 610g | |
| Mount Type | Through Hole | |
| Isolation Voltage | 5000V | |
| Winding Type | Single Primary, Single Secondary | |
| Efficiency | 82% | |
| Maximum Operating Temperature | 40°C | |
| Minimum Operating Frequency | 50Hz | |
| Series | VCM 25/1/24 | |
| Standards/Approvals | VDE, UL | |
| Maximum Operating Frequency | 60Hz | |
| Välj alla | ||
|---|---|---|
Brand Block | ||
Product Type PCB Transformer | ||
Secondary Voltage 24 V ac | ||
Primary Voltage 230 V ac | ||
Number of Outputs 1 | ||
Length 81.2mm | ||
Width 55 mm | ||
Depth 49.2mm | ||
Power 25VA | ||
Weight 610g | ||
Mount Type Through Hole | ||
Isolation Voltage 5000V | ||
Winding Type Single Primary, Single Secondary | ||
Efficiency 82% | ||
Maximum Operating Temperature 40°C | ||
Minimum Operating Frequency 50Hz | ||
Series VCM 25/1/24 | ||
Standards/Approvals VDE, UL | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- DE
PCB Mount 230Vac Primary VC/VCM Series
Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Note
To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.
Approvals
ENEC, UL recognised
Standards
EN 61 558 IEC 61558
