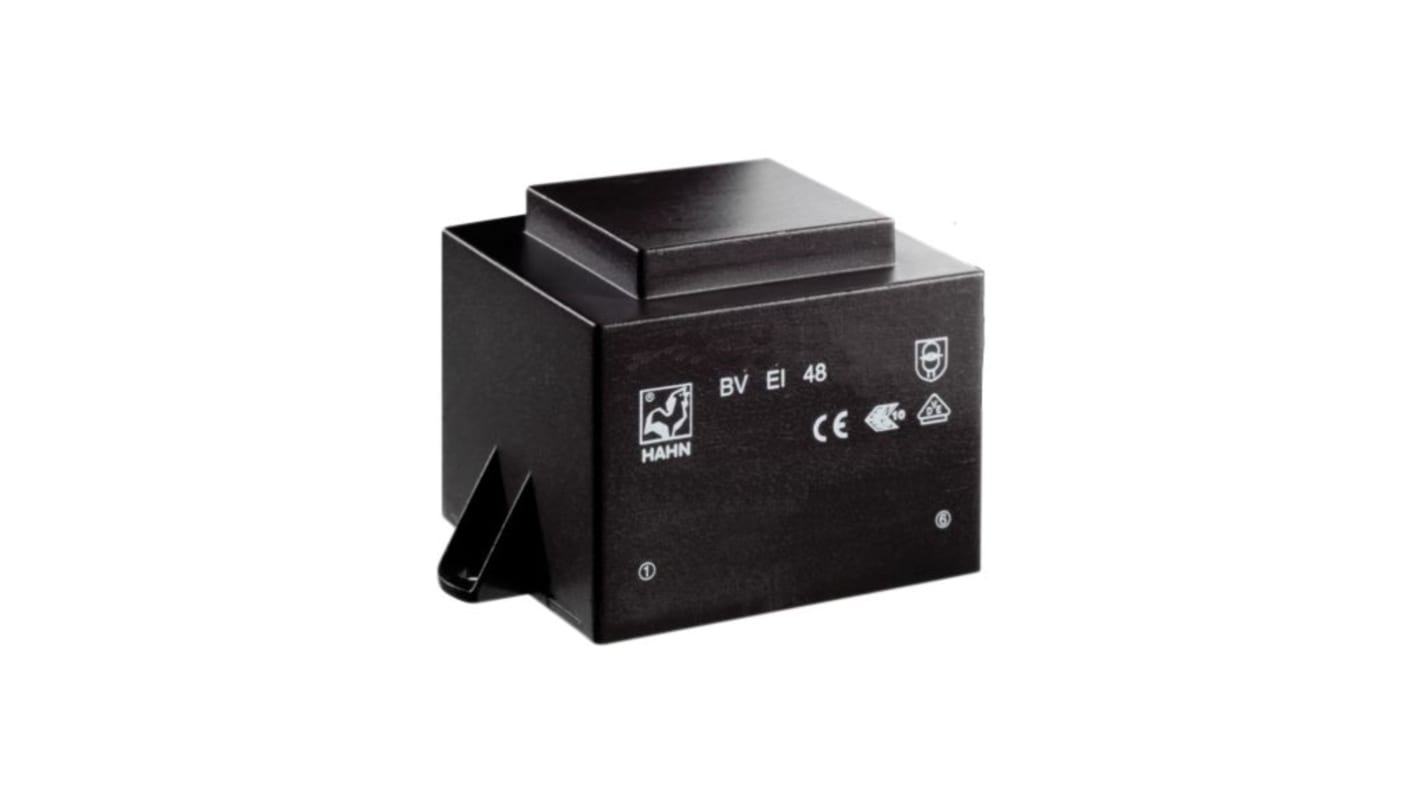

Hahn 2 x 9 V 1 Output PCB PCB Transformer, DIN EN 61558-2-6, UL 5085-1, DIN EN 60335-1, UL 5085-2 10 VA

Se alla PCB Transformers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
288-7323
Distrelec artikelnummer:
302-94-687
Tillv. art.nr:
BV EI 481 1118
Tillverkare / varumärke:
Hahn
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Hahn

Secondary Voltage

2 x 9 V

Product Type

PCB Transformer

Primary Voltage

230 V

Number of Outputs

1

Length

69.2mm

Width

42.9 mm

Depth

35.1mm

Power

10VA

Weight

0.3kg

Mount Type

PCB

Number of Pins

6

Minimum Operating Frequency

50Hz

Series

BV

Maximum Operating Frequency

60Hz

Standards/Approvals

DIN EN 61558-2-6, UL 5085-1, DIN EN 60335-1, UL 5085-2

COO (Country of Origin):
DE
The transformer is a printed-circuit-board transformer with an output power of up to 10.0 VA. It features a type cast housing '0' for easy installation and protection. With excellent temperature fluctuation resistance properties, this transformer ensures high electrical safety and a long service life. It also has high voltage resistance and a self-extinguishing cast housing and sealing material. Additionally, it undergoes 100% piece inspection to ensure top-quality performance. This transformer is perfect for applications that require reliable power conversion and distribution.

Output power up to 10.0 VA

Type cast housing '0' for easy installation

Excellent temperature fluctuation resistance properties

High electrical safety and long service life

High voltage resistance

Self-extinguishing cast housing and sealing material

100% piece inspection for quality assurance
