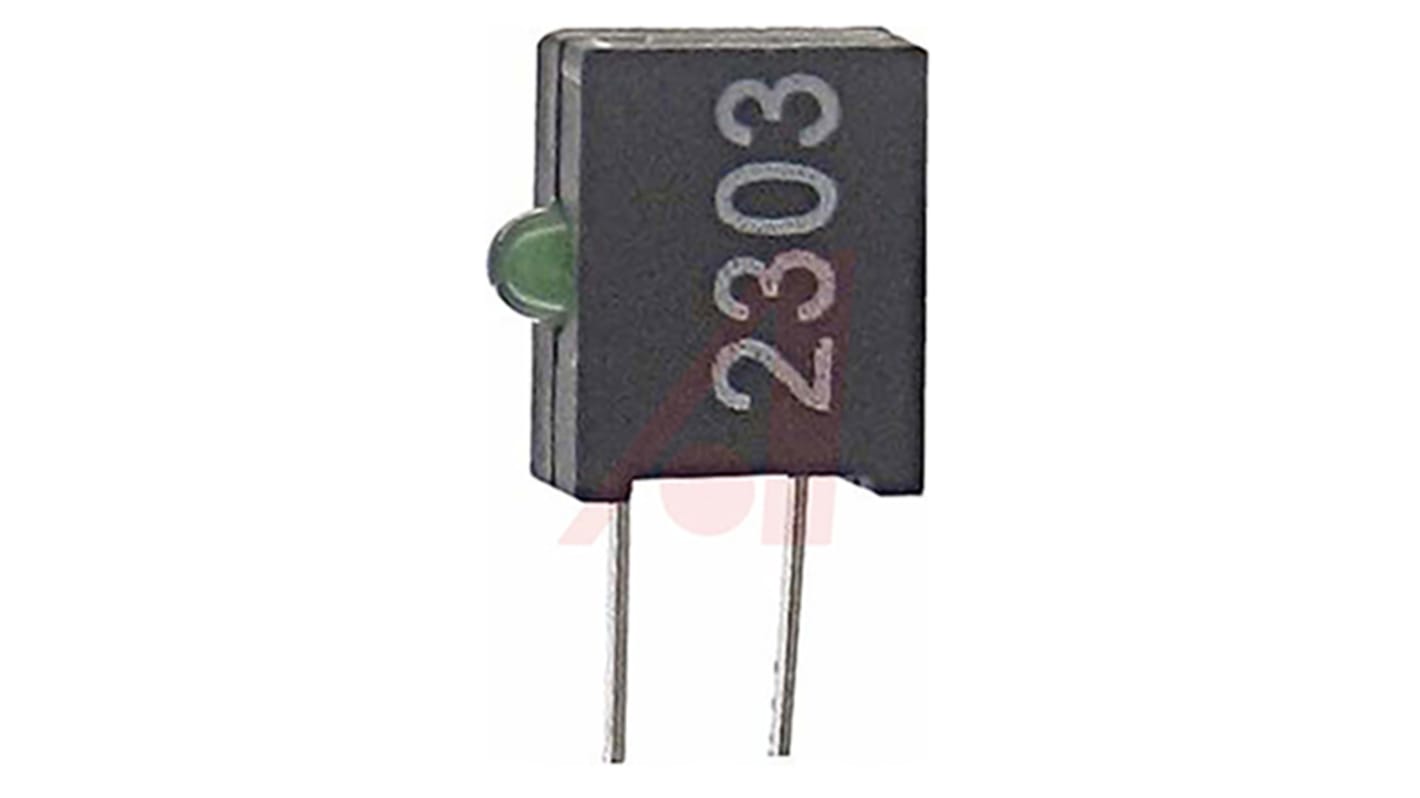

Dialight 555-2303F, Green Right Angle PCB LED Indicator 2mm (T-3/4), Through Hole

  • RS-artikelnummer 890-7075
  • Tillv. art.nr 555-2303F
  • Tillverkare / varumärke Dialight
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MX
Produktdetaljer

Dialight 555-2 Series LED CBI® Circuit Board Indicators

The 555-2xxx series, from Dialight, are PCB LED indicators from their CBI® circuit board indicator family. They contain one 2mm (T-3/4) LED in a black plastic housing. The housing positions the LED at a right angle to the PCB. The 555-2xxx is available in general purpose and integral resistor LED options.

Features of the 555-2xxx PCB LED indicators:
Through-hole mounting
1 x 2mm (T-3/4) LED
Black plastic housing
Right angle
Variety of colours
High contrast between LED and housing
Compatible with 555-4xxx Quad Block

PCB LED Indicators, Dialight

Specifikationer
Attribute Value
LED Colours Green
Number of LEDs 1
Mounting Type Through Hole
Number of Pins 2
Viewing Angle 40 °
Dominant Wavelength 565 nm
LED Orientation Right Angle
Dimensions 2.54 x 6.22 x 6.35mm
Length 2.54mm
Width 6.22mm
Height 6.35mm
LED Size 2mm (T-3/4)
Standards Met EC 825-1, EN-60825-1, MIL-STD-202F, UL 94V-0
Series 555
Intensity 2.5mcd
Forward Current 6.7mA
Lens Finish Non-Diffused
Configuration Single
Lens Colour Green
Tillfälligt slut i lager – restorder för leverans 2020-06-17
Pris (ex. moms) Each (In a Pack of 50)
10,812 kr
(exkl. moms)
13,515 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
50 +
10,812 kr
540,60 kr
