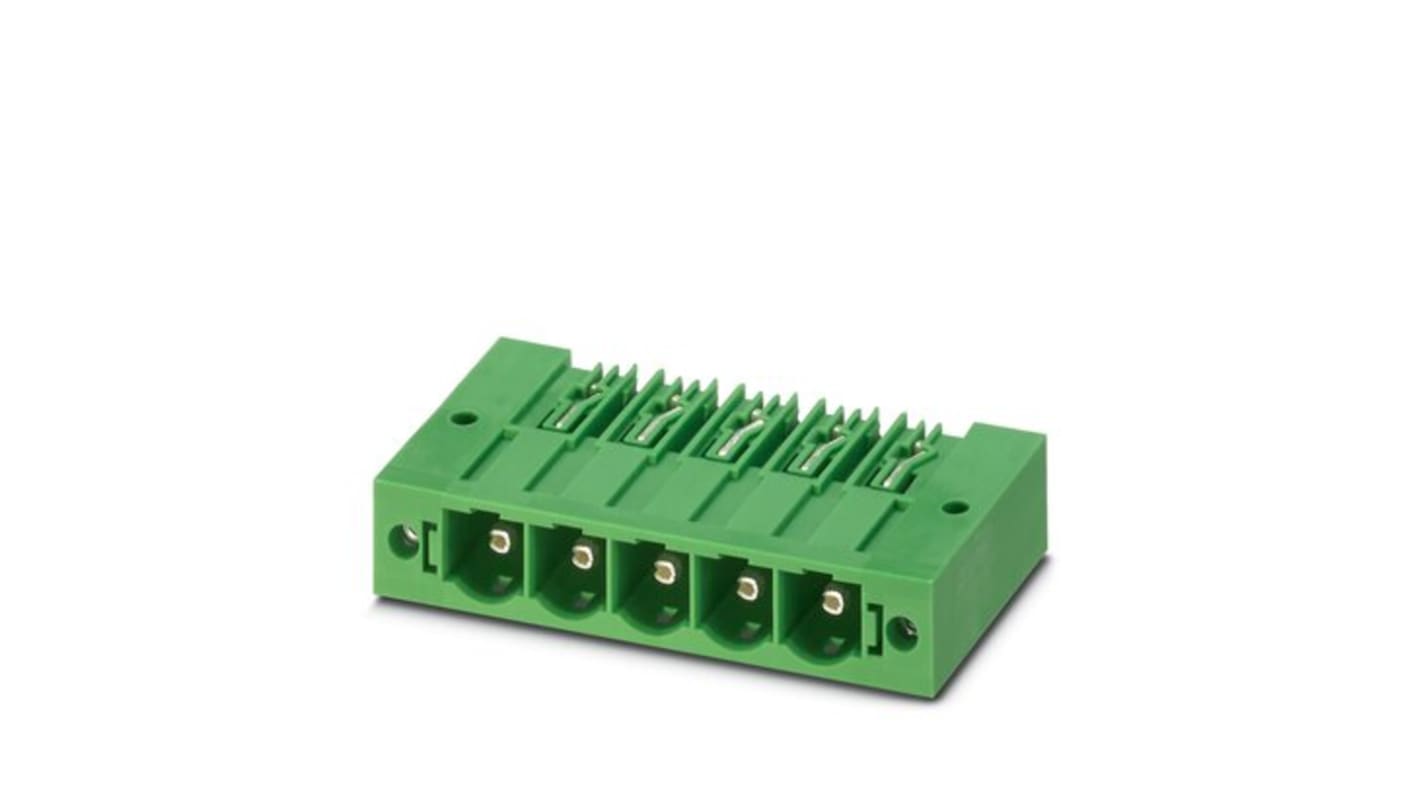

Phoenix Contact PC Series Wave Soldering Mount PCB Header, 5 Contact(s), 10.16 mm Pitch, 1 Row, Shrouded

Se alla PCB Headers

Antal (1 förpackning med 50 enheter)*

4 649,45 kr

(exkl. moms)

5 811,80 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 27 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
50 +92,989 kr4 649,45 kr

*vägledande pris

RS-artikelnummer:
284-1942
Tillv. art.nr:
1999039
Tillverkare / varumärke:
Phoenix Contact
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Phoenix Contact

Product Type

PCB Header

Series

PC

Pitch

10.16mm

Current

76A

Number of Contacts

5

Housing Material

Polyamide

Number of Rows

1

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON PC 6 hybrid

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Silver Nickel Alloy

Minimum Operating Temperature

-40°C

Row Pitch

10.16mm

Termination Type

Solder

Tail Pin Length

4mm

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

No

Mating Pin Length

4mm

Voltage

1000 V

COO (ursprungsland):
PL
The Phoenix Contact PCB header is designed with a well known mounting principle, enabling its universal use worldwide. It provides maximum flexibility in device design by accommodating various connection technologies. This feature allows a single header to be utilized for connectors with different connection methods.

RoHS compliant

Flammability rating V0 according to UL 94

Screwable flange for superior mechanical stability
