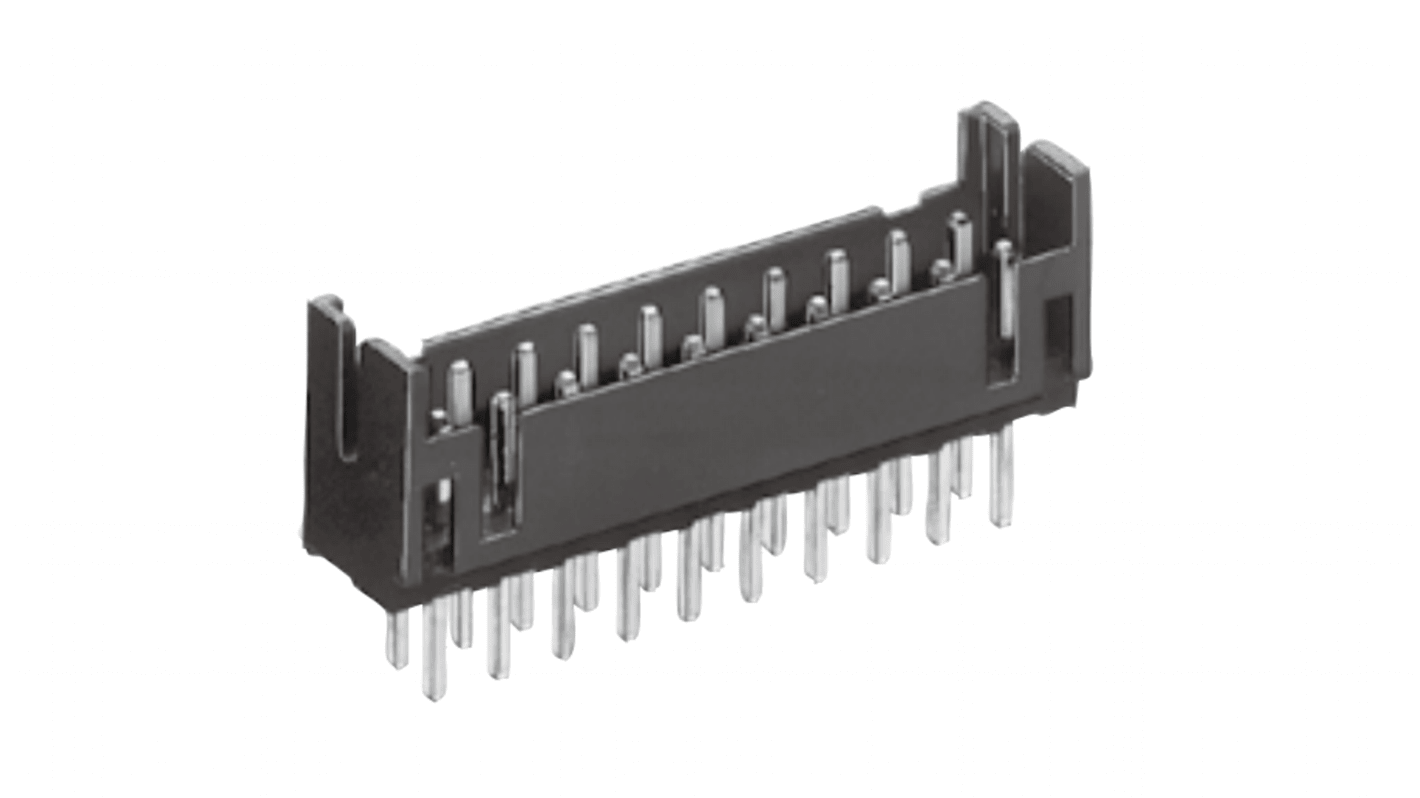

2mm Double-Row Connector 18posHeader

  • RS-artikelnummer 187-4449
  • Tillv. art.nr DF11E-18DP-2DSA
  • Tillverkare / varumärke Hirose
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

Space-saving on Board Realized
Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact.
Broad Variation
The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up.
Applicable Wire Covers Wide Range
According to the double rows of 2mm pitch compact design, the applicable wire can cover 22 to 30 AWG.
The ID Type Connector Achieves Connection Work.
Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process.
Applications
Business equipments such as copy machine, printer and so on.

Specifikationer
Attribute Value
Series DF11
Pitch 2mm
Number of Contacts 18
Number of Rows 2
Body Orientation Straight
Connector System Board to Board
Mounting Type Through Hole
Termination Method Solder
Contact Plating Tin
Current Rating 2A
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each (In a Pack of 9)
5,589 kr
(exkl. moms)
6,986 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
9 - 18
5,589 kr
50,301 kr
27 - 36
5,314 kr
47,826 kr
45 - 54
5,047 kr
45,423 kr
63 +
4,796 kr
43,164 kr
Nästa dag-leverans inte möjlig
