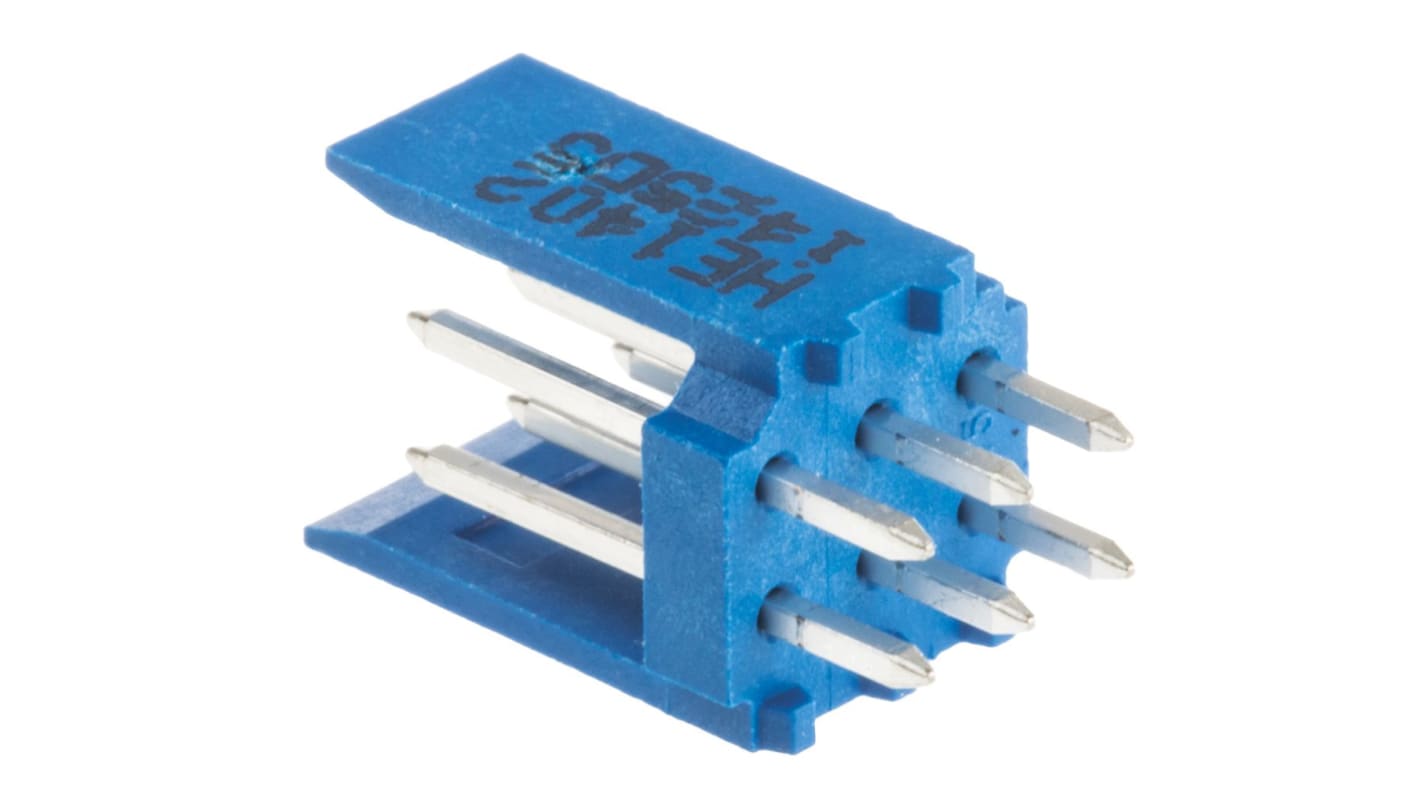

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

RS-artikelnummer:: 532-046
Tillv. art.nr:: 281739-3
Tillverkare / varumärke:: TE Connectivity

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

Mängdrabatt möjlig

Antal (1 förpackning med 10 enheter)*

167,39 kr

(exkl. moms)

209,24 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

320 enhet(er) är redo att levereras
Plus 220 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 360 enhet(er) från den 23 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per förpackning*
10 - 190	16,739 kr	167,39 kr
200 - 740	14,28 kr	142,80 kr
750 - 2990	11,95 kr	119,50 kr
3000 +	10,181 kr	101,81 kr

*vägledande pris

RS-artikelnummer:: 532-046
Tillv. art.nr:: 281739-3
Tillverkare / varumärke:: TE Connectivity

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	TE Connectivity
	Series	AMPMODU HE14
	Product Type	PCB Header
	Pitch	2.54mm
	Current	3A
	Housing Material	Thermoplastic
	Number of Contacts	6
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Through Hole
	Connector System	Wire-to-Board
	Contact Material	Phosphor Bronze
	Contact Plating	Tin
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Contact Gender	Male
	Tail Pin Length	2.9mm
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Voltage	500 V
	Distrelec Product Id	304-37-515

	Välj alla
	Brand TE Connectivity
	Series AMPMODU HE14
	Product Type PCB Header
	Pitch 2.54mm
	Current 3A
	Housing Material Thermoplastic
	Number of Contacts 6
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Through Hole
	Connector System Wire-to-Board
	Contact Material Phosphor Bronze
	Contact Plating Tin
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Contact Gender Male
	Tail Pin Length 2.9mm
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Voltage 500 V
	Distrelec Product Id 304-37-515

Logga in för att ladda ner CAD-modeller

TE Connectivity AMPMODU HE14 2.54 mm Shrouded PCB Headers

AMPMODU HE14 shrouded PCB pin headers with a 2.54mm centreline and blue high temperature UL 94V-0 rated thermoplastic housings. The housings of these AMPMODU HE14 PCB headers are polarized to prevent mismating and have protective shrouds for pin protection. The shrouds also feature an integrated friction lock for a secure mating connection. These AMPMODU HE14 PCB headers mate with AMPMODU HE14 IDC receptacles for terminating discrete wires or 2.54 mm centreline ribbon cables.

Features and Benefits

• High temperature thermoplastic housings

• Shrouds for pin protection

• Polarization to prevent mismating

• Integrated friction lock for secure connection

Applications

These AMPMODU Mod II PCB pin headers are suitable for use in a wide range of applications. Applications include automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment and appliances

TE Connectivity AMPMODU HE14 Interconnect System

The AMPMODU interconnect system is the signal standard for automation and control applications and is both reliable and economical. The AMPMODU HE14 interconnect system has a 2.54mm centreline and consists of IDC receptacle assemblies for terminating discrete wires or ribbon cable, shrouded headers, receptacle housings and crimp contacts. When combined, these connectors can be used in a wide variety of industrial applications and systems.

Note

6 way double row means - 2 rows of 3 pins per row, 8 way double row means - 2 rows of 4 pins per row etc.
