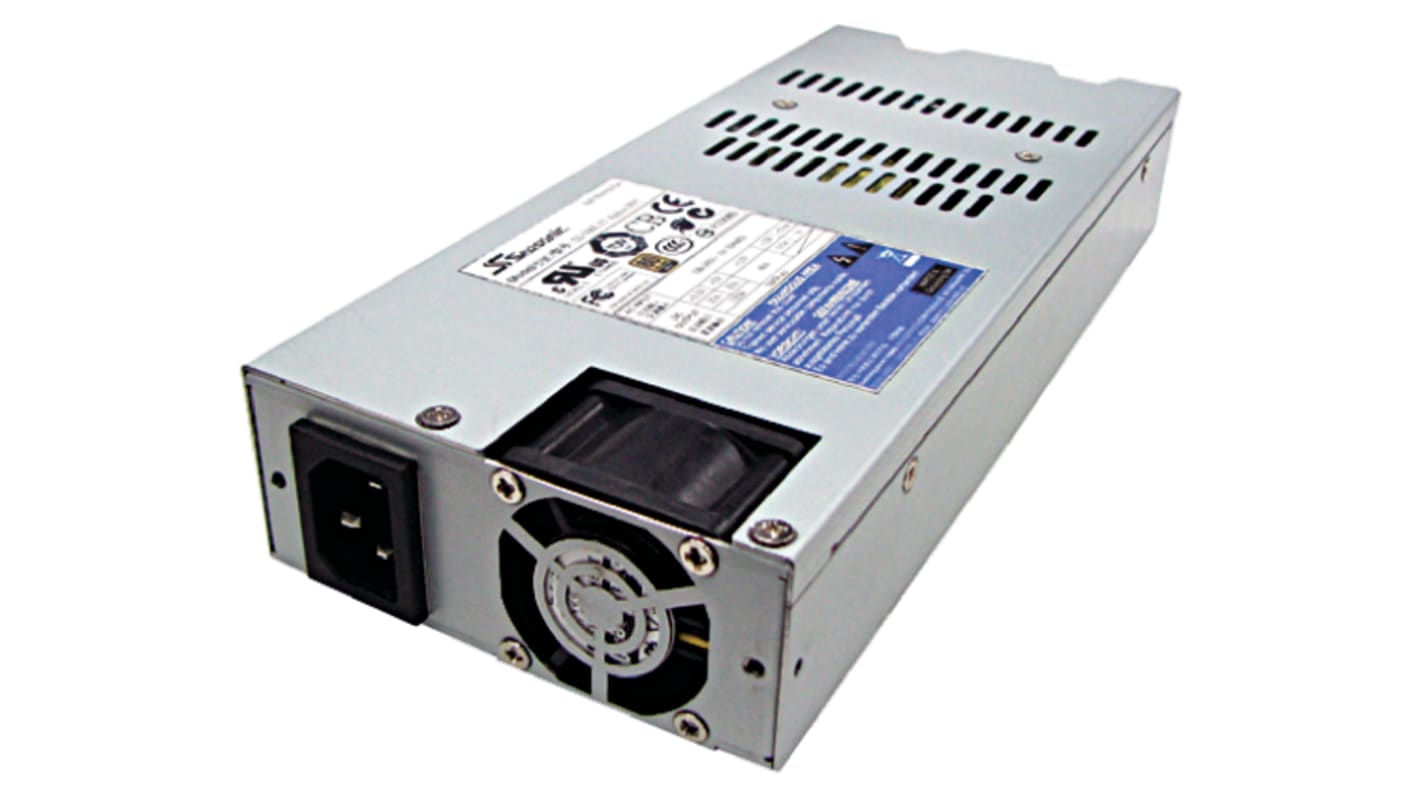

Seasonic 500W PC Power Supply, 100 → 240V ac Input, -12 V, 3.3 V, 5 V, 5 Vsb, 12 (Combined) V Output
- RS-artikelnummer:
- 754-2413
- Tillv. art.nr:
- SS-500L1U Active PFC
- Tillverkare / varumärke:
- Seasonic
Tillfälligt slut i lager – restorder för leverans 2024-05-16
Lagt till varukorgen
Pris (ex. moms) Varje
1 619,40 kr
(exkl. moms)
2 024,25 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 619,40 kr |
| 5 - 9 | 1 570,79 kr |
| 10 - 24 | 1 522,21 kr |
| 25 - 49 | 1 473,64 kr |
| 50 + | 1 425,07 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 754-2413
- Tillv. art.nr:
- SS-500L1U Active PFC
- Tillverkare / varumärke:
- Seasonic
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Seasonic SS-400/500L1U 400W & 500W 1U Rack Mount Computer AC-DC Power Supply, 80 Plus Gold
SS-400/500L1U 400W & 500W 1U rack mount computer AC-DC power supply with 99% active PFC , Intel EPS 12V specification compliance and 80 Plus Gold certification. These 1U rack mount AC-DC computer power supplies have full range AC input, low ripple and noise and low noise fan control, they also have high efficiency and reliability.
Intel EPS 12V specification compliance
Active PFC of 99% typical
DC to DC converter design
High efficiency of > 87%
Low total harmonic distortion (THD)
Low ripple and noise; 1%
Super low noise fan control
Over voltage and over power protection
Short circuit protection on all outputs
100% hi-pot test
100 % burn in, high temperature cycled on/off
FCC EMC compliance
Active PFC of 99% typical
DC to DC converter design
High efficiency of > 87%
Low total harmonic distortion (THD)
Low ripple and noise; 1%
Super low noise fan control
Over voltage and over power protection
Short circuit protection on all outputs
100% hi-pot test
100 % burn in, high temperature cycled on/off
FCC EMC compliance
Note
For output details please see table
Standards
cUL, TUV, CB
Specifikationer
Attribute | Value |
|---|---|
| Input Voltage | 100 → 240V ac |
| Output Voltage | -12 V, 3.3 V, 5 V, 5 Vsb, 12 (Combined) V |
| Power Rating | 500W |
| Output Current | 2.5 A, 20 A, 40 A, 300 mA |
| Number of Outputs | 1 |
| Length | 235mm |
| Width | 100mm |
| Depth | 40mm |
| Mounting Type | Rack Mount |
| Efficiency | >87% |
| Load Regulation | ±5% |
| Line Regulation | ±1% |
| Better World Verification | 80 Plus Gold |
| Better World Product | Yes |
