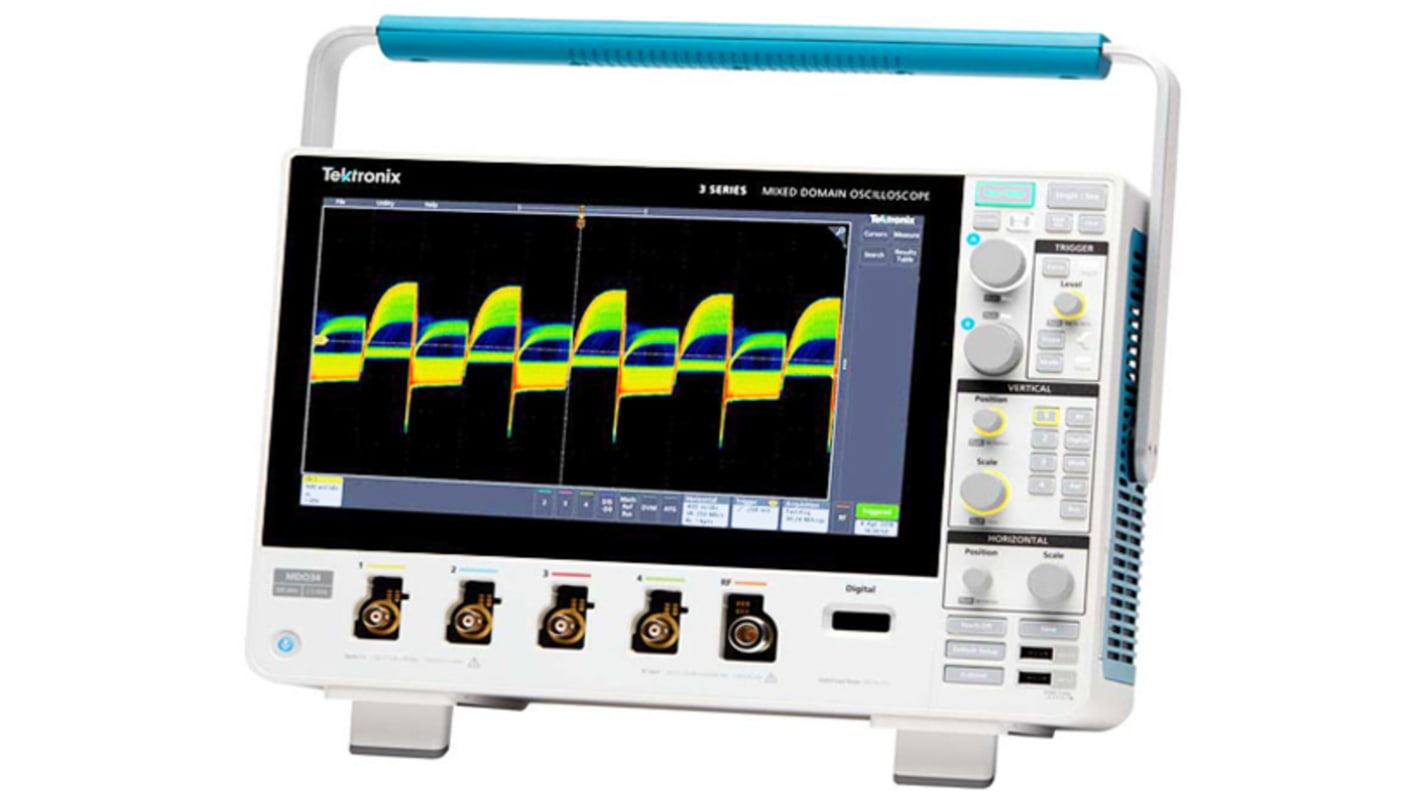

Tektronix MDO34 3 Series MDO Series Digital Bench Oscilloscope, 4 Analogue Channels, 350MHz, 16 Digital Channels - RS

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.

• 11.6-inch HD colour display, pinch, tap, swipe capacitive touchscreen
• Low-level signal measurement accuracy improved by as much as 40%
• Up to 5 GS/s sample rate on each analog channel
• More than 125 trigger combinations
• Dozens of automated measurements
• Wide range of available serial bus decode and trigger options
• Built-in 1GHz Spectrum Analyser
• DVM/Freq Counter (free on registration)
• Upgradeable options of Bandwidth, Spectrum Analyser up to 3Ghz, 16 Digital channel with MSO, 50 MHz Arbitrary / Function Generator and Advanced Analysis
• Software and application specific software options covering power, security, automotive, aerospace and several serial triggering options
• Enable remote-hybrid learning with TekScope™software and TekDrive collaborative workspace

3 Series Accessories
RS Stock No. 2409961 SC3 - Soft Carry Case
RS Stock No. 6978823 TEK-DPG - Deskew Pulse Generator Signal Source
RS Stock No. 113143 TEK USB-488 - GPIB to USB Adapter
Probes Options
RS Stock No. 7962696 TCP0020 Current Probe
RS Stock No. 7810807 TCP0030A Current Probe
RS Stock No. 7527357 THDP0200 Differential Probe
RS Stock No. 7973396 TPP0250 Passive Probe
RS Stock No. 7973390 TPP0500B Passive Probe
Software Options
SUP3 MSO (16 Digital Channels and P6136) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 BND (Application bundle serial and power options) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 AFG (Add arbitrary function generator) www.tek.com/en/products/oscilloscopes/3-series-mdo
TekScope™ www.tek.com/en/products/software/tekscope-pc-analysis-software
TekDrive www.tek.com/en/products/software/tekdrive
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Most Popular Software Options
SUP3 MSO (16 Digital Channels and P6136) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 BND (Application bundle serial and power options) www.tek.com/en/products/oscilloscopes/3-series-mdo
SUP3 AFG (Add arbitrary function generator) www.tek.com/en/products/oscilloscopes/3-series-mdo
TekScope™ www.tek.com/en/products/software/tekscope-pc-analysis-software
TekDrive www.tek.com/en/products/software/tekdrive
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Embedded Design
Embedded Serial Bus Analysis
Power Measurements and Analysis
Electromagnetic Interference (EMI) Troubleshooting
Education / Research Labs
IoT Design
Automotive
Industrial
Manufacturing Test & Production
ATE
Military / Government
