Teledyne LeCroy Oscilloscope Software for Use with WaveSurfer 3000z Oscilloscopes

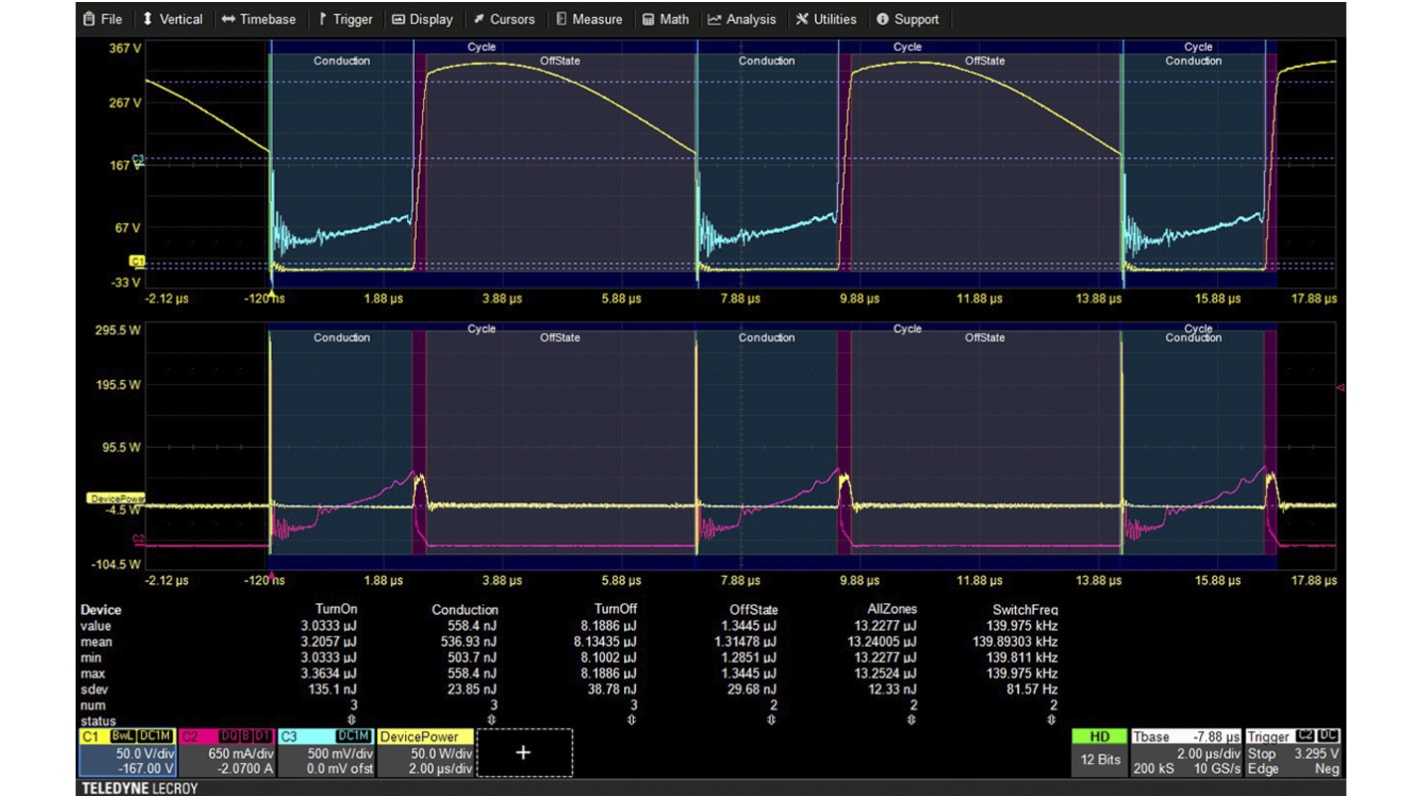

Teledyne LeCroy's Power Analyzer Package provides exceptional ability to measure and analyze the operating characteristics of power conversion circuits. Critical power switching device measurements, control loop modulation analysis, and line power harmonic testing are all simplified with a dedicated user interface and automatic measurements. Specially designed Teledyne LeCroy accessories, such as differential amplifiers, differential probes, current probes, and deskew fixtures, provide unparalleled measurement quality. The Power Analyzer package provides quick and easy setup of voltage and current inputs and makes measurements as simple as the push of a button. Tools are provided to help reduce sources of measurement errors, measurement parameters provide details of single cycle or average value over multiple cycles. Areas of power device turn-on and turn-off transitions, and conduction are all identified with color-coded waveform overlays.
