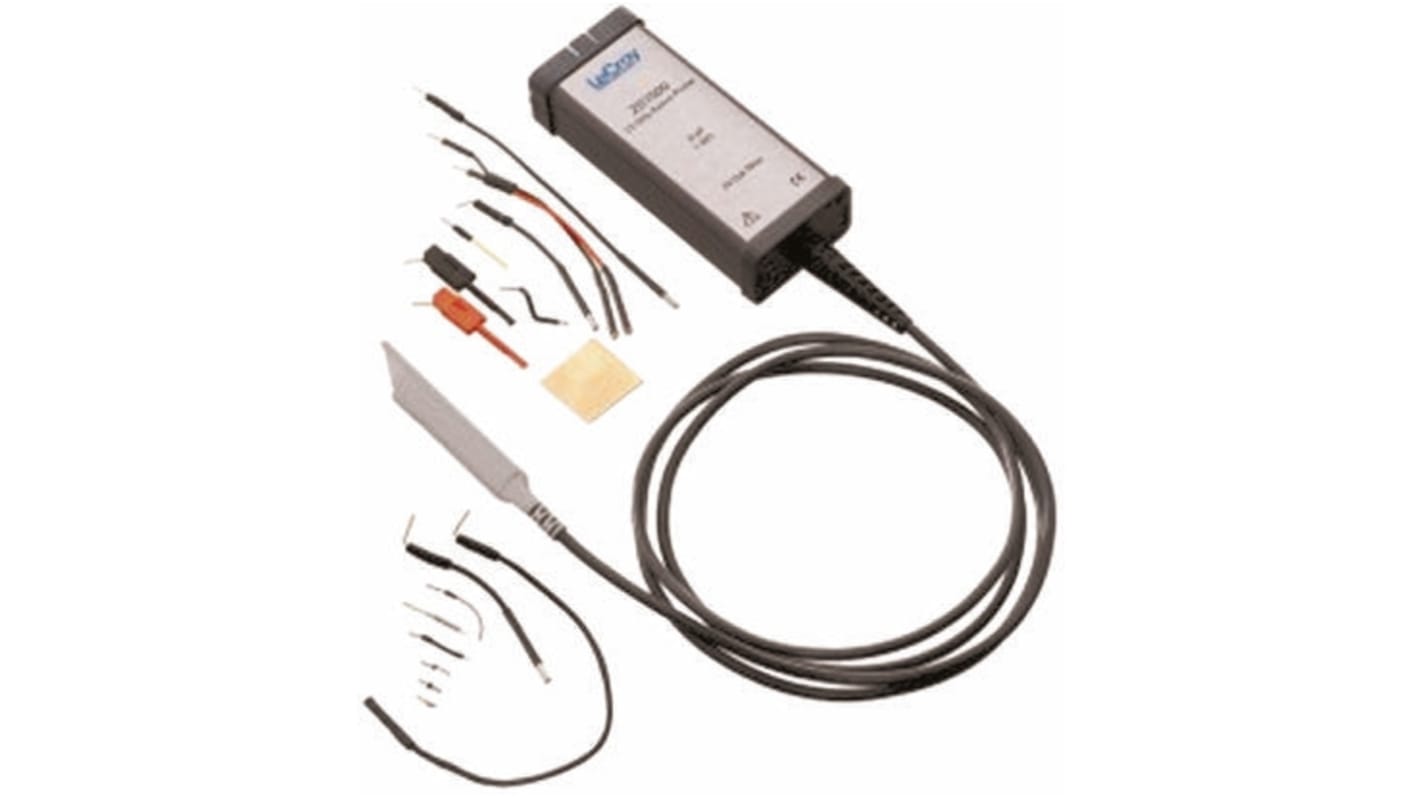

Teledyne LeCroy ZS Series ZS1000 Oscilloscope Probe, Active Type, 1GHz, 1:10, ProBus Connector
- RS-artikelnummer:
- 672-1706
- Tillv. art.nr:
- ZS1000
- Tillverkare / varumärke:
- Teledyne LeCroy
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
18 950,00 kr
(exkl. moms)
23 687,50 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 18 950,00 kr |
- RS-artikelnummer:
- 672-1706
- Tillv. art.nr:
- ZS1000
- Tillverkare / varumärke:
- Teledyne LeCroy
Lagstiftning och ursprungsland
RoHS-status: Undantagen
- COO (Country of Origin):
- DE
Produktdetaljer
Teledyne LeCroy ZS Series High Impedance Active Probes
The Teledyne LeCroy ZS Series of easy-to-use probes provide high impedance along with an extensive set of probe tips and ground accessories to handle wide-ranging probing scenarios. The high 1 MΩ input resistance and low 0.9 pF (0.6 pF with ZS4000) input capacitance means these probes are excellent for all frequencies.
The ZS Series probes provide full system bandwidth with all Teledyne LeCroy oscilloscopes featuring bandwidths of 4 GHz and lower. Small form combines with an extensive standard range of tip accessories to facilitate use in challenging situations as well as in probing test points spaced apart.
The ZS Series probes provide full system bandwidth with all Teledyne LeCroy oscilloscopes featuring bandwidths of 4 GHz and lower. Small form combines with an extensive standard range of tip accessories to facilitate use in challenging situations as well as in probing test points spaced apart.
Features and Benefits
- High signal fidelity to 4 GHz bandwidth
- Low circuit loading – high input impedance and low capacitance
- Choice of 4 GHz, 2.5 GHz and 1 GHz models
- 1 MΩ input resistance
- 0.6 pF (4 GHz) and 0.9 pF input capacitance
- ± 8 V input dynamic range, ± 12 V offset range
- Integrated with oscilloscope (ProBus interface for control from oscilloscope front panel)
- Wide variety of tips and grounds included
Applications
- Automotive
- Power applications
- Motor drive development
- Product design applications
Note
The ZS1000 is ideal for 200 → 600 MHz oscilloscopes
Supplied with
Square pin adapter, IC tip, bent tip, channel ID clips (set of 4 colours), copper tape pad (x2), freehand probe holder, ground blade (narrow), ground blade (wide), micro-grabber (pair), offset ground-Z lead, pogo ground lead, pogo tip, probe tip - standard (x3), right angle lead (long), right angle lead (short), right angle socket, straight pin lead (long), straight pin lead (short), Y-lead adapter
Specifikationer
Attribute | Value |
|---|---|
| Probe Type | Active |
| Attenuation | 1:10 |
| Bandwidth | 1GHz |
| Connector Type | ProBus |
| Model Number p | ZS1000 |
| Series | ZS |
