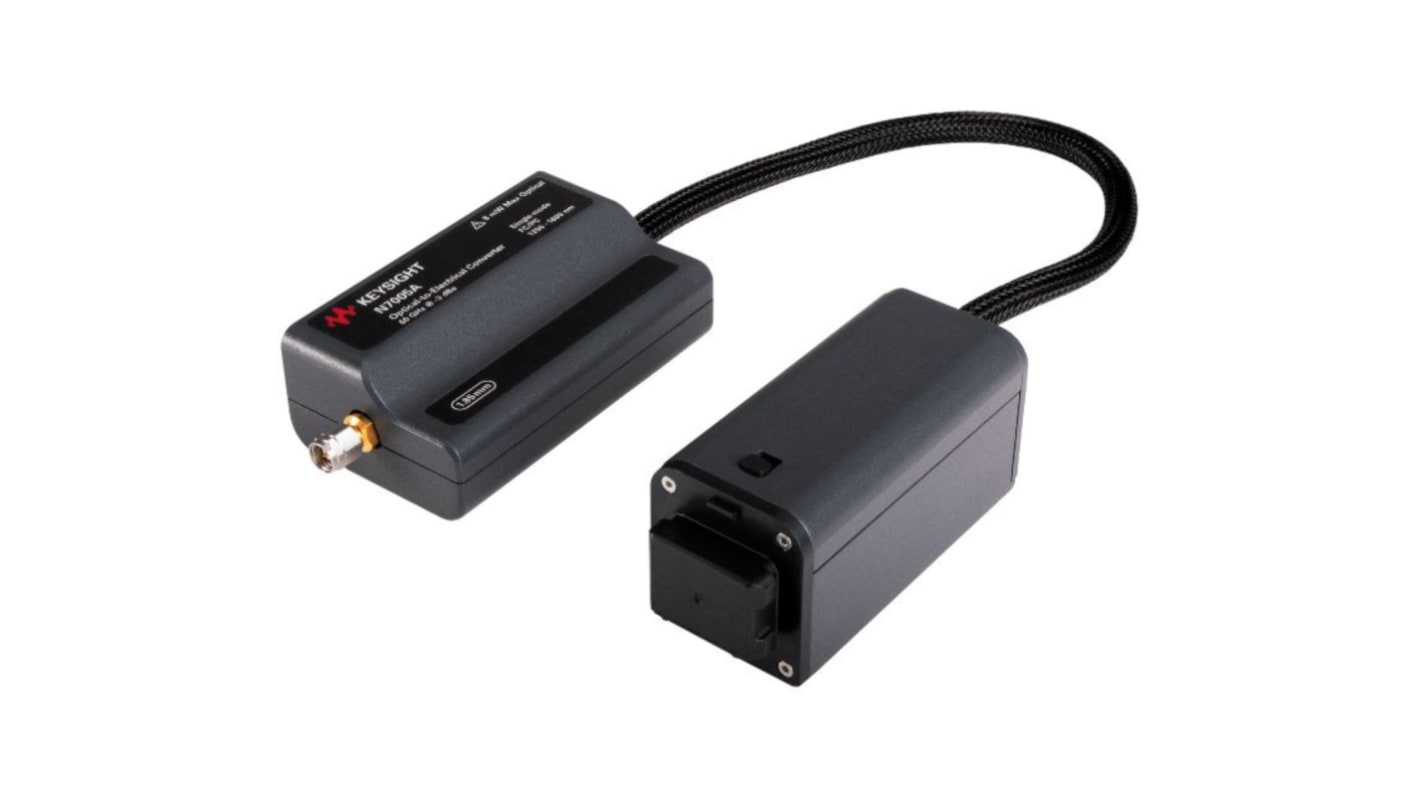

Keysight Technologies N7005A Test Probe Accessory Kit, For Use With UXR Series

The Keysight Technologies optical-to-electrical converter is a 60 GHz (-3dB, Brick wall) O/E converter compatible with the Keysight UXR oscilloscope with AutoProbe III 1.85 mm or 1 mm input. The frequency response of a DSP corrected N7005A is either flat up to 60 GHz Brick wall response or it follows a 4th order Bessel Thomson response until it hits the Brick wall at 70 GHz. The N7005A used in conjunction with 70 GHz Infiniium UXR oscilloscope supports 4th order Bessel Thomson response to view optical streams at speeds up to 56 Gbaud PAM4, making this the ideal solution for characterizing or troubleshooting high-speed optical signals in system level testing and debugging.

Calibrated vertical scales at 1310 nm and 1550 nm wavelengths
FlexDCA SW supports PAM4 measurement capabilities such as TDECQ
Measured S parameter filters for optimized DSP filters on every O/E
Single-mode (9 μm) optical fibre input, FC/PC compatible
