    Pico Technology,Differential Oscilloscope Kit High-Resolution Differential Oscilloscope, PicoConnect 441 1:1 Passive

    RS-artikelnummer:
    136-5307
    Tillv. art.nr:
    PicoScope 4444 standard kit
    Tillverkare / varumärke:
    Pico Technology
    Pico Technology
    Se alla Oscilloscope Kits
    Tillfälligt slut i lager restorder för leverans 2022-12-14
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    17 958,71 kr

    (exkl. moms)

    22 448,39 kr

    (inkl. moms)

    EnheterPer unit
    1 +17 958,71 kr
    RS-artikelnummer:
    136-5307
    Tillv. art.nr:
    PicoScope 4444 standard kit
    Tillverkare / varumärke:
    Pico Technology

    Datablad


    Lagstiftning och ursprungsland


    Produktdetaljer

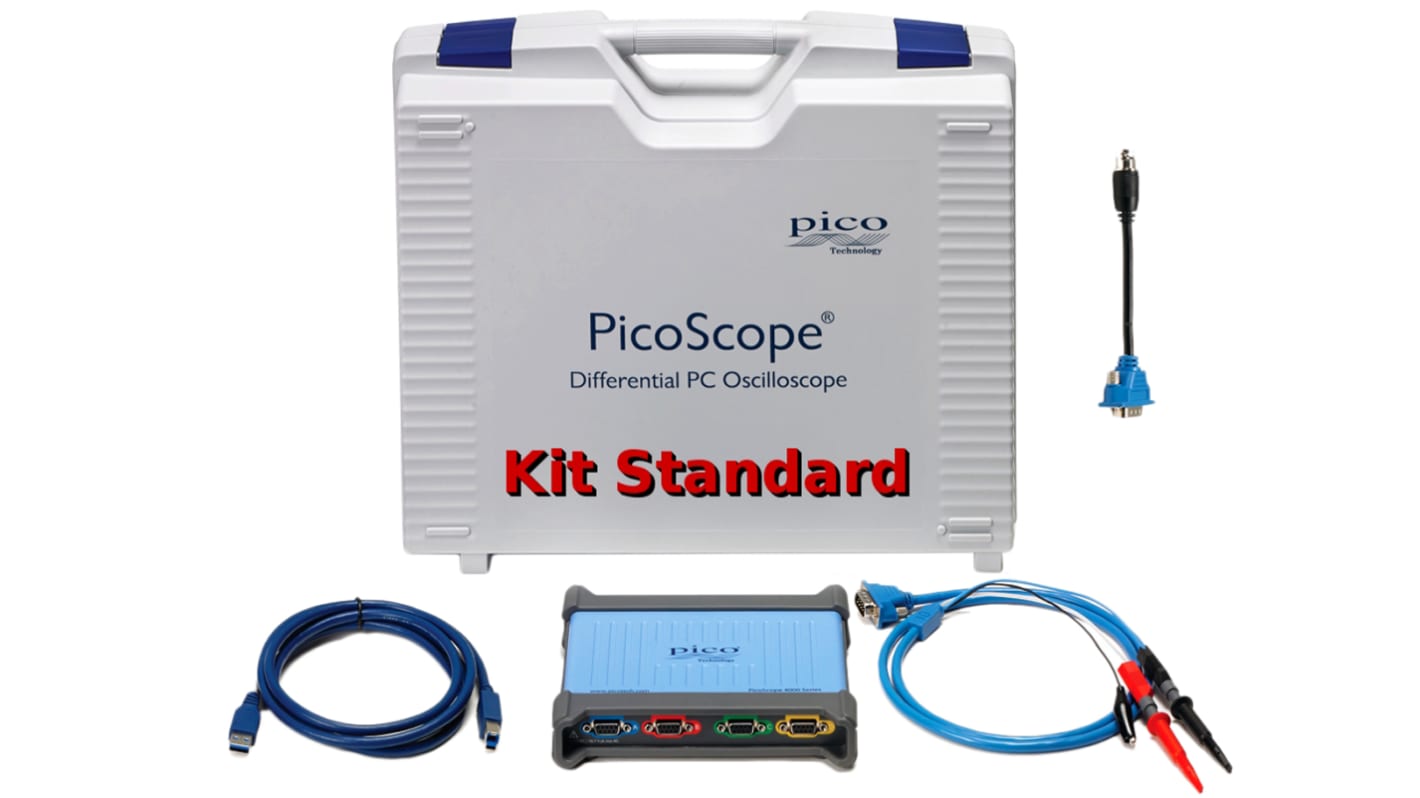

    Picoscope 4444 Standard High Resolution Differential Oscilloscope Kit


    The PICOSCOPE 4444 STANDARD KIT from Pico Technology is a high-resolution differential USB oscilloscope with three PicoConnect 441 1:1 passive differential voltage probes and one TA271 single-ended D9-BNC adaptor. The PicoScope 4444 uses specially designed passive voltage probes that have smaller and lighter (or no) interface boxes makes multiple differential measurements at the same time while never occupying more than one power socket. It's intelligent probe interface automatically configures the PicoScope display to probes. The four D9 inputs allow to make true differential measurements. The 12bit resolution of the PicoScope 4444 offers 16 times as much vertical detail and its deeper capture memory of 256MS gives it greater horizontal resolution. It is used in non-ground-referenced measurements, safe probing of single phase and 3-phase voltages and currents, measuring power drawn by mobile and IoT devices, hybrid and electric vehicle design, motor drives and inverters.


    Features and Benefits


    FFT spectrum analyzer, high resolution offers 64x more detail

    Hardware acceleration engine (HAL3), 100000 waveforms per second

    Maximum input range at full scale is ±50V (±1000V using the PicoConnect 442 1000V CAT III probe)

    Maximum common-mode range is also ±50V (also ±1000V with the PicoConnect 442 probe)

    Interface for intelligent probes and clamps, 4 fully differential high impedance inputs

    Low voltage probe for millivolts to 50V and 20MHz bandwidth

    1000V CAT III probe for high voltage applications

    Waveform buffer and navigator



    Pico PC Based Instruments


    Specifikationer

    AttributeValue
    Model NumberPQ073
    For Use WithPicoScope 4444 Differential Oscilloscope
    Kit TypeDifferential Oscilloscope Kit
    Kit ContentsHigh-Resolution Differential Oscilloscope, PicoConnect 441 1:1 Passive Differential Voltage Probes x 3, TA271 Single Ended D9-BNC Adapter
    Dimensions190 x 170 x 40mm
    Height40mm
    Length190mm
    Width170mm
