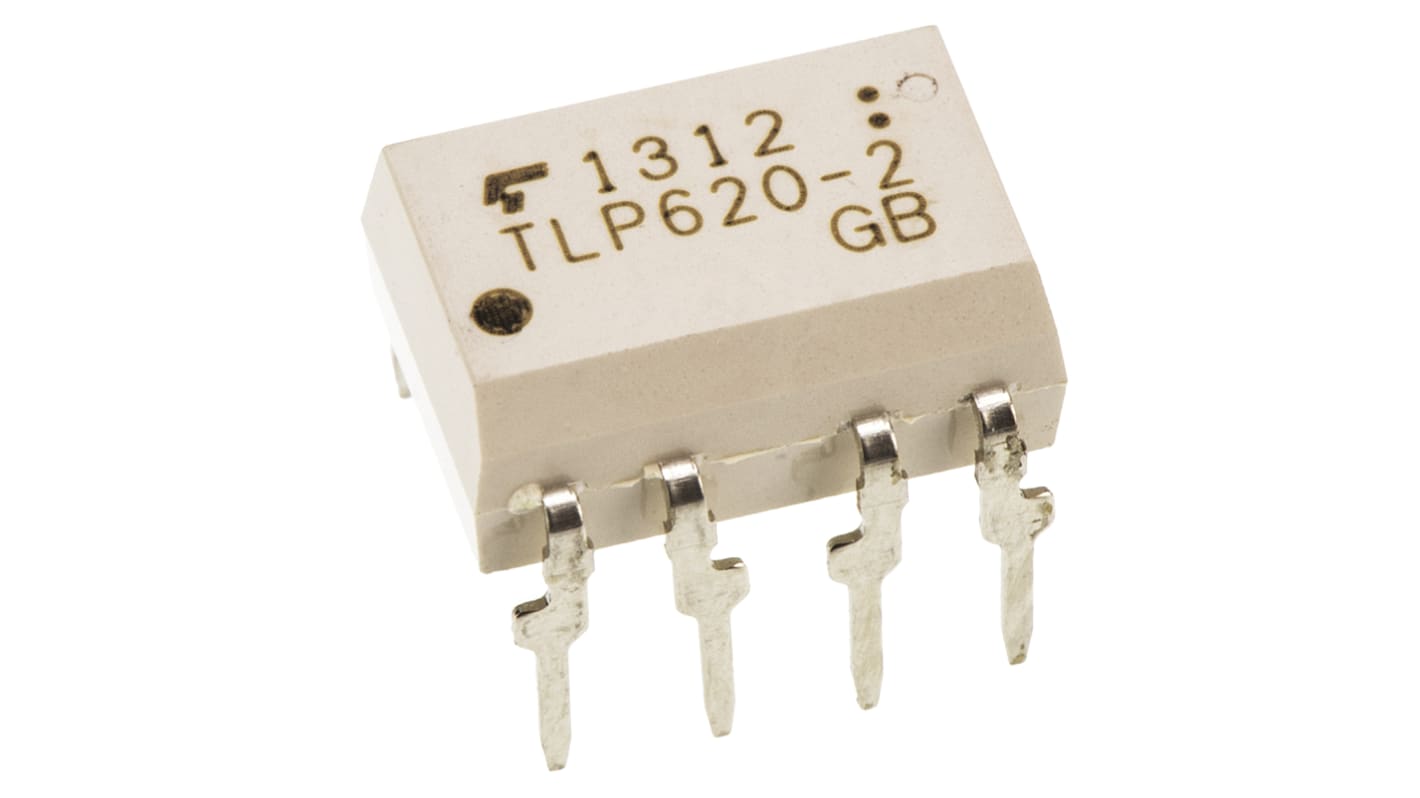

Toshiba, TLP620-2(F) AC Input Transistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP
- RS-artikelnummer:
- 625-8299
- Tillv. art.nr:
- TLP620-2(F)
- Tillverkare / varumärke:
- Toshiba
194 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
21,51 kr
(exkl. moms)
26,89 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 21,51 kr |
| 10 - 49 | 15,08 kr |
| 50 - 99 | 13,64 kr |
| 100 - 499 | 11,98 kr |
| 500 + | 10,09 kr |
- RS-artikelnummer:
- 625-8299
- Tillv. art.nr:
- TLP620-2(F)
- Tillverkare / varumärke:
- Toshiba
Lagstiftning och ursprungsland
Produktdetaljer
Photocoupler, AC-Input, Transistor Output, Toshiba
A range of photocouplers from Toshiba incorporating dual inverse parallel connected LEDs making them suitable for bipolar input currents. These AC input photocouplers have transistor outputs.
Approvals
UL E67349
Optocouplers, Toshiba
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | Transistor |
| Maximum Forward Voltage | 1.3V |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Package Type | PDIP |
| Input Current Type | AC |
| Typical Rise Time | 2µs |
| Maximum Input Current | 50 mA |
| Isolation Voltage | 5 kVrms |
| Maximum Current Transfer Ratio | 600% |
| Minimum Current Transfer Ratio | 50 % |
| Typical Fall Time | 3µs |
