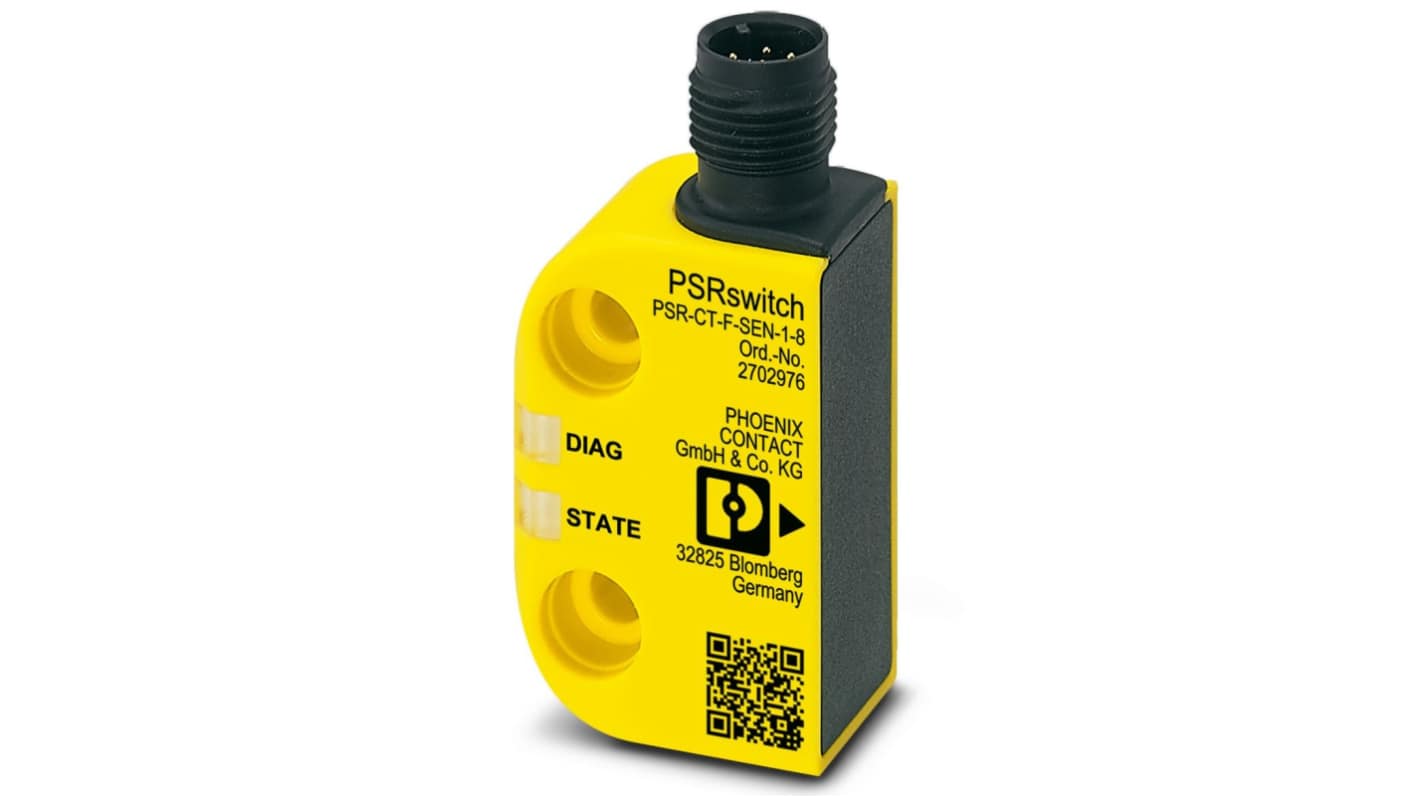

Phoenix Contact PSR-CT-F-SEN-1-8 Series Thermoplastic Safety Switch, 24V dc, 2, M12
- RS-artikelnummer:
- 239-5130
- Tillv. art.nr:
- 2702976
- Tillverkare / varumärke:
- Phoenix Contact
Pris (ex. moms) Each
1 599,60 kr
(exkl. moms)
1 999,50 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 599,60 kr |
- RS-artikelnummer:
- 239-5130
- Tillv. art.nr:
- 2702976
- Tillverkare / varumärke:
- Phoenix Contact
- COO (Country of Origin):
- DE
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
The Phoenix Contact PSR-CT safety circuit consists of a combination of a PSR-CT-...-SEN-1-8 sensor with varying coding types and a coded PSR-CT-C-ACT actuator. It provides maximum tamper protection and the highest level of safety in accordance with EN ISO 14119. The PSR-CT safety circuit is available with the following types of coding: Fixcode: For the sensor to detect the actuator, the actuator must first be associated with the sensor via a learning process. The learning process can only be completed once. The sensor and actuator are then permanently assigned to each other by their coding. Safety circuits with fixcode evaluation achieve a high coding level.
Integrated reset function on the switch
4 actuation settings, 3 travel directions
Tamper protection via RFID transponder technology
Rapid diagnostics, to comprehensive status information
Consistent M12 connection technology for convenient installation
Sup
Specifikationer
| Attribute | Value |
| Supply Voltage | 24V dc |
| Safety Contacts | 2 |
| Housing Material | Thermoplastic |
| Connection Type | M12 |
| Actuator Type | Magnetic |
| Auxiliary Contacts | 1 |
| Series | PSR-CT-F-SEN-1-8 |
| IP Rating | IP67 |
| Length | 37mm |
| Width | 15mm |
