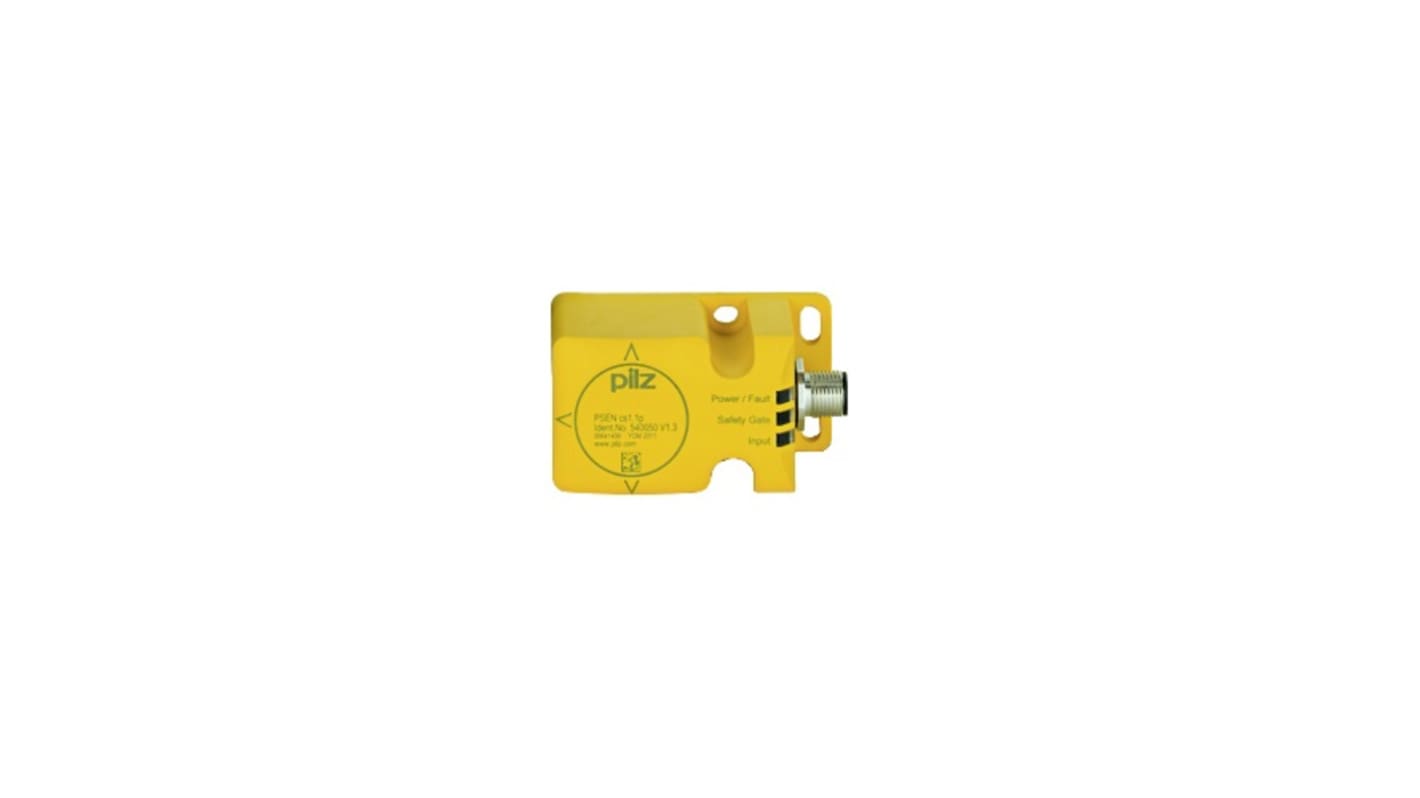

Pilz 540 Series Transponder Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, M12

The Pilz RFiD safety switch features 2 safe SC outputs and an 8-pin M12 male connector. It supports four actuation directions and is equipped with SDD (Safe Diagnostic Data) functionality. The switch has an IP67 rating, ensuring it is resistant to dust and water. With a switching distance of 21 mm, a safety actuator operating distance (Sao) of 15 mm, and a response distance (Sar) of 40 mm, it provides reliable and precise operation. This coded switch does not include an actuator and is designed for 24 V DC supply voltage with a power consumption of 2 W. It also includes 2 inputs, with a DC voltage of 24 V at the input.

CE and UKCA approved
Transponder sensor
