Martindale ET4 Multifunction Tester, UKAS Calibration

Se alla Multifunction Testers

Antal (1 enhet)*

2 704,45 kr

(exkl. moms)

3 380,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 5 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +2 704,45 kr

*vägledande pris

RS-artikelnummer:
788-0743
Tillv. art.nr:
RSET4
Tillverkare / varumärke:
Martindale
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Martindale

Calibrated

UKAS

Model Number p

ET4

Maximum Voltage Measurement

600V ac

Weight

200g

Safety Category Level

CAT III

Safety Category Voltage

600V

Battery Type

9V

Safety Category

CAT III 600V

Display Type

LCD

Maximum Operating Temperature

+40°C

Width

51mm

Length

202.5mm

Power Source

Battery

Height

44mm

Dimensions

202.5 x 51 x 44mm

Minimum Operating Temperature

0°C

RoHS-status: Undantagen

COO (Country of Origin):
TW

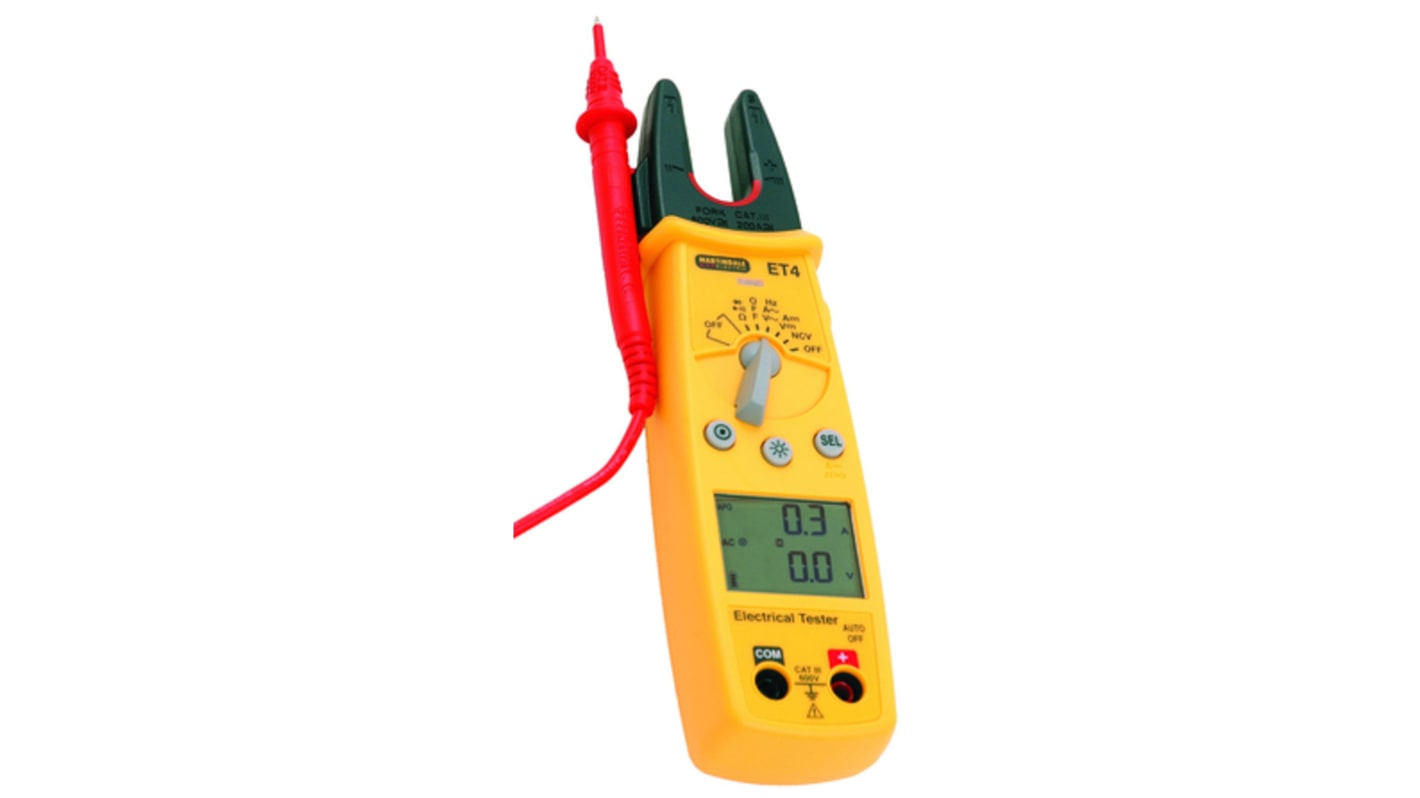

ET4 Electrical Tester


The Martindale ET4 is a compact electrical tester for measuring voltage, resistance and current. The electrical tester also has frequency, continuity and diode test functions and can also be used as a non-contact voltage indicator. It has the additional functions including auto power off, display hold.

Features include:


AC / DC Current: 0.1A to 200A
AC / DC Voltage: 0.1mV to 600V
Resistance: 0.1Ω to 50MΩ
Frequency: 30Hz to 400Hz
Continuity: 0.1Ω to 500Ω, buzz at <30Ω
Diode Test: 1mV to 2V
Non-Contact Voltage Indicator: 70V to 600V
Fork maximum conductor size: 15mm diameter
Power: 9V PP3 Alkaline (included)
Low battery indication
Simultaneous measurement
Display backlight
Auto ranging
Dimensions: 202 x 51 x 44 mm
Weight: 200 g (battery included)

SAFETY

Conforms to BS EN 61010-1, BS EN 61010-2-032, CAT III 600 V
Class II, Double Insulation
Pollution Degree 2, indoor use

EMC

Conforms to BS EN 61326-1

The ET4's versatility extends beyond basic safety checks, offering a comprehensive suite of functions that empower users to thoroughly assess the integrity of their electrical systems. It features:
  • AC and DC Voltage Measurement up to 600V, ensuring users can identify and mitigate potential electrical hazards.

  • Current Measurement - measures AC and DC currents up to 200A, enabling users to assess the health of electrical circuits and identify any overloads.

  • Resistance Measurement - values up to 50MΩ, ensuring the integrity of electrical connections and components.

  • Frequency Measurement - measures the frequency of AC waveforms, ensuring compatibility with various electrical applications and equipment.

  • Continuity Testing - identifies the presence of continuity in circuits, ensuring the integrity of electrical connections and preventing short circuits.

  • Diode Testing - determines the functionality of diodes, ensuring proper current flow in various electrical circuits.

Supplied with

ET4 electrical tester, TL17 test leads, soft carry case, 9V battery, instruction manual
