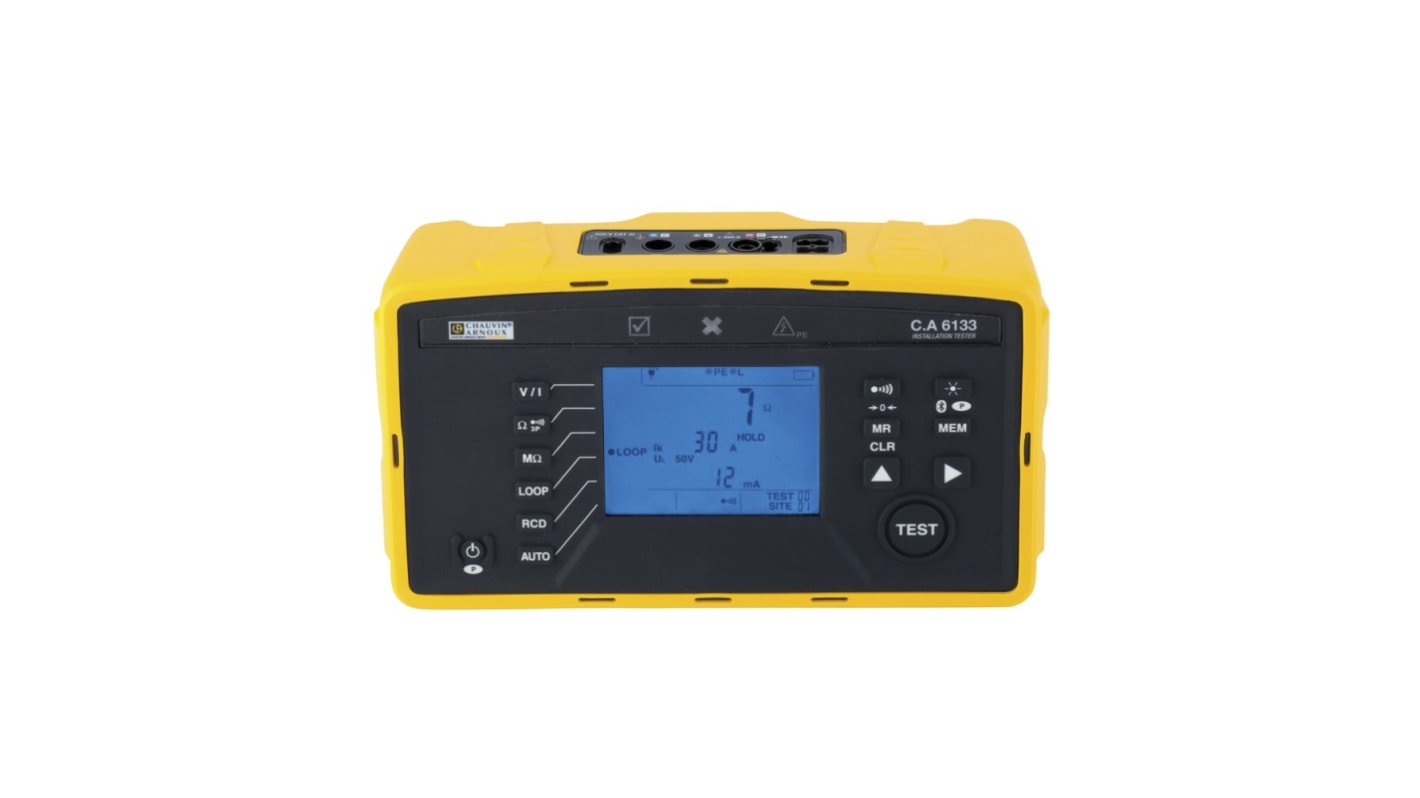

Chauvin Arnoux CA 6133 Multifunction Tester, 250V , Earth Resistance Measurement
- RS-artikelnummer:
- 187-2159
- Distrelec artikelnummer:
- 301-55-477
- Tillv. art.nr:
- P01146013
- Tillverkare / varumärke:
- Chauvin Arnoux
Antal (1 enhet)*
9 977,18 kr
(exkl. moms)
12 471,48 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
- 2 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 1 enhet(er) från den 26 februari 2026
Enheter | Per enhet |
|---|---|
| 1 + | 9 977,18 kr |
*vägledande pris
- RS-artikelnummer:
- 187-2159
- Distrelec artikelnummer:
- 301-55-477
- Tillv. art.nr:
- P01146013
- Tillverkare / varumärke:
- Chauvin Arnoux
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Loop Impedance Test Type | Line to Earth, Phase to Earth, Phase to Neutral, Phase to Phase | |
| Automatic RCD Test | Yes | |
| Model Number p | CA 6133 | |
| RCD Ramp Test | Yes | |
| Non-Tripping | Yes | |
| Insulation Test Voltage | 250 V, 500V | |
| Maximum Voltage Measurement | 550 V ac, 800V dc | |
| Test Type | Continuity, Current, Earth, Insulation, RCD, Voltage, Resistance, frequency | |
| Earth Resistance Measurement | Yes | |
| Downloadable Data | No | |
| Continuity Test Current | 200mA | |
| RCD Test Type | A, AC | |
| Remote Switch Mode | Yes | |
| IP Rating | IP54 | |
| Test Standards | IEC 61557 | |
| Display Type | LCD | |
| Minimum Continuity Resistance | 0.01Ω | |
| Maximum Operating Temperature | +40°C | |
| Width | 70mm | |
| Battery Type | LR06 AA | |
| Length | 223mm | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 223 x 70 x 126mm | |
| Safety Category Voltage | 300 V, 600 V | |
| Safety Category Level | CAT II, CAT III | |
| Weight | 700g | |
| Maximum Continuity Resistance | 99.99kΩ | |
| Power Source | Battery, Mains | |
| Safety Category | CAT II 300 V, CAT III 600 V | |
| Height | 126mm | |
| Välj alla | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Loop Impedance Test Type Line to Earth, Phase to Earth, Phase to Neutral, Phase to Phase | ||
Automatic RCD Test Yes | ||
Model Number p CA 6133 | ||
RCD Ramp Test Yes | ||
Non-Tripping Yes | ||
Insulation Test Voltage 250 V, 500V | ||
Maximum Voltage Measurement 550 V ac, 800V dc | ||
Test Type Continuity, Current, Earth, Insulation, RCD, Voltage, Resistance, frequency | ||
Earth Resistance Measurement Yes | ||
Downloadable Data No | ||
Continuity Test Current 200mA | ||
RCD Test Type A, AC | ||
Remote Switch Mode Yes | ||
IP Rating IP54 | ||
Test Standards IEC 61557 | ||
Display Type LCD | ||
Minimum Continuity Resistance 0.01Ω | ||
Maximum Operating Temperature +40°C | ||
Width 70mm | ||
Battery Type LR06 AA | ||
Length 223mm | ||
Minimum Operating Temperature 0°C | ||
Dimensions 223 x 70 x 126mm | ||
Safety Category Voltage 300 V, 600 V | ||
Safety Category Level CAT II, CAT III | ||
Weight 700g | ||
Maximum Continuity Resistance 99.99kΩ | ||
Power Source Battery, Mains | ||
Safety Category CAT II 300 V, CAT III 600 V | ||
Height 126mm | ||
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Continuity measurement at 0.2A
Insulation testing
RCD testing: current and trip time
Automatic test sequences
Storage of test results
ANDROID application for report generation
Power supply by mains-rechargeable batteries, USB socket or vehicle cigarette lighter
