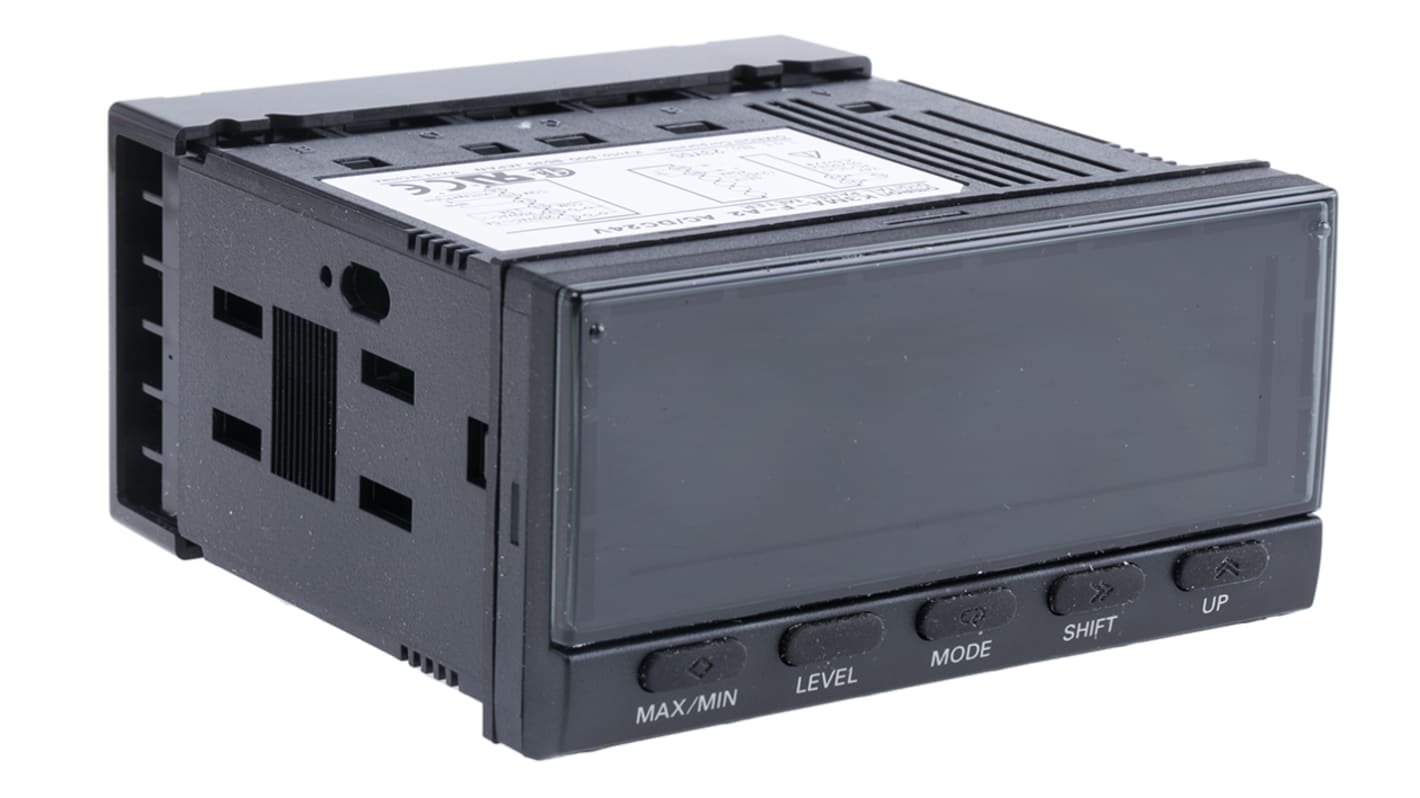

Omron K3MA-F LCD Digital Panel Multi-Function Meter for Frequency, 48mm x 96mm

This digital panel multi-function meter is designed for precise frequency measurement in various industrial applications. The device features an LCD display that allows users to track readings clearly, even in challenging environments. With a compact depth of 80mm and a robust front panel design, it is suitable for installation in tight spaces while maintaining high visibility.

• Highly visible LCD display with dual-colour LEDs for clear reading
• Front-panel key operation allows for straightforward configuration
• Programmable scaling and hold functions enhance measurement flexibility
• Average processing function minimises display flicker for reliable readings
• Non-volatile memory protects settings from power loss

• Monitoring frequency from motors or generators
• Used for measuring feed rates in conveyor systems
• Ideal for tracking rotation speeds in mixers or churners
• Utilised in HVAC systems for accurate flow measurement
• Used in quality control within manufacturing processes

The front-panel key operation enables users to adjust settings directly on the device, streamlining setup and allowing for quick changes during operation without needing additional tools or software.

The unit features a NEMA 4X-rated front panel, ensuring it withstands exposure to water and dust, making it ideal for challenging industrial conditions where reliability is essential.

Yes, it supports several input types, including no-voltage contact and open collector inputs, allowing for accurate measurement of pulsed signals from various sensors.

Omron K3MA Series

Highly visible LCD display with 2-colours (red and green) which can be used as either green or red or combined to give status indication
Front-panel key operation for easy setting
96 x 48 mm front housing and the same short depth of 80mm
Front-panel key operation for easy setting
Average processing function suppresses flicker
Easy confirmation of max/min display
Finger protective cover (standard equipment) protects against electric shock
Water- and dust-proof NEMA4X (IP66 equivalent) front panel
Dimensions: 101.2 x 97 x 48 mm. Panel cut-out: 92 x 45 mm
