RS PRO 7 Segment LED Digital Panel Multi-Function Meter for Resistance, Temperature
- RS-artikelnummer:
- 188-3478
- Tillverkare / varumärke:
- RS PRO
Se alla Multi Function Panel Meters
5 I lager för avsändande samma dag
Pris (ex. moms) Each
2 874,16 kr
(exkl. moms)
3 592,70 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 874,16 kr |
- RS-artikelnummer:
- 188-3478
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CZ
Produktdetaljer

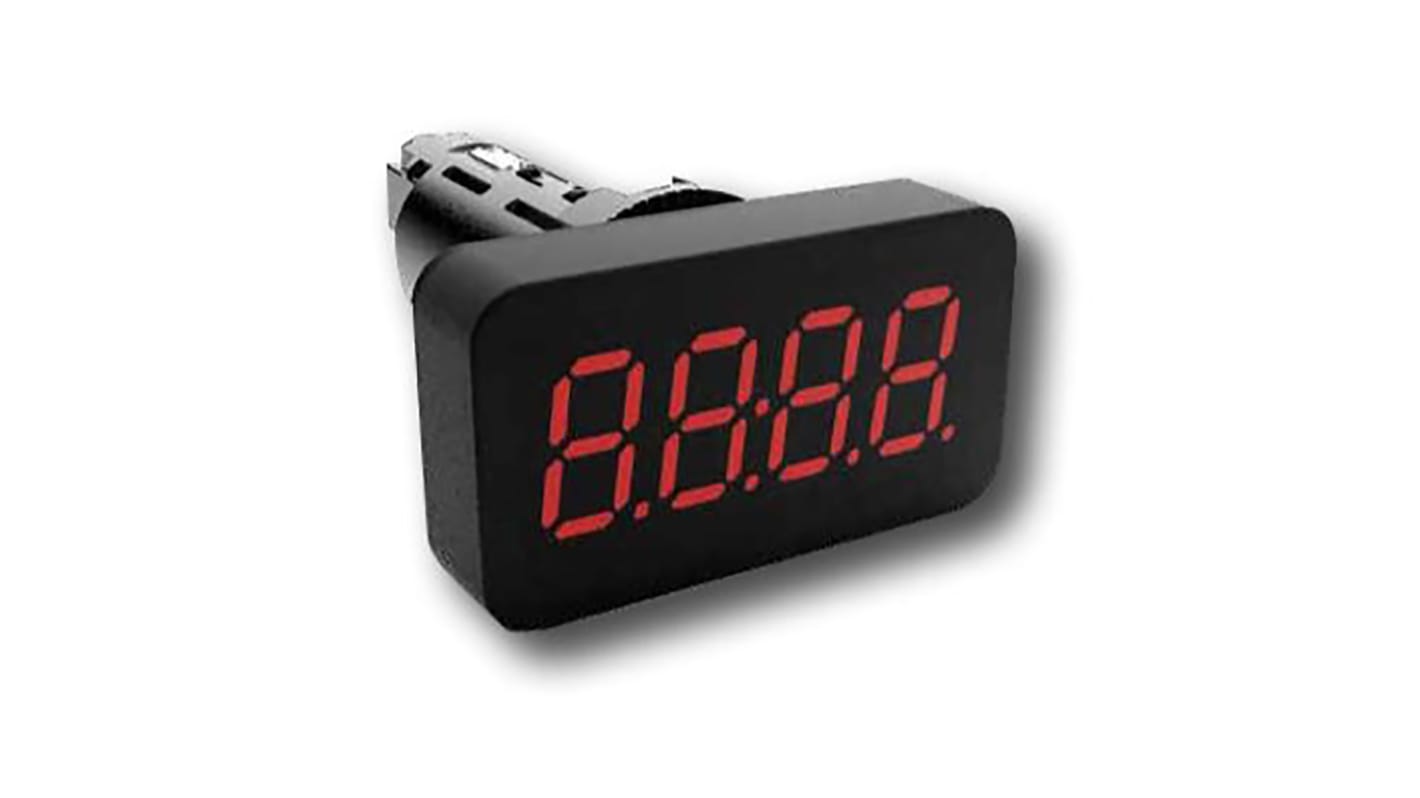

RS PRO 4-Digit Temperature Display
The RS PRO 4 digit temperature display has a thermometer for resistive Pt/Ni sensors of Pt 100/500/1 000, Ni 1 000/10 000, 0 to 3900ohm. It has a supply voltage rating of 24VAC/DC. The meter has a depth of 66mm, digits height of 14mm. This instrument is based on a microcontroller and an A/D converter, which ensures good accuracy and easy operation of the instrument. The 22mm cross-section of the circular instrument body allows for convenient mounting into mosaic and signalling panels.
Features and Benefits
• 4-digit programmable projection
• Digital filters
• Operating temperature ranges between -20°C and 60°C
• The instrument is set and controlled by two buttons located on the body
• Digital filters
• Operating temperature ranges between -20°C and 60°C
• The instrument is set and controlled by two buttons located on the body
Specifikationer
Attribute | Value |
|---|---|
| Properties Measured | Resistance, Temperature |
| Display Type | 7 Segment LED |
| Number of Digits | 4 |
| Depth | 66mm |
| Digit Height | 14 mm |
| Minimum Temperature | -20°C |
| Maximum Temperature | +60°C |
| Measurement Range | 0 → 3900 (Resistance) Ω, -200 → +250 (Ni) °C, -200 → +450 (Pt, RU) °C, -50 → +250 (Ni) °C, -50 → +450 (Pt, EU) °C, -50 → +450 (Pt, US) °C |
| Minimum Measurement | 0 (Resistance) Ω, -200 (Ni) °C, -200 (Pt, RU) °C, -50 (Ni) °C, -50 (Pt, EU) °C, -50 (Pt, US) °C |
| Meter Type | Digital |
