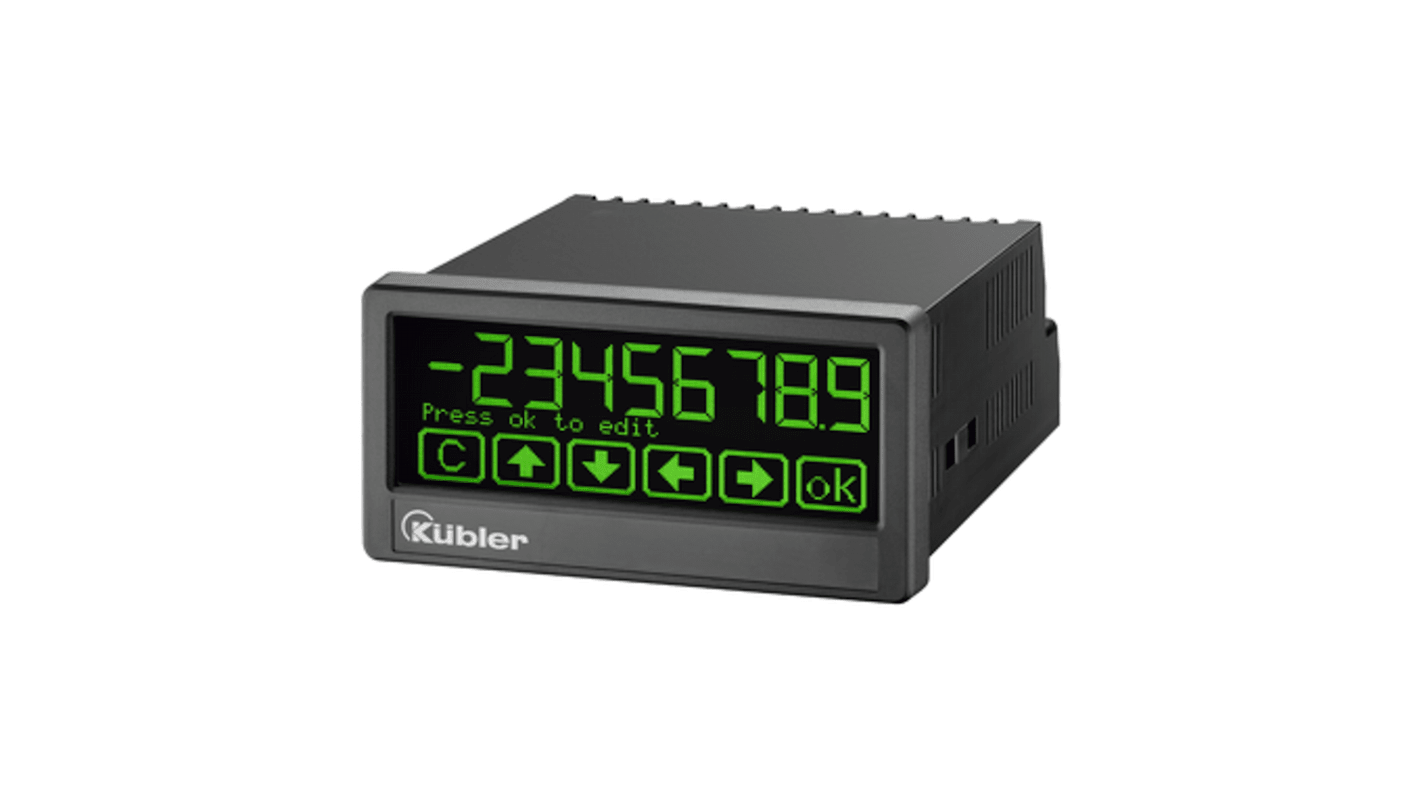

Kubler 573T LCD Process Meter for Current, Voltage, Frequency, 96 mm x 48 mm

Se alla Multi Function Panel Meters

Antal (1 enhet)*

7 145,82 kr

(exkl. moms)

8 932,28 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 30 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +7 145,82 kr

*vägledande pris

RS-artikelnummer:
179-7755
Tillv. art.nr:
6.573T.010.E02
Tillverkare / varumärke:
Kubler
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Kubler

Properties Measured

Current, Voltage, Frequency

Product Type

Process Meter

Display Type

LCD

Cutout Height

96mm

Depth

114mm

Cutout Width

48mm

Number of Digits

8

Digit Height

13mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Series

573T

COO (Country of Origin):
DE
The process controller with 2 analog inputs can be used in both single channel mode as well as in dual channel. In dual channel mode, all arithmetic operations are available for displaying the sum total, difference, ratio or the product. Inputs and outputs can be scaled separately. Can be used as a simple process signal converter, process controller (ON/OFF controller) or for complex measuring tasks,where the relationship between two values, one to the other, must be monitored, calculated or further processed in a higher-level controller.

2 separate freely scalable analog inputs ±10 V and 0/4 ... 20 mA, resolution 16 bit

Tare function – the unit can be set to 0 for any input voltage

Programmable linearization: with up to 24 control points, input via key-pad or via the teach-in function

Averaging measurement over 2 to 16 measuring cycles, for use with serious fluctuations of the input signals

Easy to programme

Fast 1 ms sampling rate per channel alternating
