Name: Festo 700 W Servo Drive, 230 V ac, 1 Phase, 5.6 A, Manual, Homing, Current Controller, Speed Controller, Positioning
Brand: Festo
SKU: 193-551
Price: 16479.68 SEK
Availability: OutOfStock

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Product Type	Servo Drive
	Number of Phases	1
	Control Function	Manual, Homing, Current Controller, Speed Controller, Positioning
	Supply Voltage	230 V ac
	Output Voltage	230 V
	Current Rating	5.6 A
	Power Rating	700W
	IP Rating	IP20
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Series	CMMT-AS
	Standards/Approvals	RCM trademark, UKCA, CE, TÜV, EN 60204, EN 62061, RoHS, cULus, EN 50581, EN 61800
	Distrelec Product Id	303-96-276

	Välj alla
	Brand Festo
	Product Type Servo Drive
	Number of Phases 1
	Control Function Manual, Homing, Current Controller, Speed Controller, Positioning
	Supply Voltage 230 V ac
	Output Voltage 230 V
	Current Rating 5.6 A
	Power Rating 700W
	IP Rating IP20
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Series CMMT-AS
	Standards/Approvals RCM trademark, UKCA, CE, TÜV, EN 60204, EN 62061, RoHS, cULus, EN 50581, EN 61800
	Distrelec Product Id 303-96-276

COO (Country of Origin):: DE

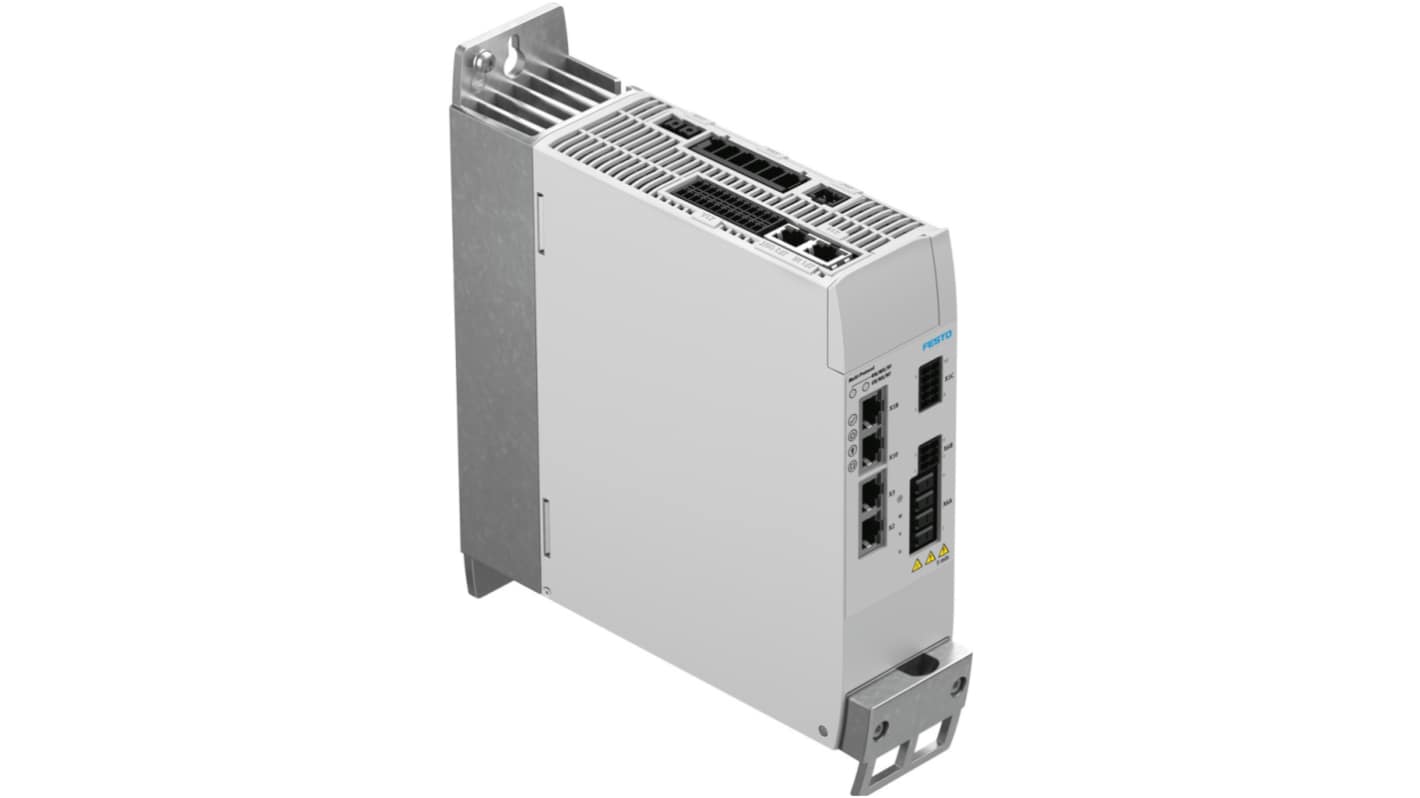

Festo Servo Drive, 5.6A Current Rating, 700W Power Rating - CMMT-AS-C4-3A-MP-S1, Numeric Part Number: 8143164

This servo drive provides accurate control for a range of industrial applications. Its design enhances automation processes and supports various operational modes, making it suitable for integration into complex machinery. With a robust construction and advanced control capabilities, this drive performs effectively in challenging environments.

Features & Benefits

• Improved user interaction through a green/yellow/red LED display

• Complies with several stringent safety standards for peace of mind

• Integrated mains filter minimises interference for stable operation

Applications

• Utilised for controlling industrial servo systems in precision tasks

• Suitable for needing adjustments in speed and position

• Employed in automated machinery for efficient functionality

• Capable of operating in ambient temperatures up to 50°C

How does temperature affect the drive's performance?

Operating the drive at temperatures exceeding 40°C necessitates a power reduction of 3% for each additional degree, to maintain optimal efficiency and safety.

What type of mounting does it support?

It can be mounted on a plate secured with screws, allowing adaptable installation options based on your setup.

What types of logic inputs are available?

It features multiple digital logic inputs with a working range from -3V to 30V, compatible with various sensors and control devices.

Is it possible to connect external braking resistors?

Yes, it accommodates external braking resistors with a nominal rating between 67 Ohm and 100 Ohm, providing flexibility in braking applications.

Festo 700 W Servo Drive, 230 V ac, 1 Phase, 5.6 A, Manual, Homing, Current Controller, Speed Controller, Positioning
