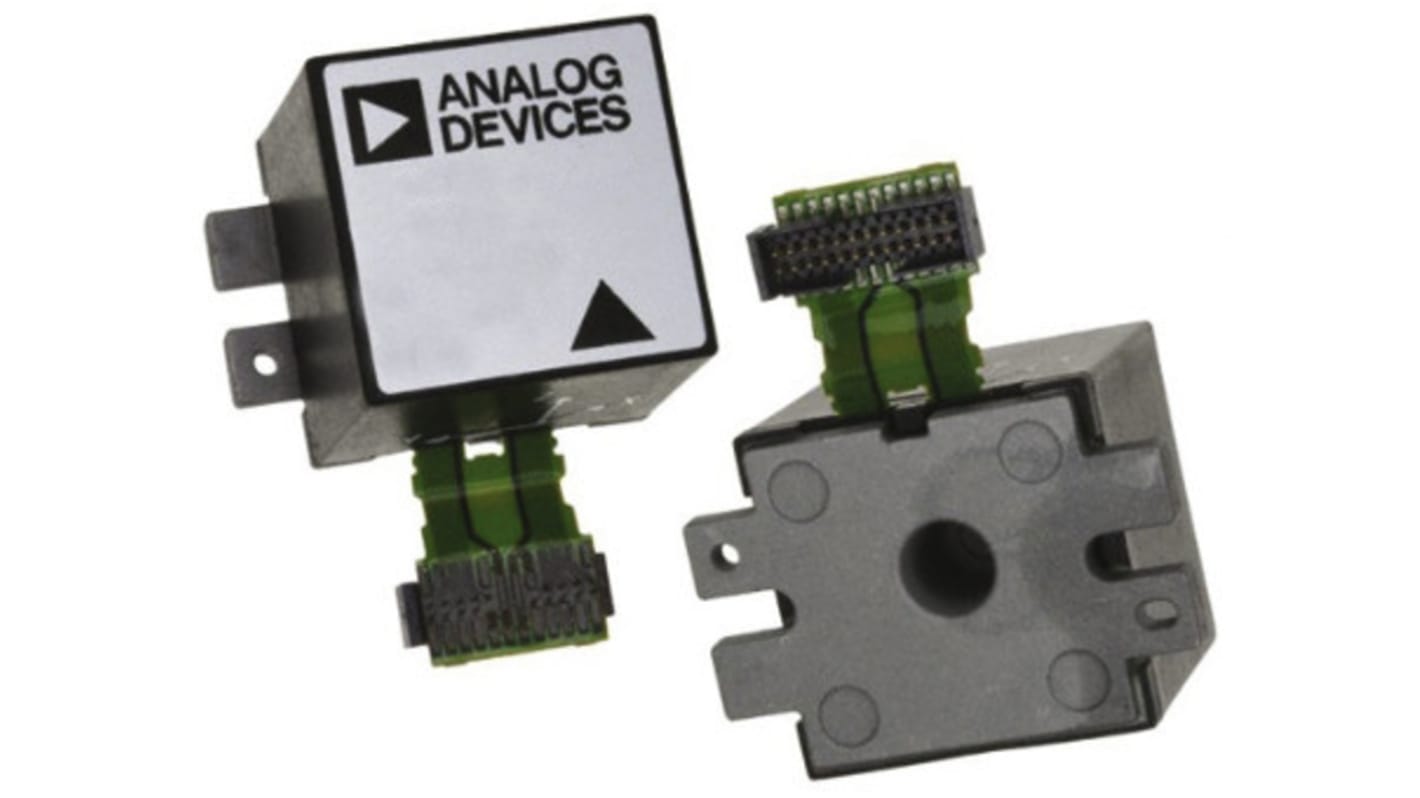

Analog Devices 3-Axis Screw Mount Sensor, ML, SPI, 24-Pin
- RS-artikelnummer:
- 877-6430
- Tillv. art.nr:
- ADIS16364BMLZ
- Tillverkare / varumärke:
- Analog Devices
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 877-6430
- Tillv. art.nr:
- ADIS16364BMLZ
- Tillverkare / varumärke:
- Analog Devices
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Analog Devices | |
| Sensor Type | Accelerometer, Gyroscope | |
| Number of Axis | 3 | |
| Technology | Digital | |
| Mounting Type | Screw Mount | |
| Interface Type | SPI | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Minimum Operating Supply Voltage | 4.75 V | |
| Package Type | ML | |
| Sensitivity | 0.0505 °/s/LSB, 1.01mg/LSB | |
| Pin Count | 24 | |
| Maximum Operating Temperature | +105 °C | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand Analog Devices | ||
Sensor Type Accelerometer, Gyroscope | ||
Number of Axis 3 | ||
Technology Digital | ||
Mounting Type Screw Mount | ||
Interface Type SPI | ||
Maximum Operating Supply Voltage 5.25 V | ||
Minimum Operating Supply Voltage 4.75 V | ||
Package Type ML | ||
Sensitivity 0.0505 °/s/LSB, 1.01mg/LSB | ||
Pin Count 24 | ||
Maximum Operating Temperature +105 °C | ||
Minimum Operating Temperature -40 °C | ||
RoHS-status: Undantagen
Inertial Measurement Units, Analog Devices
Inertia sensor ICs combine a number of sensors into one package to more accurately measure changes in velocity and orientation. Also known as measuring six degrees of freedom due to measuring both rotating and acceleration and can be used for dead reckoning and other positional calculations. They may also include accelerometers, gyroscopes, magnetometers, temperature sensors and inclinometers to compensate for drift.
Inertial Measurement Units (IMU), Analog Devices
