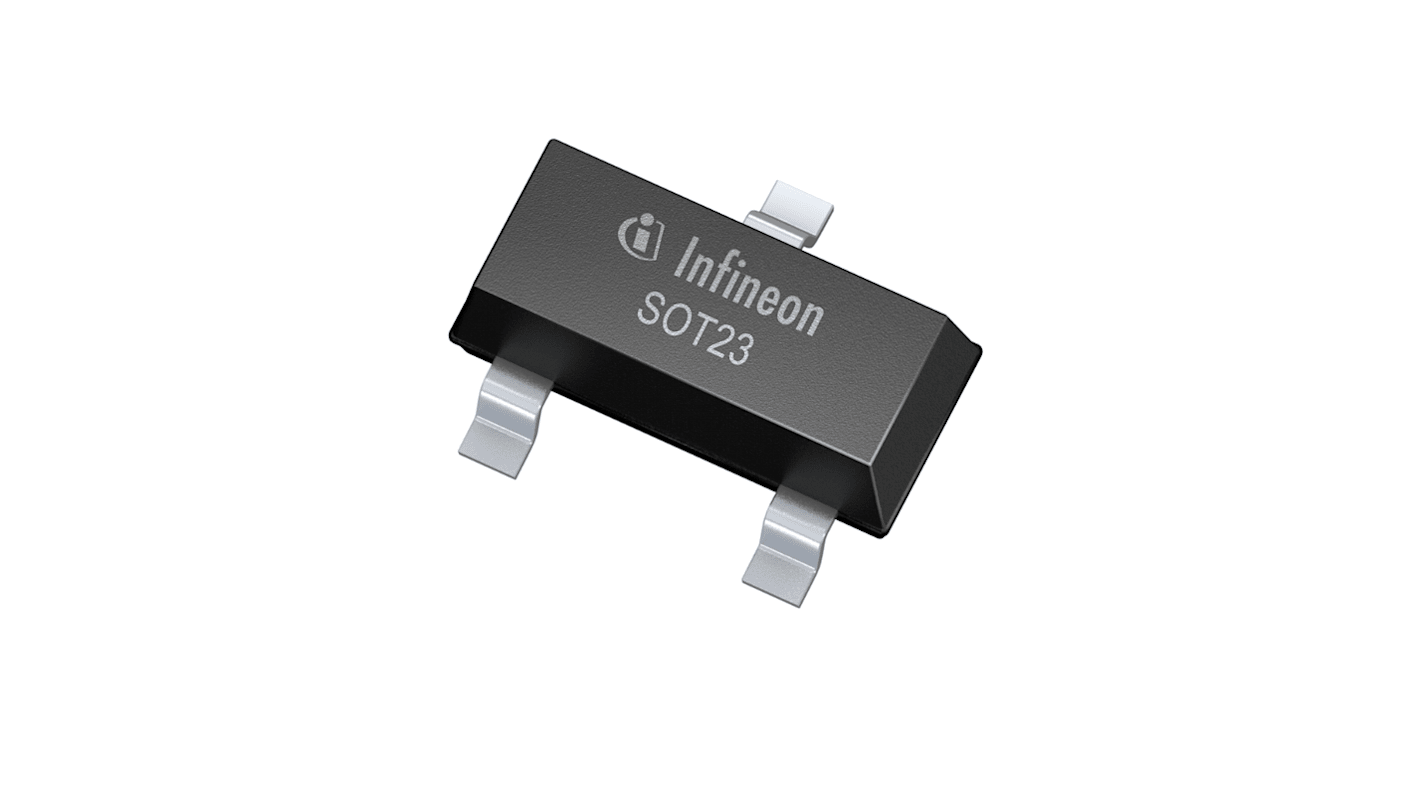

Infineon Surface Hall Effect Sensor 3 V 32 V, SOT-23, 3-Pin
- RS-artikelnummer:
- 223-8624
- Tillv. art.nr:
- TLI49611MXTMA1
- Tillverkare / varumärke:
- Infineon
Mängdrabatt möjlig
Antal (1 förpackning med 25 enheter)*
83,30 kr
(exkl. moms)
104,125 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 9 625 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 25 - 25 | 3,332 kr | 83,30 kr |
| 50 - 75 | 3,06 kr | 76,50 kr |
| 100 - 225 | 2,822 kr | 70,55 kr |
| 250 - 475 | 2,616 kr | 65,40 kr |
| 500 + | 2,549 kr | 63,73 kr |
*vägledande pris
- RS-artikelnummer:
- 223-8624
- Tillv. art.nr:
- TLI49611MXTMA1
- Tillverkare / varumärke:
- Infineon
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Infineon | |
| Sensor Type | Hall Effect | |
| Product Type | Hall Effect Sensor | |
| Mount Type | Surface | |
| Magnetic Type | Bipolar | |
| Minimum Supply Voltage | 3V | |
| Package Type | SOT-23 | |
| Maximum Supply Voltage | 32V | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 2mT | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 3 | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Width | 1.3 mm | |
| Length | 2.9mm | |
| Supply Current | 1.6mA | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Infineon | ||
Sensor Type Hall Effect | ||
Product Type Hall Effect Sensor | ||
Mount Type Surface | ||
Magnetic Type Bipolar | ||
Minimum Supply Voltage 3V | ||
Package Type SOT-23 | ||
Maximum Supply Voltage 32V | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 2mT | ||
Maximum Operating Temperature 125°C | ||
Pin Count 3 | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Width 1.3 mm | ||
Length 2.9mm | ||
Supply Current 1.6mA | ||
Automotive Standard No | ||
The Infineon TLI4961-1 series is an integrated hall effect designed specifically for highly accurate applications with superior supply voltage capability, and temperature stability of the magnetic thresholds.
Operation from unregulated power supply
Reverse polarity protection
Overvoltage capability up to 42 V without external resistor
Output overcurrent & over temperature protection
Active error compensation
High stability of magnetic thresholds
High ESD performance
