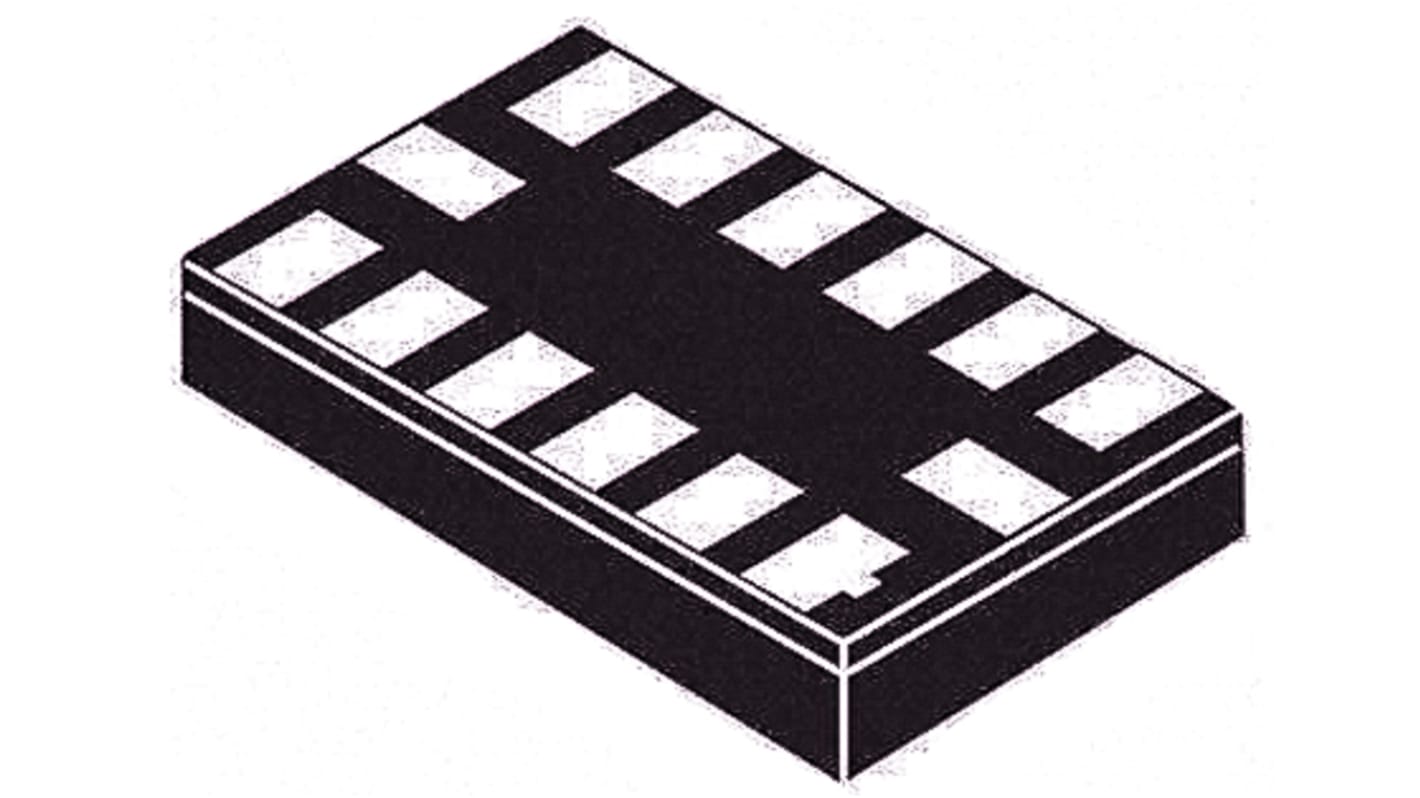

STMicroelectronics 3-Axis Surface Sensor 1.71 V 3.6 V, Serial-I2C, Serial-SPI, LGA, 14-Pin
- RS-artikelnummer:
- 162-3602
- Tillv. art.nr:
- ISM330DLCTR
- Tillverkare / varumärke:
- STMicroelectronics
Antal (1 rulle med 5000 enheter)*
305 865,00 kr
(exkl. moms)
382 330,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 21 december 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 5000 + | 61,173 kr | 305 865,00 kr |
*vägledande pris
- RS-artikelnummer:
- 162-3602
- Tillv. art.nr:
- ISM330DLCTR
- Tillverkare / varumärke:
- STMicroelectronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | STMicroelectronics | |
| Sensor Type | Accelerometer, Gyroscope | |
| Product Type | Sensor | |
| Number of Axis | 3 | |
| Technology | Digital, Analogue | |
| Mount Type | Surface | |
| Interface Type | Serial-I2C, Serial-SPI | |
| Maximum Frequency Response | 400kHz | |
| Minimum Frequency Response | 0kHz | |
| Minimum Supply Voltage | 1.71V | |
| Package Type | LGA | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 0.49mg/LSB | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.83mm | |
| Series | ISM330DLC | |
| Width | 3 mm | |
| Length | 2.5mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Supply Current | 0.75mA | |
| Välj alla | ||
|---|---|---|
Brand STMicroelectronics | ||
Sensor Type Accelerometer, Gyroscope | ||
Product Type Sensor | ||
Number of Axis 3 | ||
Technology Digital, Analogue | ||
Mount Type Surface | ||
Interface Type Serial-I2C, Serial-SPI | ||
Maximum Frequency Response 400kHz | ||
Minimum Frequency Response 0kHz | ||
Minimum Supply Voltage 1.71V | ||
Package Type LGA | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 0.49mg/LSB | ||
Pin Count 14 | ||
Maximum Operating Temperature 85°C | ||
Height 0.83mm | ||
Series ISM330DLC | ||
Width 3 mm | ||
Length 2.5mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Supply Current 0.75mA | ||
The ISM330DLC is a system-in-package featuring a high-performance 3D digital accelerometer and 3D digital gyroscope tailored for Industry 4.0 applications.ST’s family of MEMS sensor modules leverages the robust and mature manufacturing processes already used for the production of micromachined accelerometers and gyroscopes.The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are developed using CMOS technology that allows the design of a dedicated circuit which is trimmed to better match the characteristics of the sensing element.
3D accelerometer with selectable full scale
3D gyroscope with selectable full scale
Dedicated gyroscope output chain with low latency, low noise and dedicated low-pass filters
Embedded hard, soft ironing for external magnetic sensor corrections
Embedded temperature sensor
High shock survivability
