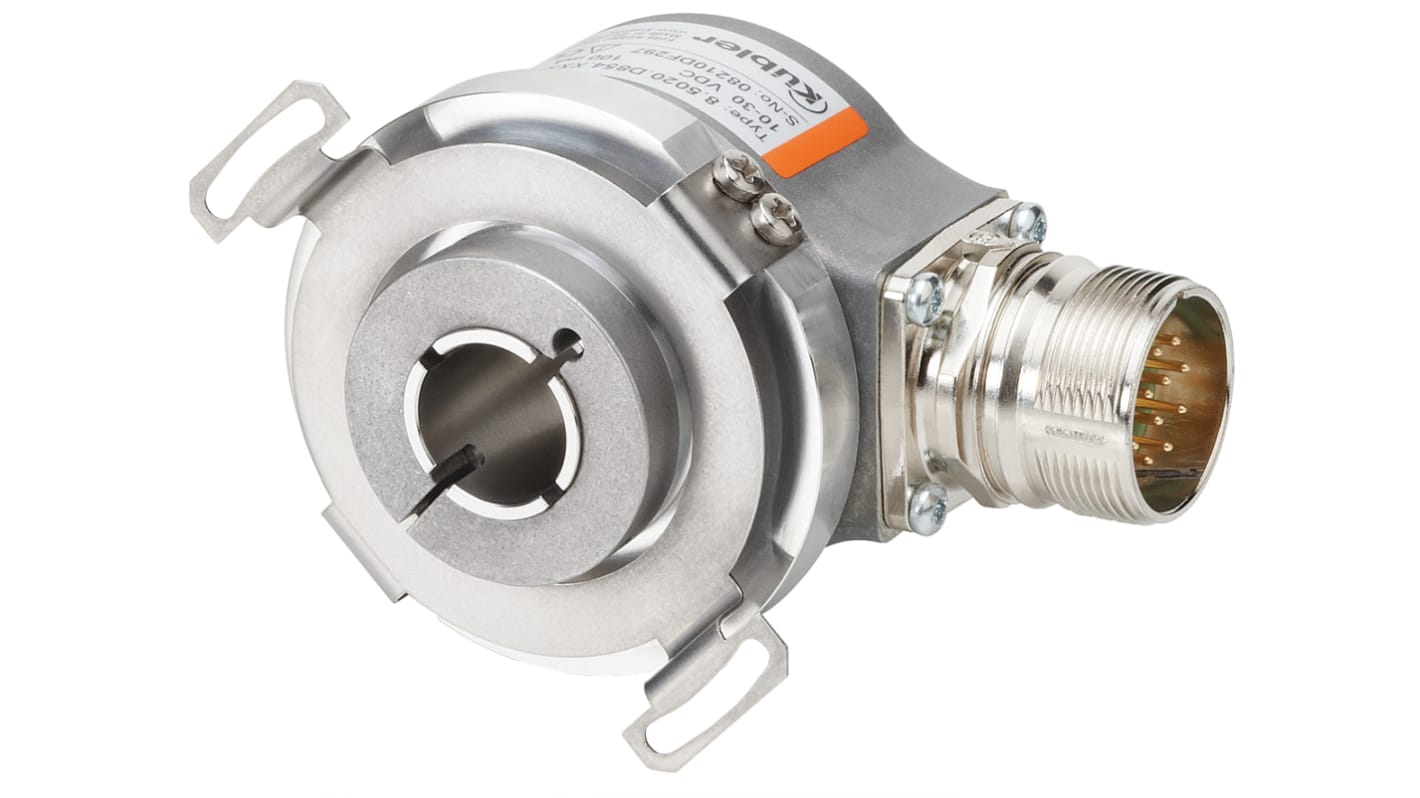

Kübler Incremental Incremental Encoder, 500 ppr, Push Pull Signal, Hollow Type, 12mm Shaft

RS-artikelnummer:: 860-2755
Tillv. art.nr:: 8.5020.2554.0500
Tillverkare / varumärke:: Kübler

Kübler Incremental Incremental Encoder, 500 ppr, Push Pull Signal, Hollow Type, 12mm Shaft

Denna bild representerar endast produktgruppen

2 I lager för avsändande samma dag

Nästa dag-leverans inte möjlig

Lagt till varukorgen

Pris (ex. moms) Varje

3 714,90 kr

(exkl. moms)

4 643,62 kr

(inkl. moms)

Enheter	Per unit
1 +	3 714,90 kr

RS-artikelnummer:: 860-2755
Tillv. art.nr:: 8.5020.2554.0500
Tillverkare / varumärke:: Kübler

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Sendix 5000 / 5020 (Shaft / Hollow Shaft)

Sendix 5000 and 5020 offer high resistance against vibration and installation errors. The rugged housing, high protection level of up to IP67, and a wide temperature range, make this encoder suitable for all applications.

Safety-Lock™ Design
High rotational speed
Shaft and hollow shaft versions
High shaft load capacity
Shock and vibration resistant
Magnetic field proof
Short-circuit proof
Optical sensor
Reverse polarity protection

Kubler

Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation

Specifikationer

Attribute	Value
Encoder Technology	Incremental
Pulses Per Revolution	500
Maximum Revolutions	12000rpm
Output Signal Type	Push Pull
Shaft Type	Hollow
Shaft Diameter	12mm
Supply Voltage	10 → 30 V dc
IP Rating	IP65
Overall Width	50.8mm
Overall Depth	45.1mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switching Frequency	300 kHz

RS-artikelnummer:: 860-2755
Tillv. art.nr:: 8.5020.2554.0500
Tillverkare / varumärke:: Kübler
