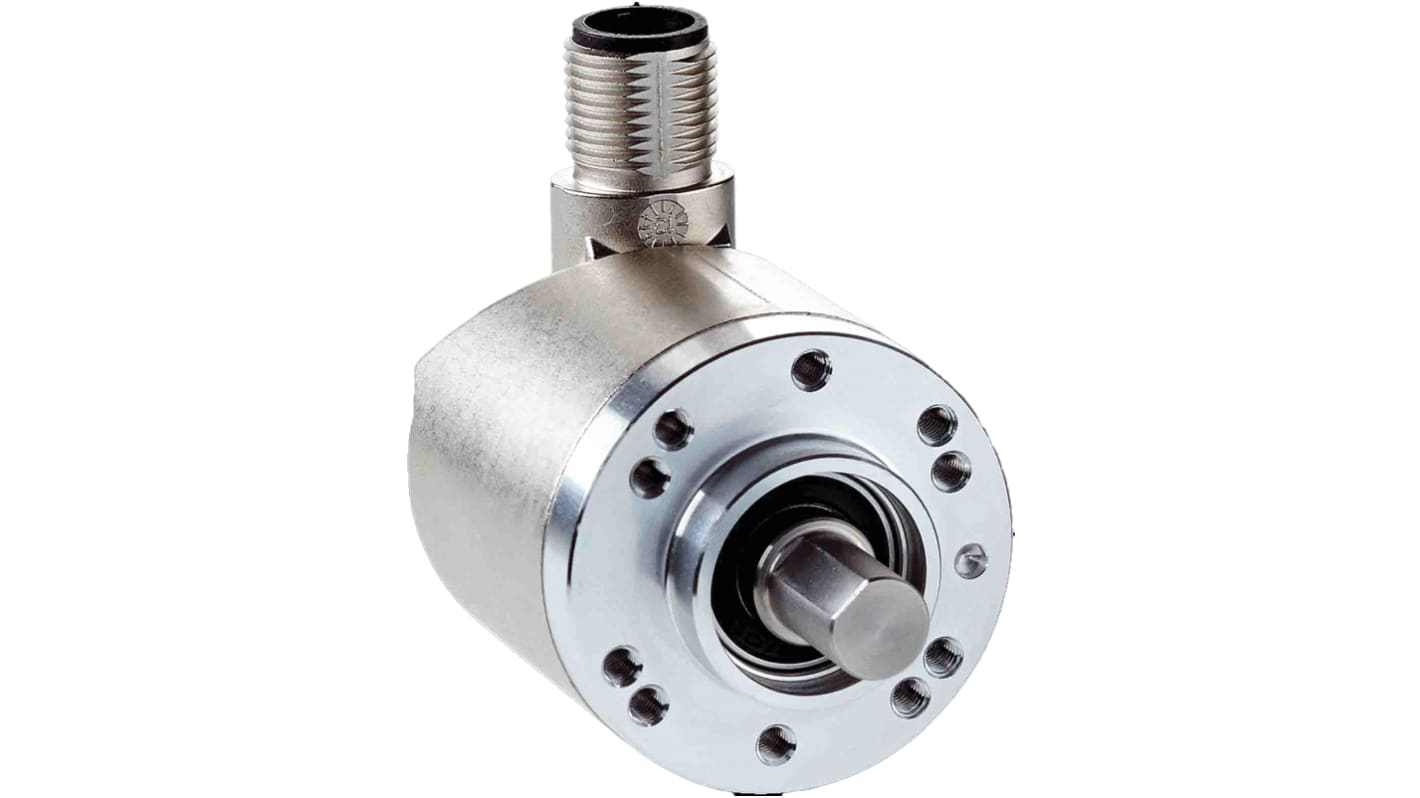

SICK Absolute Absolute Encoder, 1 → 4096 ppr, IO-Link Signal, Solid Type, 6mm Shaft

Se alla Motion Control Sensors

Antal (1 enhet)*

5 482,79 kr

(exkl. moms)

6 853,49 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 +5 482,79 kr

*vägledande pris

RS-artikelnummer:
201-3669
Tillv. art.nr:
AHM36B-S3QC012X12 / 1092014
Tillverkare / varumärke:
SICK
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

SICK

Encoder Technology

Absolute

Pulses Per Revolution

1 → 4096

Maximum Revolutions

4096rpm

Output Signal Type

IO-Link

Shaft Type

Solid

Shaft Diameter

6mm

Supply Voltage

18 → 30 V dc

Resolution

24 Bit

Steps Per Revolution

4096Steps

IP Rating

IP65

Interface

IO-Link

Overall Width

36mm

Overall Depth

43mm

COO (Country of Origin):
DE
This SICK Absolute encoder features an IO-Link interface. Providing both Speed and Position in the IO-Link process data this encoder is ideal for users who embrace IO-Link technology at the Sensor/Actuator level. The IO-Link communication protocol also enables this compact 36mm encoder to be used in higher level fieldbus systems when used in conjunction with an IO-Link Master supporting e.g. Profinet, Ethernet IP etc. This is a multiturn absolute encoder with programmable resolution 1-4096 steps/turn x up to 4096 turns. Preset, counting direction and Speed output settings can also be adjusted. Programming / adjustment is performed via the PLC and a function block or using the SICK SiLink Master 111-3703 + cable 200-9776. This specific encoder model has a 6mm solid shaft and the M12 connector is rotatable for optimal cable routing.

Supply voltage 18 to 30V DC
Cycle time is = 3.2 ms
Operating torque is < 0.5 Ncm
