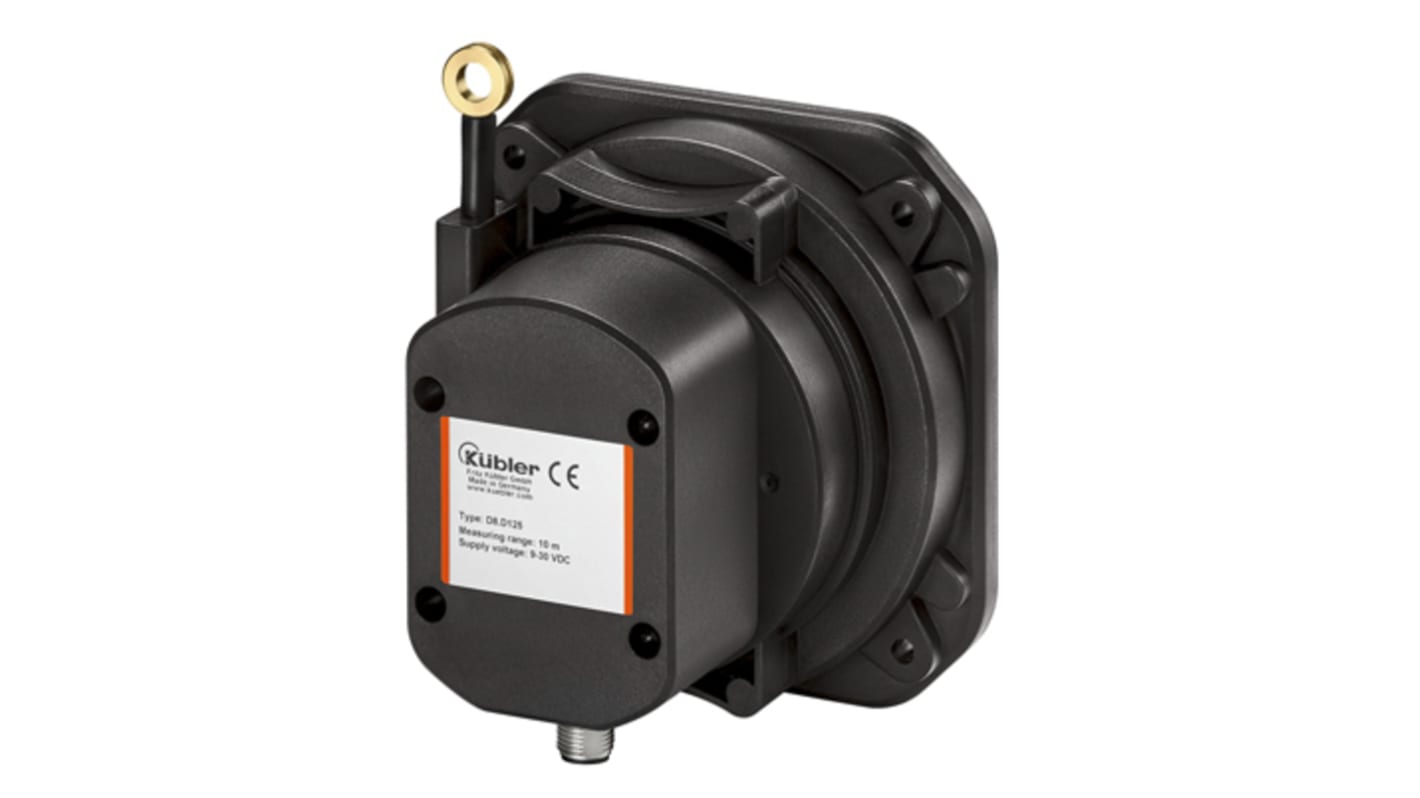

Kubler D125 Series Measuring Draw Wire Encoder, Analogue Signal

Se alla Motion Control Sensors

Antal (1 enhet)*

12 640,71 kr

(exkl. moms)

15 800,89 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 1 enhet(er) från den 08 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +12 640,71 kr

*vägledande pris

RS-artikelnummer:
179-7718
Tillv. art.nr:
D8.D125.1000.A441.2000
Tillverkare / varumärke:
Kubler
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Kubler

Encoder Technology

Measuring

Series

D125

Output Signal Type

Analogue

Supply Voltage

5 V dc

Resolution

12 Bit

IP Rating

IP67

Overall Height

124mm

Overall Width

118mm

Overall Depth

94mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Connection Type

5 Pin M12 Connector

COO (Country of Origin):
IT
Its robust design and its high protection level, the draw wire encoder D125 reliably provides accurate length measurement. Its simple and optimal integration in the application is a particular highlight of this product. Many additional options, ranging from the integrated inclinometer up to the relay output, are available. To increase plant availability, this draw wire encoder allows combining a redundant system in a very compact housing.

Measuring length 6 ... 10 m.
Integrated inclinometer.
Redundant sensors.
Different types of sensors (analog, CANopen).
Linearity up to ±0.5 % of the measuring range.
High protection level and wide temperature range from -40°C ... +85°C.
Advantages:
The suitable measuring length for every application.
Cost, space and installation work saving.
For even higher plant availability.
Simple selection and fast installation.
High accuracy at economic prices.
Reliability and long service life for outdoor applications.
