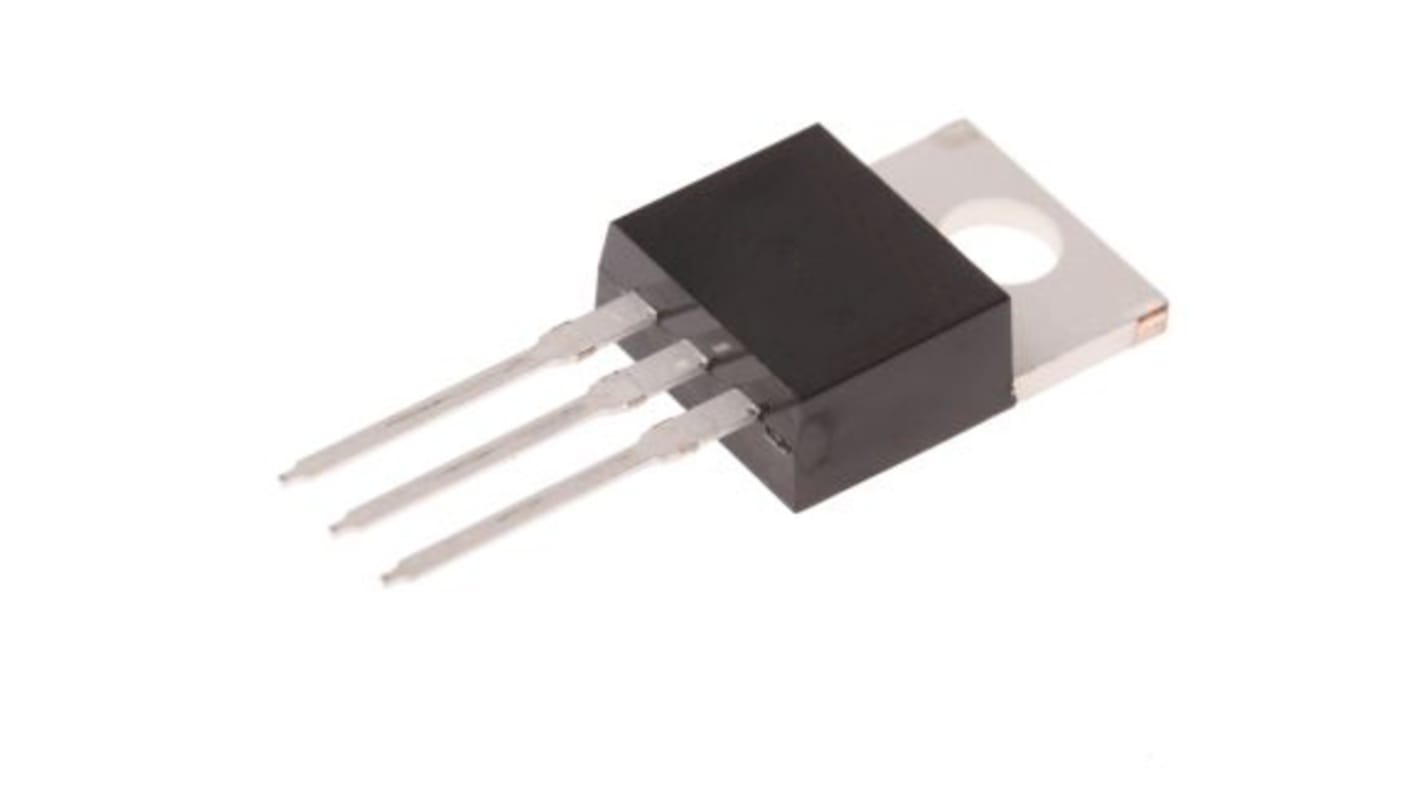

Vishay Type N-Channel MOSFET, 17 A, 200 V, 3-Pin TO-220 IRL640PBF
- RS-artikelnummer:
- 256-7327
- Tillv. art.nr:
- IRL640PBF
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 förpackning med 5 enheter)*
131,71 kr
(exkl. moms)
164,64 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 945 enhet(er) från den 29 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 - 5 | 26,342 kr | 131,71 kr |
| 10 - 20 | 23,61 kr | 118,05 kr |
| 25 - 95 | 23,14 kr | 115,70 kr |
| 100 - 495 | 19,062 kr | 95,31 kr |
| 500 + | 15,276 kr | 76,38 kr |
*vägledande pris
- RS-artikelnummer:
- 256-7327
- Tillv. art.nr:
- IRL640PBF
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 17A | |
| Maximum Drain Source Voltage Vds | 200V | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.028Ω | |
| Maximum Gate Source Voltage Vgs | ±10 V | |
| Maximum Power Dissipation Pd | 125W | |
| Typical Gate Charge Qg @ Vgs | 66nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 4.65mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Distrelec Product Id | 304-40-860 | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 17A | ||
Maximum Drain Source Voltage Vds 200V | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.028Ω | ||
Maximum Gate Source Voltage Vgs ±10 V | ||
Maximum Power Dissipation Pd 125W | ||
Typical Gate Charge Qg @ Vgs 66nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Height 4.65mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Distrelec Product Id 304-40-860 | ||
The Vishay Semiconductor third generation power mosfet provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Dynamic dV/dt rating
Repetitive avalanche rated
Logic-level gate drive
Fast switching
Ease of paralleling
Simple drive requirements
