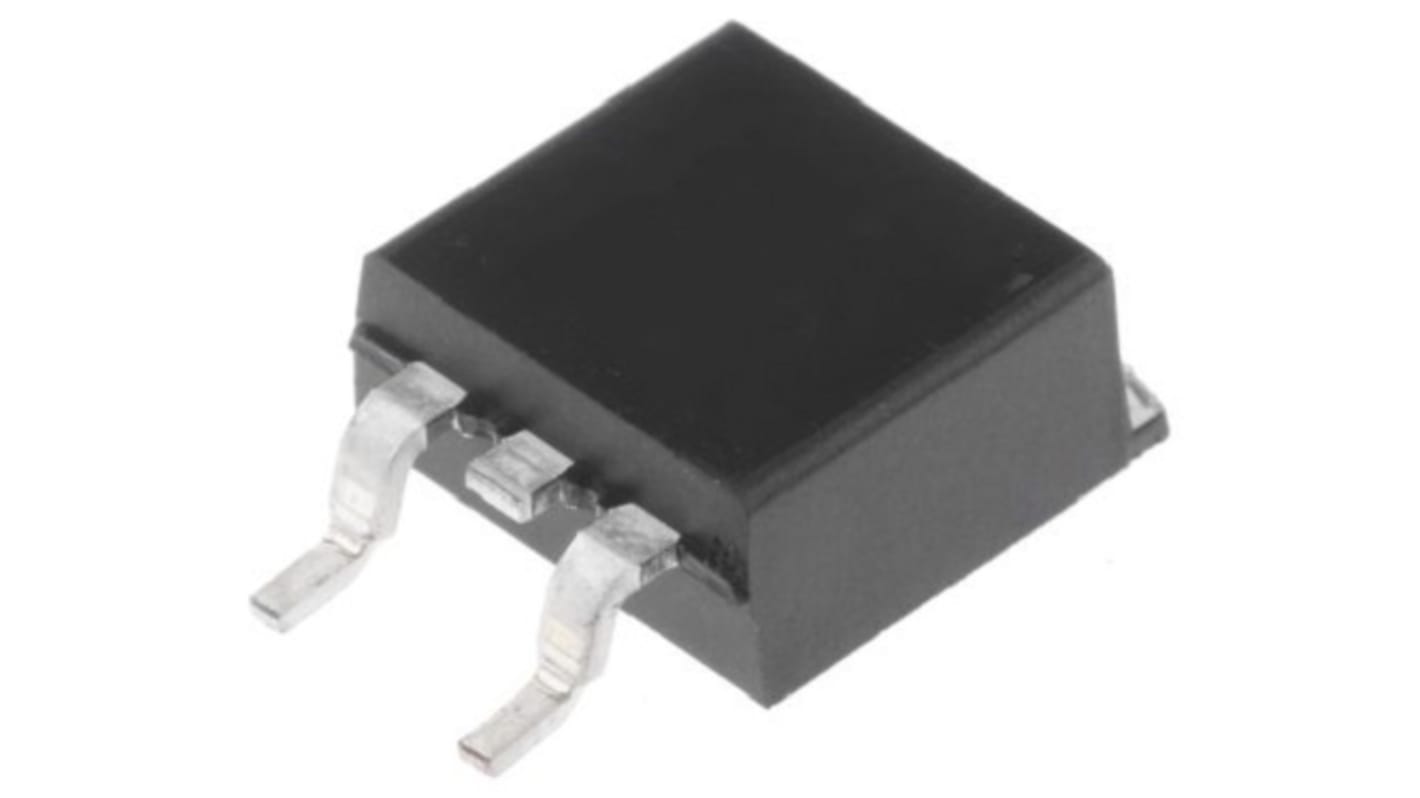

N-Channel MOSFET, 75.4 A, 150 V, 3-Pin D2PAK onsemi NTB011N15MC
- RS-artikelnummer:
- 230-9079
- Tillv. art.nr:
- NTB011N15MC
- Tillverkare / varumärke:
- onsemi
7168 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
46,19 kr
(exkl. moms)
57,74 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 8 | 46,19 kr | 92,38 kr |
| 10 - 98 | 41,475 kr | 82,95 kr |
| 100 - 248 | 33,435 kr | 66,87 kr |
| 250 - 498 | 32,325 kr | 64,65 kr |
| 500 + | 27,45 kr | 54,90 kr |
- RS-artikelnummer:
- 230-9079
- Tillv. art.nr:
- NTB011N15MC
- Tillverkare / varumärke:
- onsemi
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The ON Semiconductor MOSFET - N-channel shielded gate power trench MOSFET which has drain to source voltage of 150 V.
Optimized Switching performance
Max RDS(on) = 10.9 mΩ at VGS = 10 V, ID = 75.4 A
Industry’s Lowest Qrr and softest Body-Diode for superior low noise switching
50% Lower Qrr than other MOSFET Suppliers
High efficiency with lower switching spike and EMI
Lowers Switching Noise/EMI
Improved switching FOM particularly Qgd
100% UIL Tested
No need or less snubber
Max RDS(on) = 10.9 mΩ at VGS = 10 V, ID = 75.4 A
Industry’s Lowest Qrr and softest Body-Diode for superior low noise switching
50% Lower Qrr than other MOSFET Suppliers
High efficiency with lower switching spike and EMI
Lowers Switching Noise/EMI
Improved switching FOM particularly Qgd
100% UIL Tested
No need or less snubber
Specifikationer
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 75.4 A |
| Maximum Drain Source Voltage | 150 V |
| Series | NTB01 |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 0.0109 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Transistor Material | Si |
| Number of Elements per Chip | 1 |
