RS PRO Bevel Gear, 16mm Bore, 30 Teeth, 2.5 Module

Se alla Mitre & Bevel Gears
Mängdrabatt möjlig

Antal (1 enhet)*

244,45 kr

(exkl. moms)

305,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 22 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4244,45 kr
5 - 9239,46 kr
10 +234,64 kr

*vägledande pris

RS-artikelnummer:
182-8000
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Bore

16mm

Module

2.5

Gear Type

Bevel

Number of Teeth

30

Nominal Gear Ratio

2:1

Pitch

2.5mm

Pressure Angle

20°

COO (Country of Origin):
DE

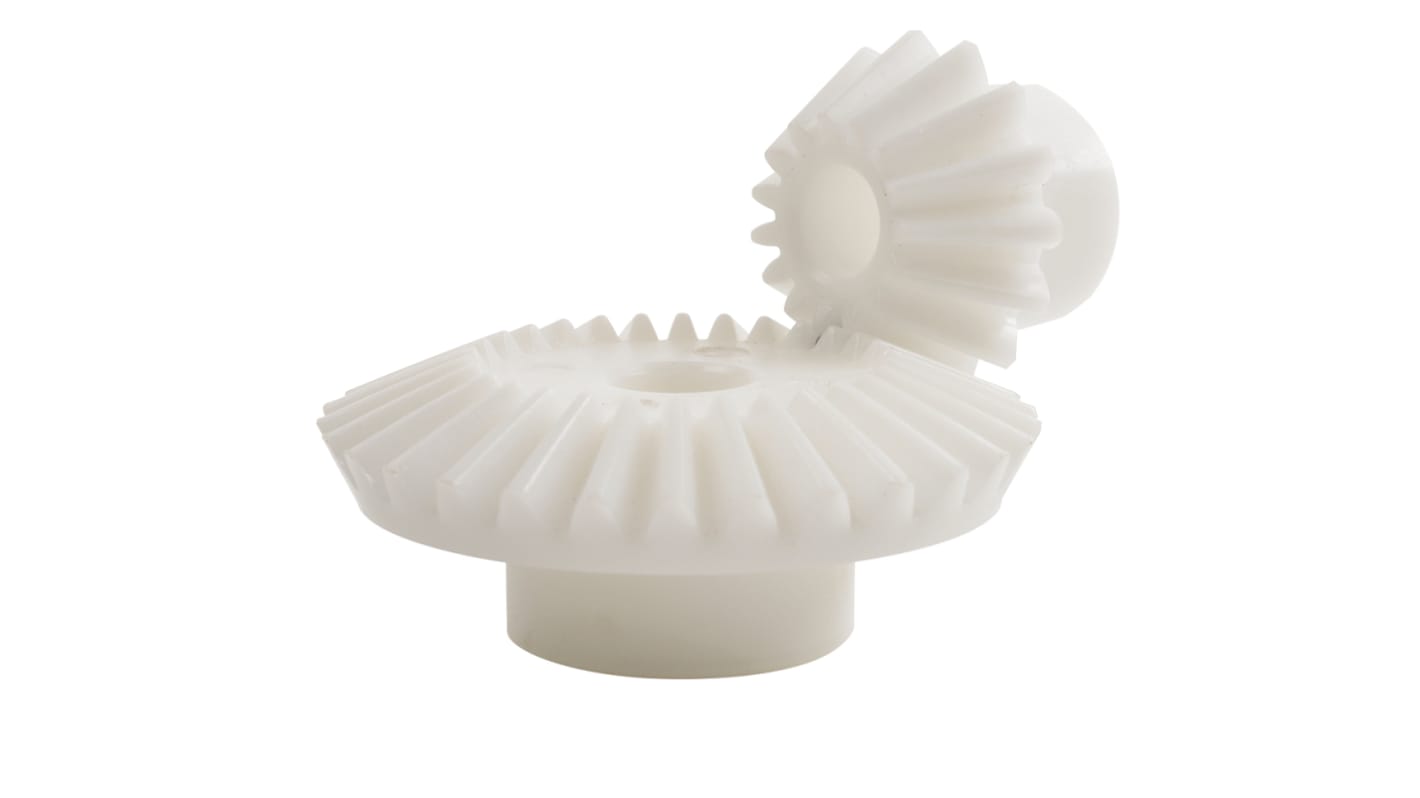

RS PRO Hostaform Bevel Gear


The RS PRO 2:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 2.5 and 30 teeth.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.

Features and Benefits


• Standard tolerances, unless otherwise stated 0.25mm
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20 pressure angle

Certifications


• EN certified
• DIN 3964
• DIN 3967
• DIN 3971
