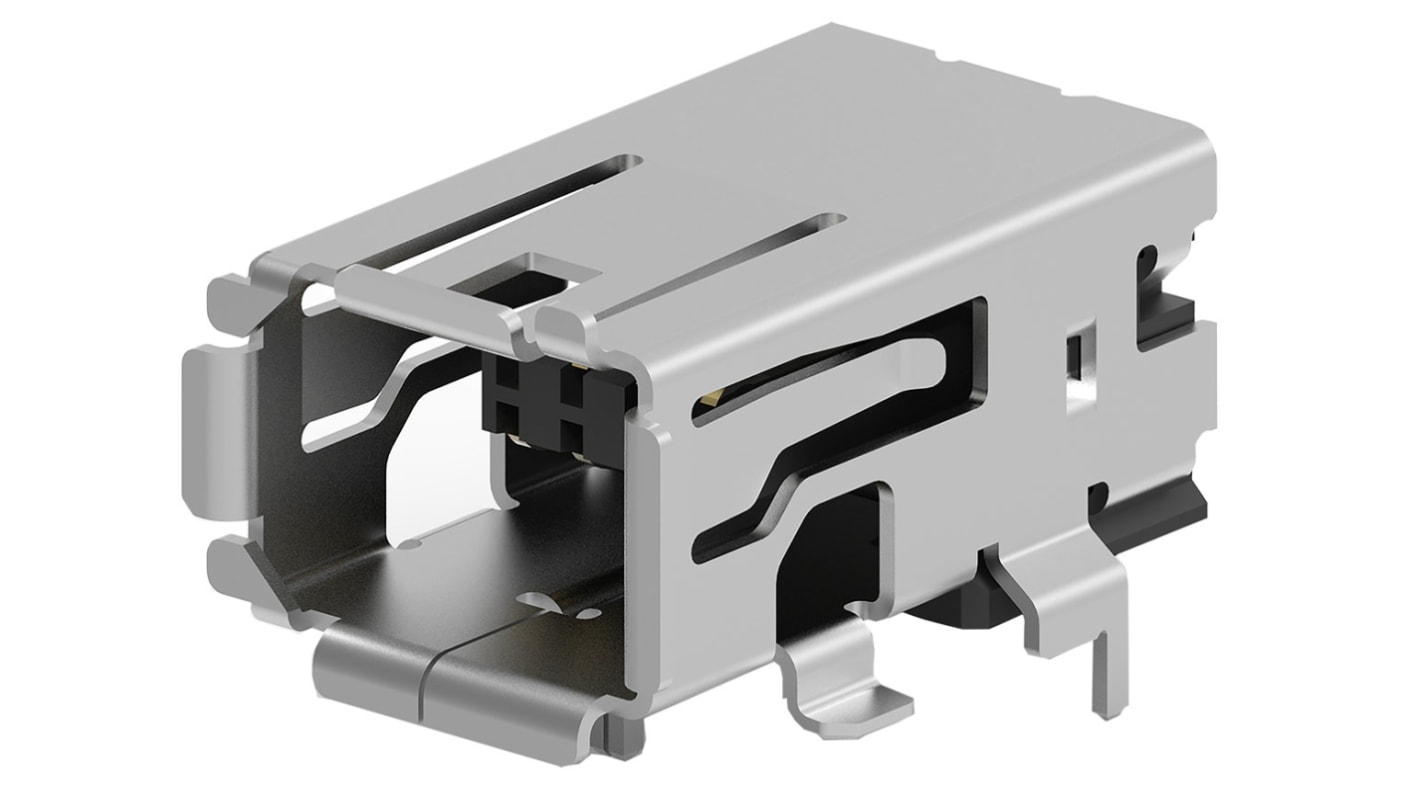

TE Connectivity Surface Mount Right Angle Mini I/O Connector Female, 8 Way, Shielded

RS-artikelnummer:: 161-8685
Tillv. art.nr:: 2294415-2
Tillverkare / varumärke:: TE Connectivity

TE Connectivity Surface Mount Right Angle Mini I/O Connector Female, 8 Way, Shielded

Tillfälligt slut i lager – restorder för leverans 2024-10-07

Lagt till varukorgen

Pris (ex. moms) Var (i en bricka med 100)

41,203 kr

(exkl. moms)

51,504 kr

(inkl. moms)

Enheter	Per unit	Per Tray*
100 +	41,203 kr	4 120,30 kr

RS-artikelnummer:: 161-8685
Tillv. art.nr:: 2294415-2
Tillverkare / varumärke:: TE Connectivity

Datablad

Mini I/O type II PCB header drawing

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

TE Connectivity Mini I/O Type I & Type II PCB Mount Headers

From TE Connectivity, a range of Mini I/O PCB mount side entry headers. The compact connectors are one-quarter the size of conventional RJ45 providing a 75% space saving solution freeing valuable board real estate. Designed with a two-point contact system the connectors unique locking feature ensures secure mating and prevents accidental unplugging in high vibration applications reducing valuable downtime. The Mini I/O connectors in this range are offered in both Type I and Type II profiles.

Features and Benefits

Small and compact
One-quarter the size of conventional RJ45
Vibration resistant
Shielded
Reliable connection, two points of contact

Applications

PLC’S
Motion and Drives
Robotics
Industrial Communications

TE Connectivity Industrial Mini I/O

Specifikationer

Attribute	Value
Connector Type	Jack
Gender	Female
Number of Ways	8
Mounting Type	Surface Mount
Orientation	Right Angle
Number of Ports	1
IP Rating	IP20, IP30
Shielded/Unshielded	Shielded
Termination Method	Solder
Housing Material	Thermoplastic
Contact Material	Gold
Colour	Black
Height	7.36mm
Width	9.81mm
Depth	14mm
