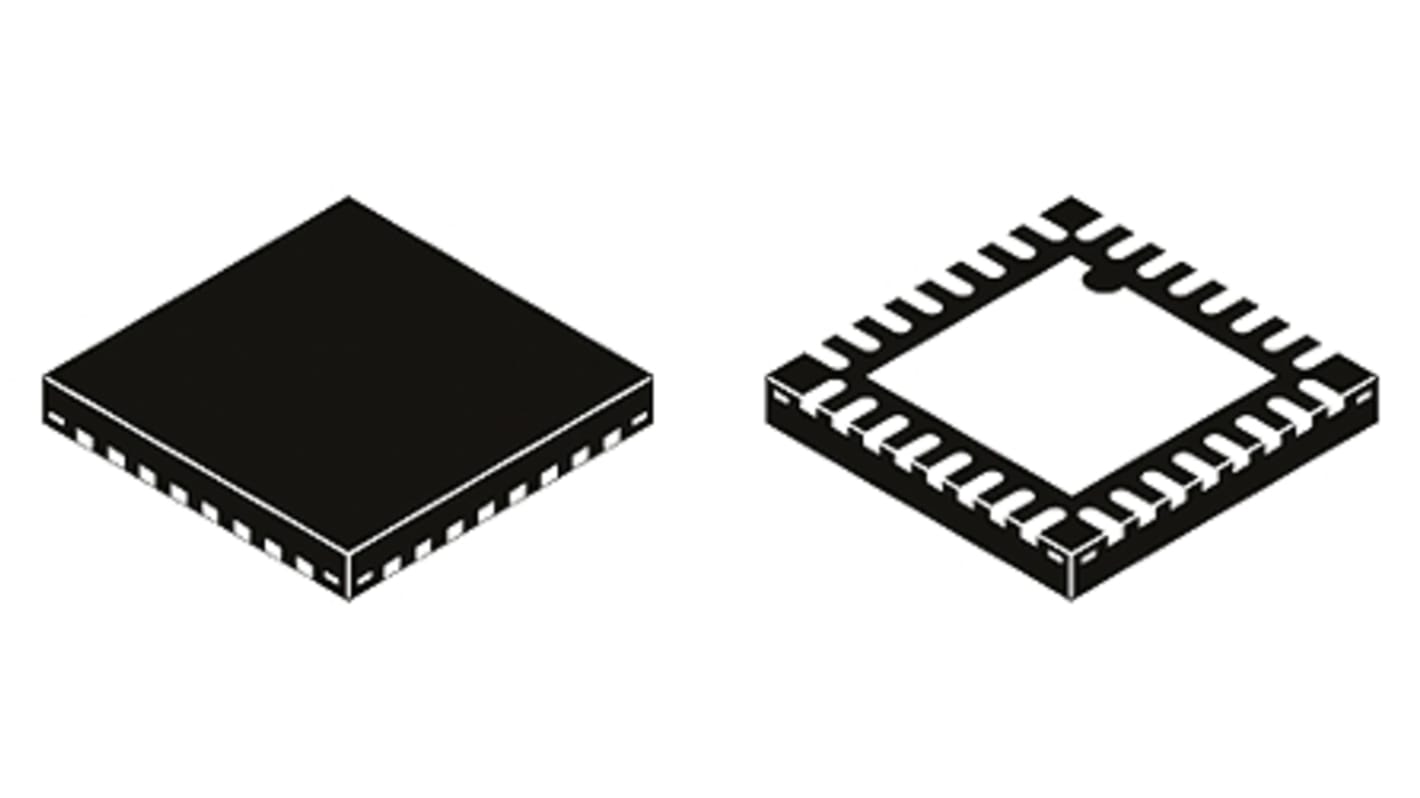

NXP MK20DN128VFM5, 32bit ARM Cortex M4 MCU, 50MHz, 128 kB Flash, 32-Pin QFN

  • RS-artikelnummer 818-1227
  • Tillv. art.nr MK20DN128VFM5
  • Tillverkare / varumärke NXP
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Kinetis K2x Series Microcontrollers

The Kinetis K2x MCU family is pin-peripheral and software-compatible with many of the Kinetis K series MCU families, offering full and high-speed USB 2.0 On-The-Go (OTG), in addition to other features like device charge detect capability and USB crystal-less functionality. These devices offer various levels of integration, with a rich suite of analogue, communication, timing and control peripherals. Kinetis K2x Microcontrollers are further optimized for performance with industry-leading power consumption and offer more streamlined integration for further BOM cost reductions. Devices start from 32 KB of flash in 5 x 5 mm 32-pin QFN packages extending up to 1 MB in a 144-pin MAPBGA package.

Note

NXP is a trademark of NXP B.V.

The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.

Specifikationer
Attribute Value
Family Name Kinetis K2x
Package Type QFN
Mounting Type Surface Mount
Pin Count 32
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 50MHz
RAM Size 16 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 1
Number of SPI Channels 1
Typical Operating Supply Voltage 1.71 → 3.6 V
Number of Timers 4
Number of ADC Units 1
Width 5mm
Pulse Width Modulation 1
Length 5mm
Dimensions 5 x 5 x 0.9mm
Instruction Set Architecture RISC
Number of I2C Channels 1
Height 0.9mm
Maximum Operating Temperature +105 °C
Number of UART Channels 2
ADCs 1 x 16-bit
Program Memory Type Flash
Minimum Operating Temperature -40 °C
Timers 1 x 16 bit
ADC Resolution 16
Timer Resolution 16bit
